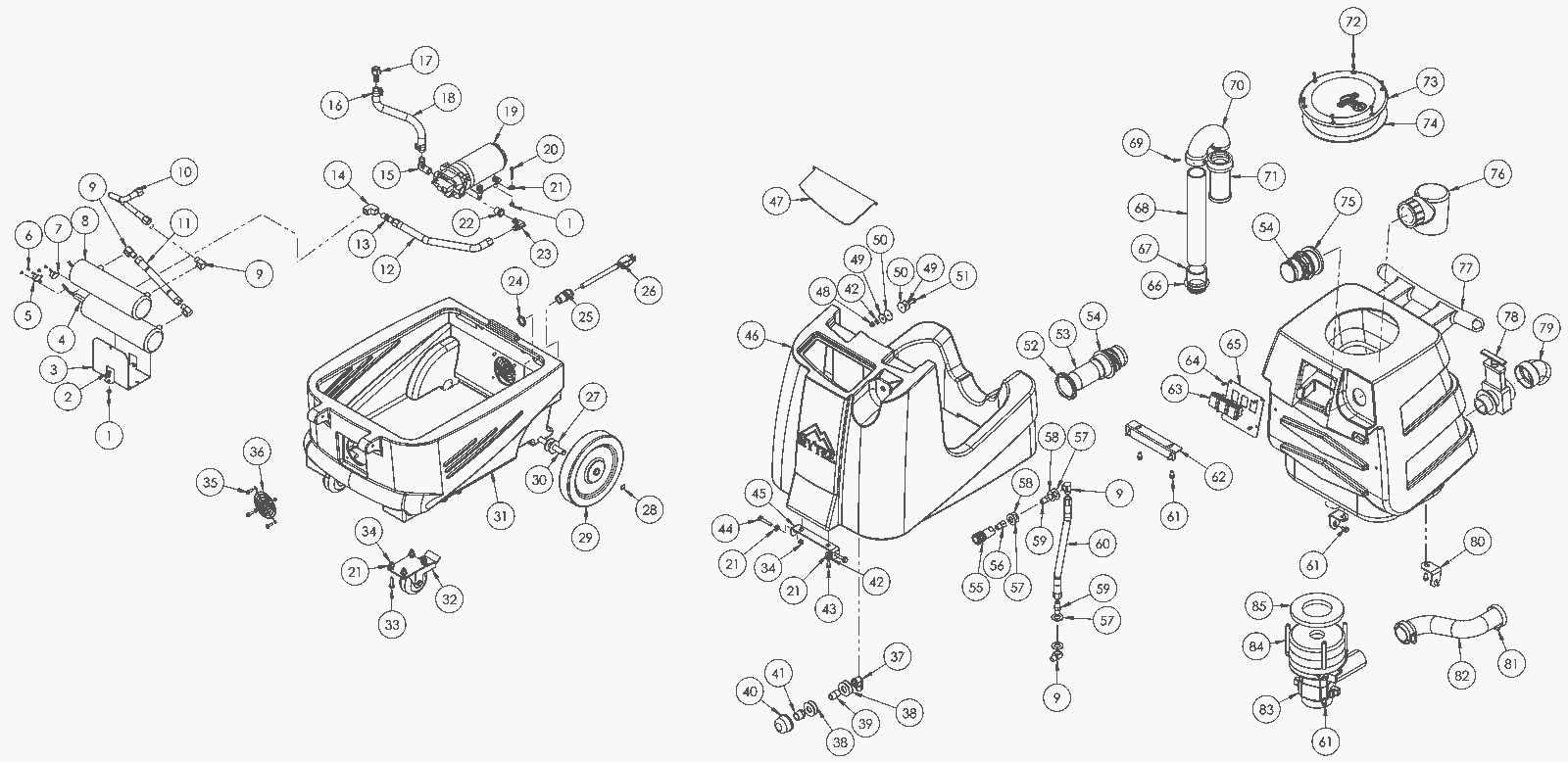

Entire Assembly

#PartDescription ReqNotesAvailability
1 231-2866 Nut 6
2 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 4
3 231-0037 Dual heater mounting bracket 1
4 231-0044 Heater rod 2
5 231-0031 Thermostat 310 2
6 231-2867 Screw 6-18 x 3/16 10
7 231-0032 Thermostat 200 2
8 231-0045 Aluminum casting heater 2
9 231-0033 90 degree brass elbow 5
10 231-4088 28 inch solution hose 1
11 231-9177 Heater plumbing conversion kit 1
12 231-2870 10 inch solution hose 1
13 231-0034 Brass check valve 1
14 231-2869 90 degree elbow 1
15 231-2873 90 degree elbow with 1/2 barb 1
16 231-4040 Hose clamp 4
17 231-2877 1/2 inch brass adaptor 1
18 231-4124 Solution hose 1
19 231-0002 Pump motor 1
20 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 4
21 231-4005 Washer 16
22 231-0234 Spray nozzle 1
23 231-4041 90 degree elbow 1
24 231-2881 Nut 1/2 1
25 231-0007 Strain relief fitting 1
26 231-0043 25 foot power cord 1
27 231-2882 Washer 1/2 4
28 231-2884 C-clip 2
29 231-2842 Wheel (OBSOLETE) 2
30 231-2883 Axle 1
31 231-2880 Base 1
32 231-0063 3 inch locking caster 2
33 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 8
34 999-0152 Nut 1/4-20 nylon insert lock zinc plated 10
35 231-4039 Screw 8
36 231-2878 Fan guard 2
37 231-2893 90 degree street elbow 1
38 231-2891 Washer 1 1/16 4
39 231-2892 Brass nipple 1
40 231-2841 Strainer 1
41 231-2890 Bushing 1
42 231-2886 Washer 1/4 4
43 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 2
44 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
45 231-2889 Front hinge bracket 1
46 231-2885 Solution tank 1
47 231-0041 Solution tank lid (OBSOLETE) 1
48 999-0609 Nut 1/4-20 hex stainless steel 2
49 231-2887 Washer 1/4 x 1 4
50 231-2888 Washer 3/16 4
51 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 2
52 231-4123 Nut 2 inch NPT 1
53 231-2897 2 inch coupler 1
54 231-2898 2 inch male starter vacuum hose connector 2
55 231-0066 1/4 inch female brass quick disconnect 1
56 231-2894 Brass adapter 1
57 231-2895 Washer 4
58 231-4066 Washer (OBSOLETE) 2
59 231-2896 1/4 hex nipple 2
60 231-2829 14.5 inch hose 1
61 231-2899 Bolt 1/4-20 x 1/2 serrated 11
62 231-2900 Rear bracket 1
63 231-0014 2 position rocker switch 3
64 231-2901 Screw 8-32 x 3/8 alloy 4
65 231-0047 Switch plate (OBSOLETE) 1
66 231-2903 Nut 1 1/2 1
67 231-2904 1 1/2 inch PVC adapter 1
68 231-0232 1 1/2 inch pipe 1
69 182-2225 Screw #8 x 1/2mm 3
70 231-0065 Elbow for float assembly (OBSOLETE) 1
71a 173-5336 Float cage assembly 1
71b 991-5136 Shut-off float 1 (NON-OEM)
72 231-2879 Screw 8-15 x 5/8 6
73 231-0049 7 inch vac tank lid (clear) 1
74 231-0038 7 inch vacuum lid gasket 1
75 231-4049 Gasket (OBSOLETE) 1
76 231-2907 2 inch inlet assembly 1
77 231-2902 Vacuum tank (OBSOLETE) 1
78 231-0021 Drain valve 1
79 231-0046 45° drain spout 1
80 231-2909 L bracket 2
81 231-2908 2 1/4 inch hose clamp 2
82 231-4125 Vacuum hose 1
83 231-0060 120V 3 stage vacuum motor 1
84 231-0233 Vacuum motor support 3
85 231-0004 Vac motor gasket 1
N/S 231-0055 12 inch collapsible wand 1
N/S 231-0058 15 foot hose 1
N/S 231-4114 Piglet filters 1
N/S 237-0013 2 inch female reducer hose cuff 1
N/S 231-4038 Velcro strap (OBSOLETE) 5
N/S 231-4054 Hose hanger 1
N/S 231-9052 Stop sign 1
