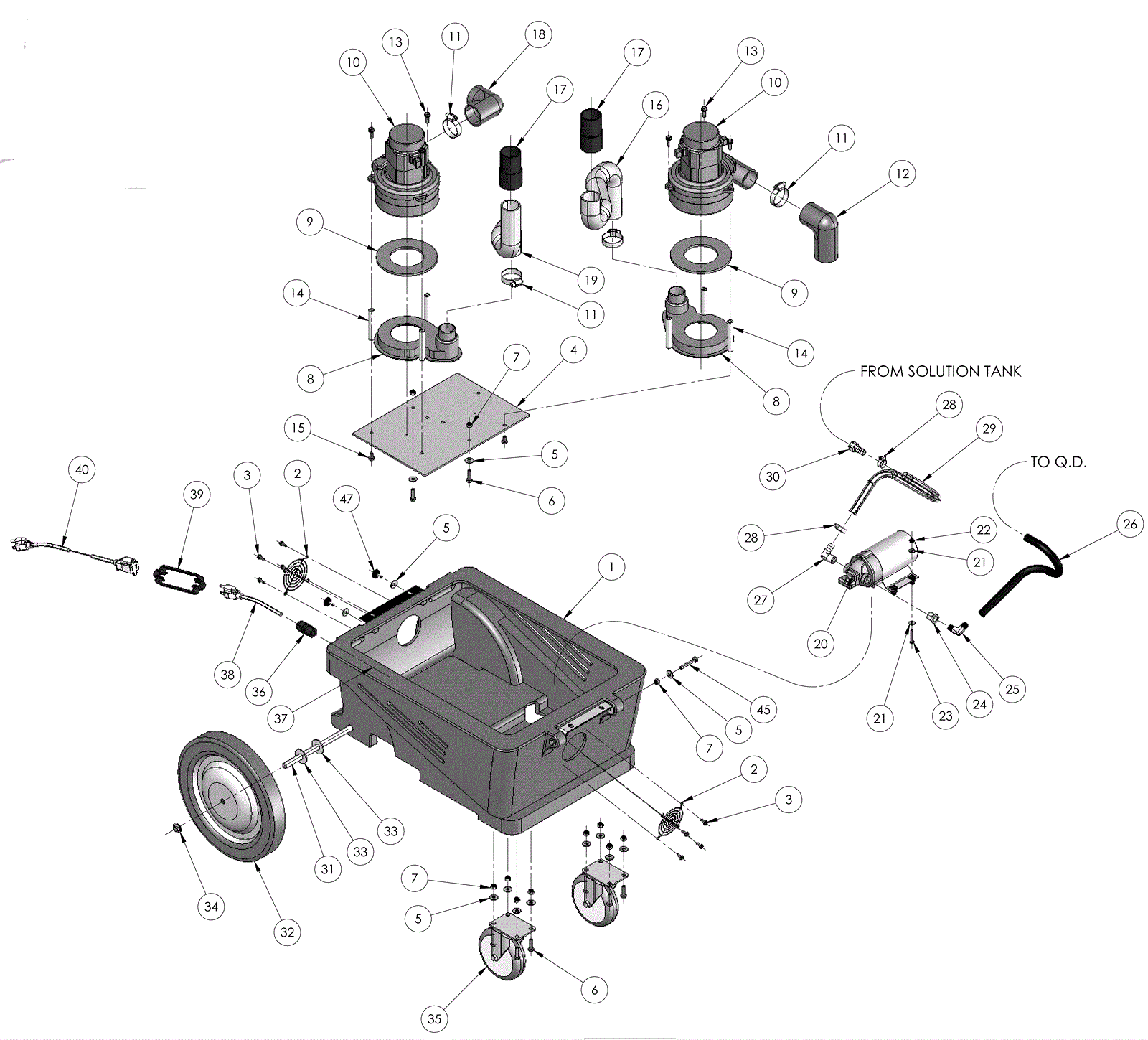

SPEEDSTAR 1000 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 231-4050 Base $183.70 1 usually ships 3-16 days
2 231-2878 Fan guard $5.21 2 usually ships 3-16 days
3 231-4061 Screw M10-32 hex head (OBSOLETE) Call for price 8 usually ships 3-16 days
4 231-4006 Dual manifold plate $24.43 1 usually ships 3-16 days
5 231-4005 Washer $1.74 16 usually ships 3-16 days
6 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 10 ships same day
7 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 12 ships same day
8 231-2918 Manifold $12.80 2 usually ships 3-16 days
9 231-0004 Vac motor gasket $12.98 2 usually ships 3-16 days
10 231-0060 120V 3 stage vacuum motor $204.60 2 usually ships 3-16 days
11 231-2908 2 1/4 inch hose clamp $2.64 4 usually ships 3-16 days
12 231-4045 Exhaust boot $7.24 1 usually ships 3-16 days
13 231-4001 1/4-20 X 3/4 inch bolt $1.74 6 usually ships 3-16 days
14 231-4020 Vacuum support $5.76 6 usually ships 3-16 days
15 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 6 ships same day
16 231-4051 Vacuum hose $9.32 1 (Speedster1) usually ships 3-16 days
17 231-4044 Hose cuff $8.66 2 usually ships 3-16 days
18 231-4045 Exhaust boot $7.24 1 (Modified) usually ships 3-16 days
19 231-4051 Vacuum hose $9.32 1 (Speedster2) usually ships 3-16 days
20 231-0002 Pump motor $245.30 1 usually ships 3-16 days
21 999-0998 Washer #10 flat stainless steel $0.99 12 ships same day
22 231-2866 Nut $1.74 2 usually ships 3-16 days
23 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
24 231-0234 Spray nozzle $5.59 1 usually ships 3-16 days
25 231-4041 90 degree elbow $7.24 1 usually ships 3-16 days
26 231-2870 10 inch solution hose $53.33 1 usually ships 3-16 days
27 231-2873 90 degree elbow with 1/2 barb $13.78 1 usually ships 3-16 days
28 231-4040 Hose clamp $3.43 2 usually ships 3-16 days
29 231-2835 Solution hose (sold by the foot) $13.00 1 usually ships 3-16 days
30 231-2877 1/2 inch brass adaptor $6.09 1 usually ships 3-16 days
31 231-4080 Axle $26.65 1 usually ships 3-16 days
32 231-0018 Wheel 12 inch (OBSOLETE) $50.14 2 usually ships 3-16 days
33 231-2882 Washer 1/2 $1.74 4 usually ships 3-16 days
34 231-0019 Axle cap $2.19 2 usually ships 3-16 days
35 231-0061 5 inch caster (OBSOLETE) $27.69 2 usually ships 3-16 days
36 231-0007 Strain relief fitting $5.08 1 usually ships 3-16 days
37 231-2881 Nut 1/2 $3.43 1 usually ships 3-16 days
38 231-0062 12/3 pigtail power cord 30 inch (OBSOLETE) $13.72 1 usually ships 3-16 days
39 231-4060 Cord connector (OBSOLETE) Call for price 1 usually ships 3-16 days
40 231-4052 Power cord $116.90 1 usually ships 3-16 days
45 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel $0.99 2 ships same day
47 231-4059 Thumb screw (black) $4.70 2 usually ships 3-16 days
