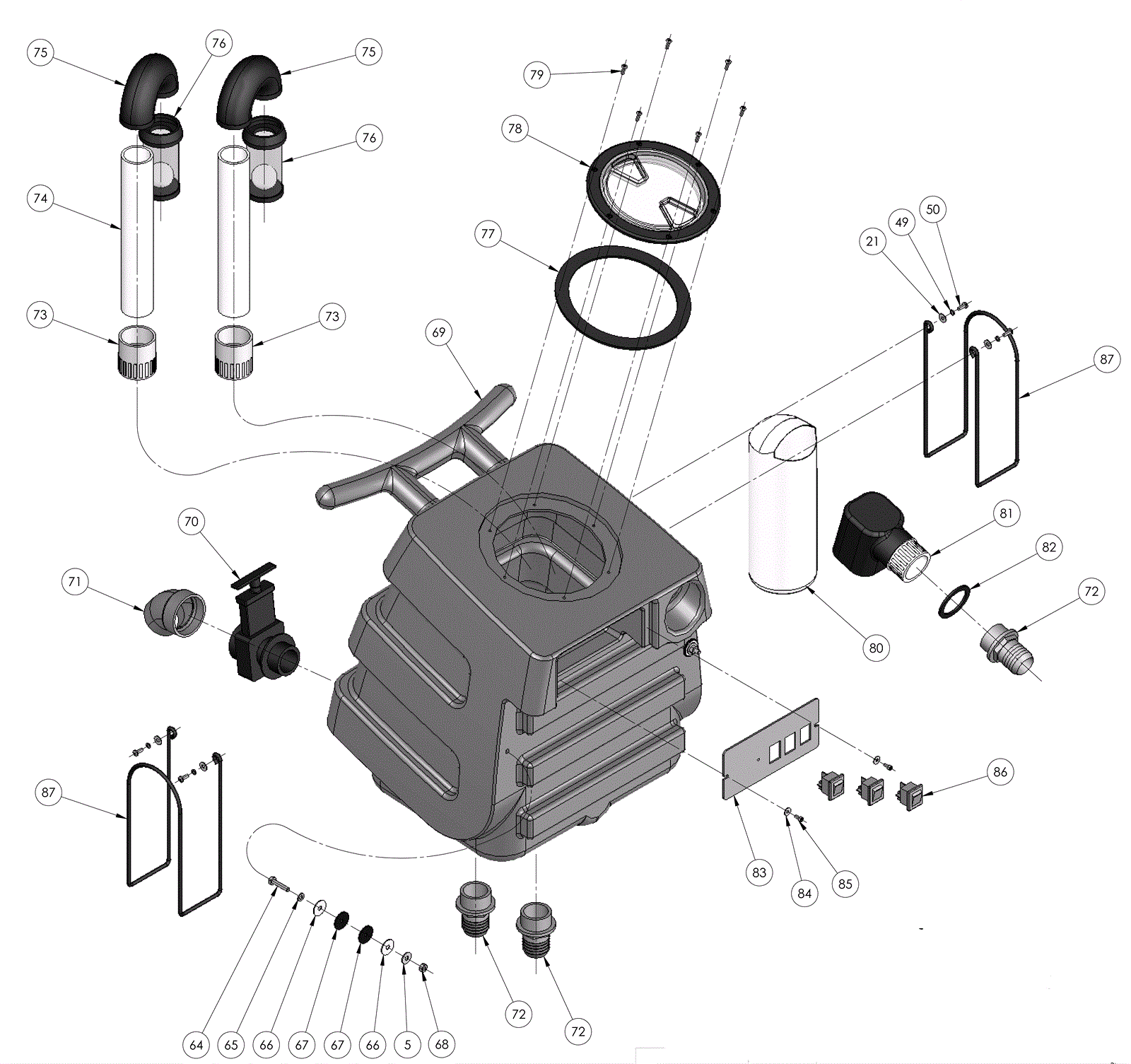

| # | Part | Description |
Req | Notes | Availability |
|---|
5 |
231-4005
|
Washer |
16 |
|
|
49 |
231-4056
|
Washer M10 lock |
8 |
|
|
50 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
8 |
|
|
65 |
231-2886
|
Washer 1/4 |
2 |
|
|
66 |
231-2887
|
Washer 1/4 x 1 |
4 |
|
|
67 |
231-2888
|
Washer 3/16 |
4 |
|
|
69 |
231-4053
|
Vacuum tank |
1 |
|
|
70 |
231-0021
|
Drain valve |
1 |
|
|
71 |
231-0046
|
45° drain spout |
1 |
|
|
72 |
231-2851
|
Inlet (OBSOLETE) |
3 |
|
|
73 |
231-4047
|
Adapter |
2 |
|
|
74 |
231-0232
|
1 1/2 inch pipe |
2 |
|
|
75 |
231-0065
|
Elbow for float assembly (OBSOLETE) |
2 |
|
|
76a |
173-5336
|
Float cage assembly |
2 |
|
|
77 |
231-4068
|
Vacuum lid gasket (OBSOLETE) |
1 |
|
|
78 |
182-1046
|
6 inch vac lid (clear) (OBSOLETE) |
1 |
|
|
79 |
231-2879
|
Screw 8-15 x 5/8 |
6 |
|
|
80 |
231-0025
|
Filter bag |
1 |
|
|
81 |
231-4069
|
Elbow inlet assembly (OBSOLETE) |
1 |
|
|
82 |
N/A
|
Not available |
1 |
|
|
83 |
231-4070
|
3-hole switch plate (OBSOLETE) |
1 |
|
|
84 |
999-0266
|
Washer #8 SAE flat stainless steel |
2 |
|
|
86 |
231-0014
|
2 position rocker switch |
3 |
|
|
87 |
231-4054
|
Hose hanger |
2 |
|
|
