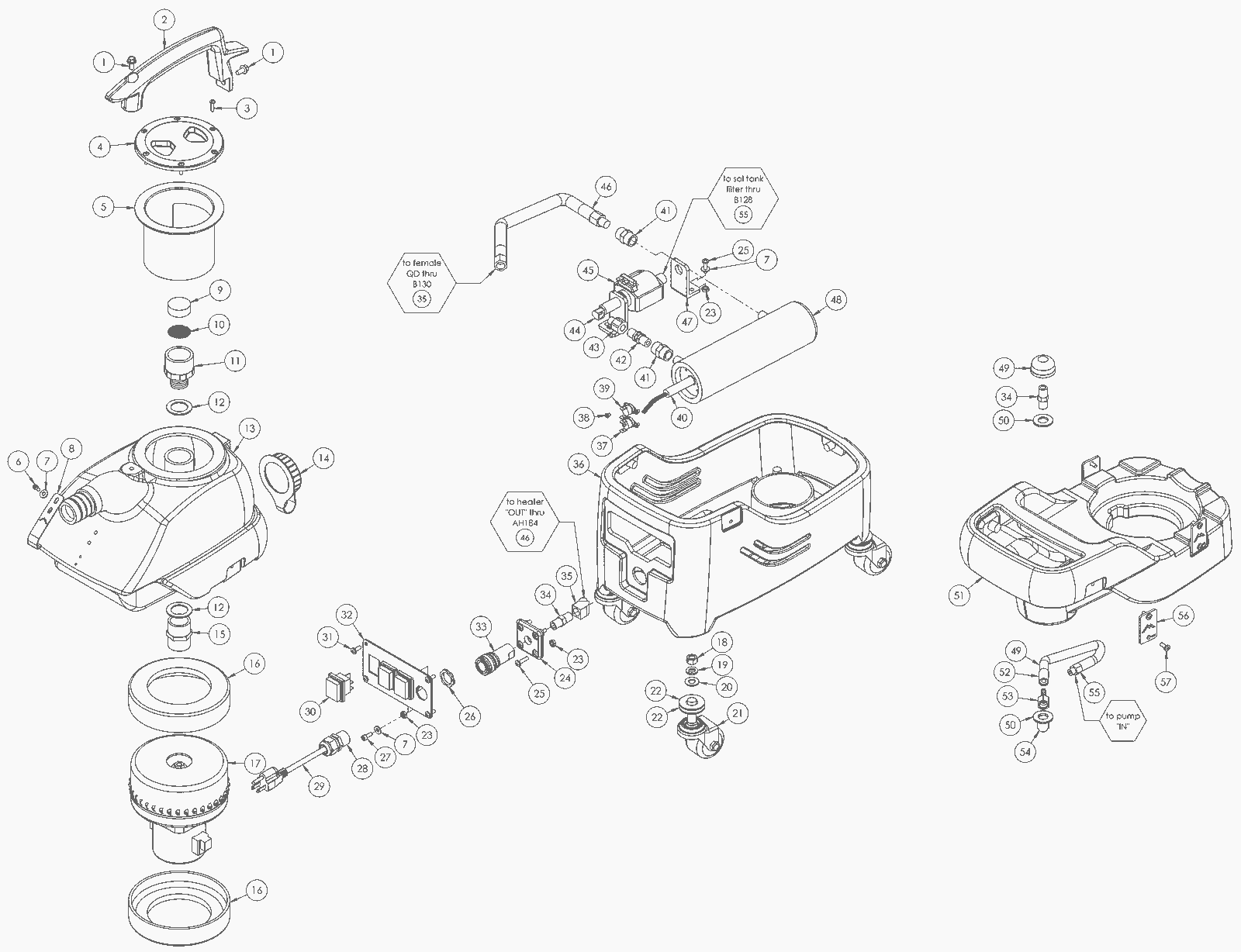

Entire Assembly

#PartDescription ReqNotesAvailability
1 231-2899 Bolt 1/4-20 x 1/2 serrated 2
2 231-0243 Handle 1
3 231-2879 Screw 8-15 x 5/8 6
4 231-0029 Lid 1
5 231-2863 Vacuum tank deflector 1
6 231-2901 Screw 8-32 x 3/8 alloy 1
7 999-0998 Washer #10 flat stainless steel 4
8 231-0244 Latch 1
9 231-0245 Filter 1
10 231-0249 Mesh screen 1
11 231-0246 PVC adapter 1
12 231-0247 Washer 2
13 231-0248 Vacuum tank 1
14 231-2864 Tethered cap 1
15 231-0250 PVC adapter 1
16 231-0004 Vac motor gasket 2
17 231-2862 115V 2 stage vacuum motor 1
18 999-0959 Nut 3/8-16 hex 4
19 231-0251 Washer 4
20 231-9140 Washer 4
21 231-0252 2 inch caster 4
22 231-2891 Washer 1 1/16 8
23 231-2866 Nut 7
24 231-4100 Mounting plate 1
25 999-6668 Screw 10-32 x 3/4 phillips pan head zinc 6
26 231-2881 Nut 1/2 1
27 231-4027 Screw 1
28 231-0007 Strain relief fitting 1
29 231-0009 Power cord 25ft 1
30 231-0014 2 position rocker switch 3
31 231-1720 Screw 10 x 1/2 inch plastite 4
32 231-0237 Switch plate 1
33 231-0066 1/4 inch female brass quick disconnect 1
34 231-2896 1/4 hex nipple 2
35 231-1695 1/4 inch male NPTF street elbow brass 1
36 231-0253 Base 1
37 231-0031 Thermostat 310 1
38 231-2867 Screw 6-18 x 3/16 5
39 231-0032 Thermostat 200 1
40 231-0044 Heater rod 1
42 231-0034 Brass check valve 1
43 231-0254 1/4 x 1/8 inch adaptor 1
44 231-0255 Elbow 1
45 182-8359 115V Pump 1
46 231-2829 14.5 inch hose 1
47 231-0256 Pump bracket 2
48 231-0045 Aluminum casting heater 1
49 231-1687 Filter strainer 1
50 231-2895 Washer 2
51 231-0257 Solution tank 1
52 231-4116 1/4 inch brass ferrule 2
53 231-4073 Fitting 1
54 231-0033 90 degree brass elbow 1
55 231-0258 Barb 1
56 231-1710 Connecting plate 5
57 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 10
N/S 231-0259 115V heater 600w 1
