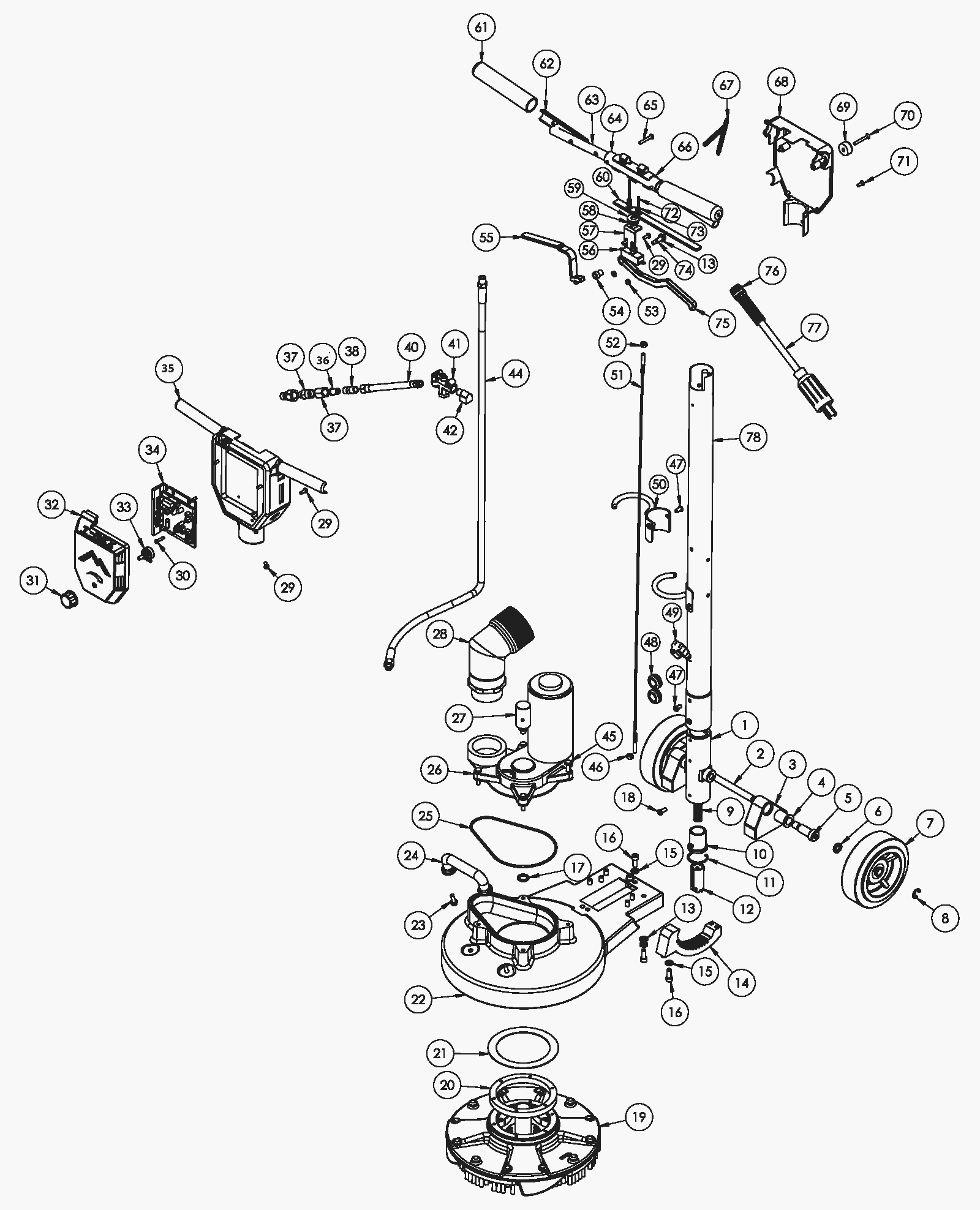

Entire Assembly

#PartDescription ReqNotesAvailability
1 231-9100 Pivot handle 1
2 231-9101 Axle 1
3 231-9102 Pivot block 2
4 231-9103 Bushing sleeve 2
5 231-9104 Shoulder bolt 2
6 231-1718 Wave axle washer 2
7 231-2935 6 inch wheel 2
8 231-2884 C-clip 2
9 231-9105 Handle adjustment spring 1
10 231-9106 Locking piston bushing 1
11 231-9107 Internal retaining ring 1
12 231-9108 Handle adjustment locking piston 1
13 231-9109 Washer 7
14 231-9110 Handle adjustment locking arc 1
15 231-9111 Washer 10
16 231-9112 Bolt 10
17 231-9113 O-ring 1
18 231-9114 Locking piston bolt 1
19 231-9115 15 inch cleaning head 1
20 231-2861 Filter screen 1
21 231-9116 Bell housing seal plate 1
22 231-9117 Bell housing 1
23 231-4001 1/4-20 X 3/4 inch bolt 2
24 231-4000 Aluminum handle (black) 1
25 231-9118 O-ring 1
26 231-9119 .5HP motor and transmission 1
27 231-9120 Rotary union 1
28 231-9121 Vacuum sight tube 1
29 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 7
30 231-9051 Screw pan head stainless steel 8 x 3/4 inch 2
31 231-9122 Speed controller knob 1
32 231-9123 Switch housing front cover (obsolete) 1
33 231-9124 Rotary potentiometer 1
34 231-9125 Power board speed control 1
35 231-9126 Switch box 1
36 241-5021 Male quick connect 1
37 231-9127 In-line filter 1
38 231-2896 1/4 hex nipple 1
40 231-9128 Solution hose 1
41 231-9129 Brass valve with trigger for wands 1
42 231-0033 90 degree brass elbow 1
44 231-9130 Solution hose 1
45 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel 4
46 999-0609 Nut 1/4-20 hex stainless steel 1
47 231-9131 Screw 10
48 231-9132 Grommet 2
49a 231-9133 Female cord plug 14/3 1 (oem)
49b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (non oem)
50 231-9056 Cord hook 2
51 231-9134 Handle adjustment cable 1
52 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
53 231-9026 10-32 Thin pattern lock nut 2
54 231-9135 Handle adjustment lever spacer 1
55 231-9136 Solution lever 1
56 231-9137 Momentary switch 1
57 231-9138 Switch mount bracket 1
58 231-9139 Internal star washer 1
59 231-9140 Washer 1
60 231-9141 Switch lever 1
61 231-9142 Vinyl handle grip 2
62 231-9143 Back half of handle 2
63 231-9144 Side reinforcement handle 2
64 231-9145 Center reinforcement handle 1
65 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 2
66 231-9146 Floor machine lockout 1
67 231-9147 Floor machine lockout spring 2
68 231-9148 Switch housing back cover 1
69 231-9024 Bumper with built in washer 2
70 231-9149 Screw 2
71 231-9150 Screw 3
72 231-9151 Roll pin 2
73 231-9152 Lever spring 2
74 231-9153 Shoulder bolt 1
75 231-9154 Floor machine handle adjustment lever 1
76 231-9155 Power cord strain relief 1
77 231-9156 Power cord end 1
78 231-9157 Tube 1
N/S 231-9158 Star protector 1
N/S 231-9159 Extension cord 16/3 1 (oem)
N/S 991-5002 16/3 extension cord 50 foot (orange) 1 (non oem)
N/S 231-9160 Flat wrench 1
N/S 231-9161 Star removal tool 1
N/S 231-4110 Cord lock 1
N/S 231-9162 Lubricant 1
