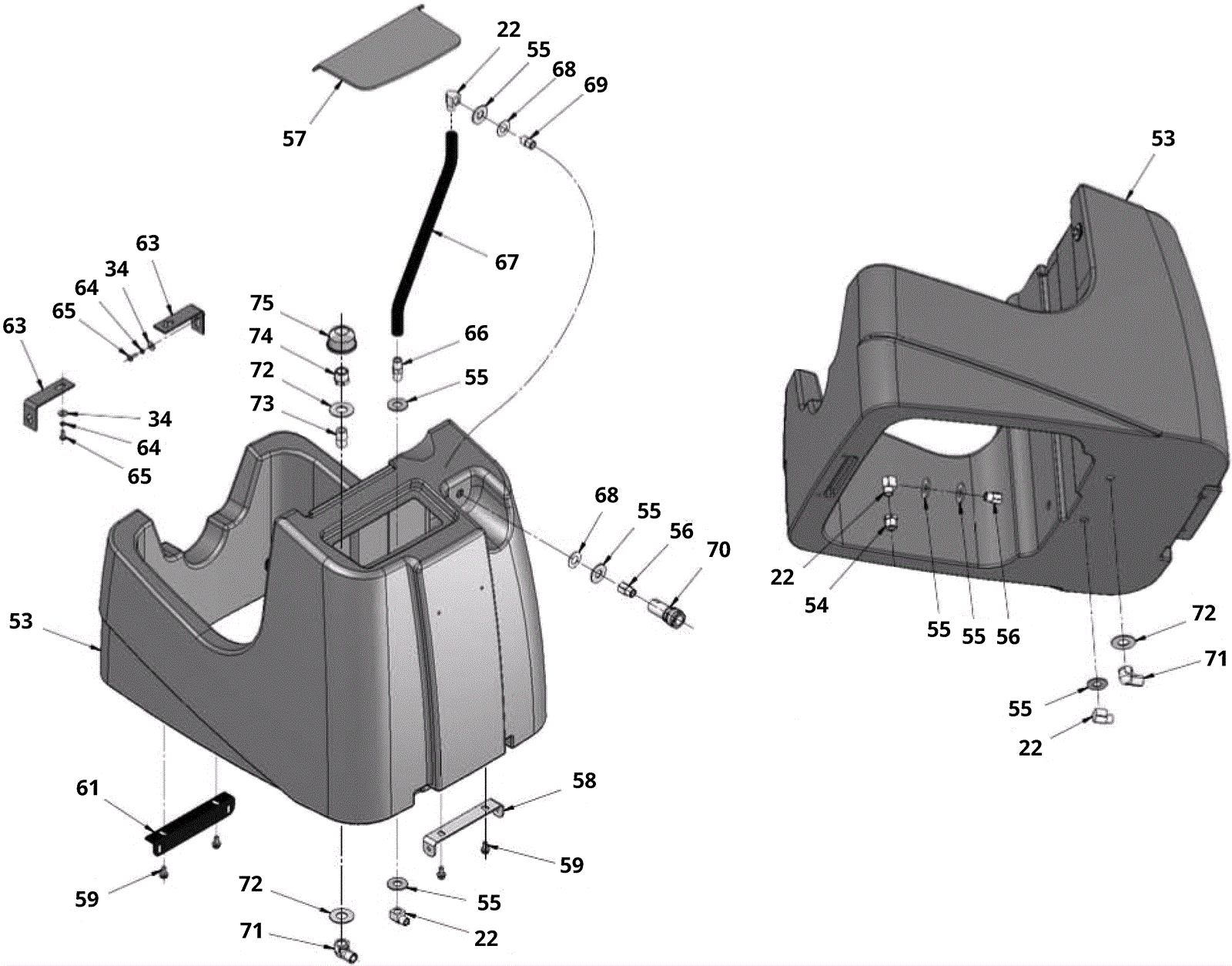

| # | Part | Description |
Req | Notes | Availability |
|---|
22 |
231-0033
|
90 degree brass elbow |
2 |
|
|
34 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
53 |
231-2911
|
Solution tank |
1 |
|
|
54 |
231-0234
|
Spray nozzle |
1 |
|
|
55 |
231-4067
|
1/2 inch flat washer |
8 |
|
|
56 |
231-2894
|
Brass adapter |
3 |
|
|
57 |
231-4062
|
Solution tank cover (OBSOLETE) |
1 |
|
|
58 |
231-2889
|
Front hinge bracket |
1 |
|
|
59 |
231-2899
|
Bolt 1/4-20 x 1/2 serrated |
4 |
|
|
61 |
231-4063
|
Latch bracket (OBSOLETE) |
1 |
|
|
63 |
231-4064
|
L bracket (OBSOLETE) |
2 |
|
|
64 |
231-4056
|
Washer M10 lock |
4 |
|
|
65 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
4 |
|
|
66 |
231-2896
|
1/4 hex nipple |
1 |
|
|
67 |
231-2829
|
14.5 inch hose |
1 |
|
|
68 |
231-4066
|
Washer (OBSOLETE) |
2 |
|
|
69 |
231-4065
|
Nipple (OBSOLETE) |
2 |
|
|
70 |
231-0066
|
1/4 inch female brass quick disconnect |
1 |
|
|
71 |
231-2893
|
90 degree street elbow |
1 |
|
|
72 |
231-2891
|
Washer 1 1/16 |
2 |
|
|
73 |
231-2892
|
Brass nipple |
1 |
|
|
74 |
231-2890
|
Bushing |
1 |
|
|
75 |
231-2841
|
Strainer |
1 |
|
|
