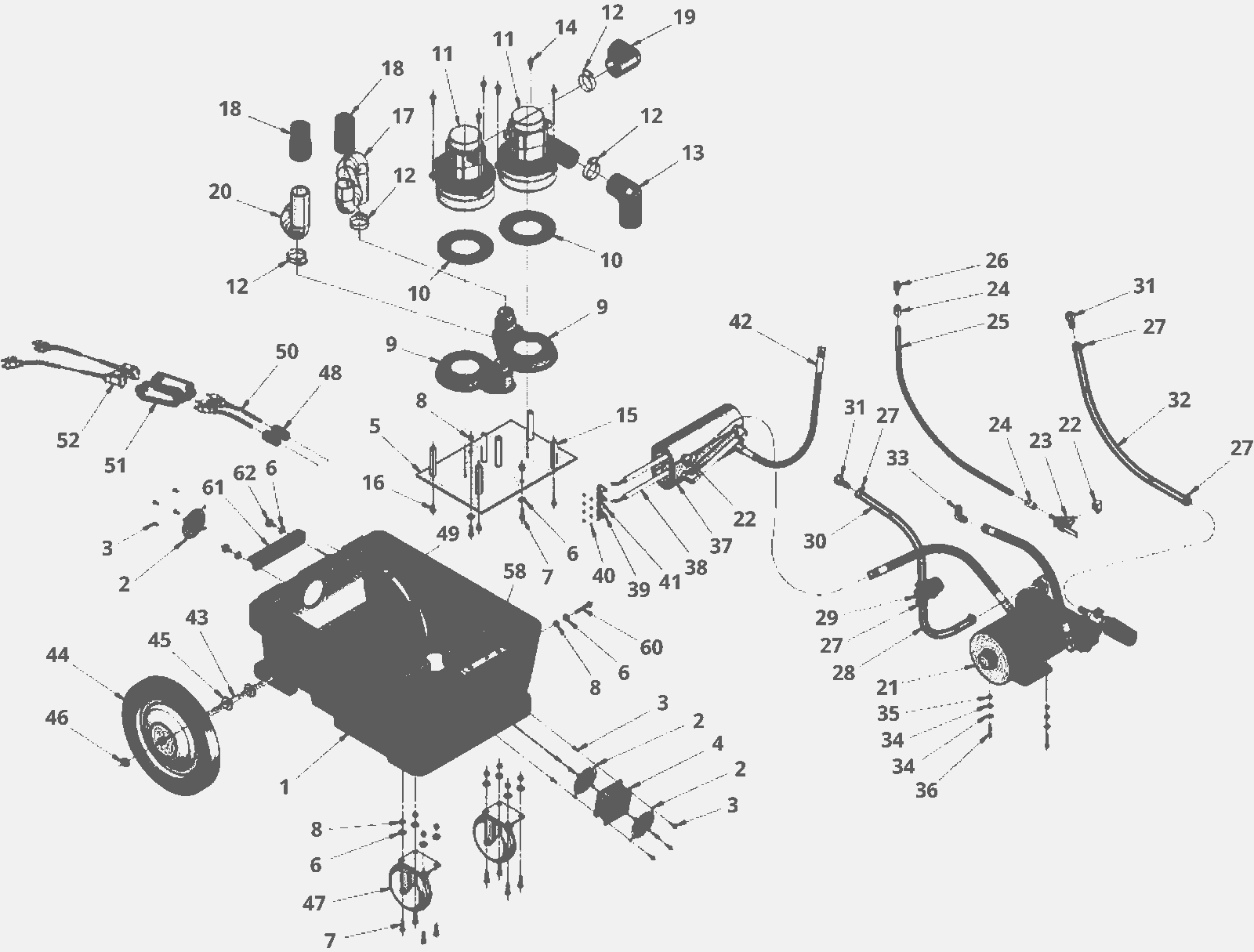

Base Assembly

#PartDescription ReqNotesAvailability
1 231-4050 Base 1
2 231-2878 Fan guard 3
3 182-2225 Screw #8 x 1/2mm 12
4 231-0030 115V cooling fan (OBSOLETE) 1
5 231-4006 Dual manifold plate 1
6 231-4005 Washer 8
7 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 10
8 999-0152 Nut 1/4-20 nylon insert lock zinc plated 12
9 231-2918 Manifold (OBSOLETE) 2
10 231-0004 Vac motor gasket 2
11a 231-0060 120V 3 stage vacuum motor 2 (OEM)
11b 991-1213 120V 3 stage vacuum motor tangential 2 (NON-OEM)
12 231-2908 2 1/4 inch hose clamp 4
13 231-4045 Exhaust boot 1
14 231-4001 1/4-20 X 3/4 inch bolt 6
15 231-4020 Vacuum support 6
16 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 6
17 231-4051 Vacuum hose 1
18 231-4044 Hose cuff 2
19 231-4045 Exhaust boot 1
20 231-4051 Vacuum hose 1
21 231-0024 450 PSI pump and regulator assembly (OBSOLETE) 1
22 231-0033 90 degree brass elbow 2
23 231-0051 Priming valve (OBSOLETE) 1
25 231-4072 Solution hose 1
26 231-4073 Fitting 2
27 231-4040 Hose clamp 6
28 231-2835 Solution hose (sold by the foot) 1
29 231-4075 Filter 1
30 231-2835 Solution hose (sold by the foot) 1
31 231-2877 1/2 inch brass adaptor 2
32 231-2835 Solution hose (sold by the foot) 1
33 231-4041 90 degree elbow 1
34 999-0998 Washer #10 flat stainless steel 4
35 231-2866 Nut 2
36 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 2
37 231-4078 Heater assembly (OBSOLETE) 1
38 231-0036 Heating rod 2
39 231-0032 Thermostat 200 2
40 231-4079 Nut (OBSOLETE) 8
41 231-0031 Thermostat 310 2
42 231-4088 28 inch solution hose 1
43 231-4080 Axle 1
44 231-0018 Wheel 12 inch (OBSOLETE) 2
45 231-2882 Washer 1/2 4
46 231-0019 Axle cap 2
47 231-0061 5 inch caster (OBSOLETE) 2
48 231-0007 Strain relief fitting 2
49 231-2881 Nut 1/2 2
50 231-0062 12/3 pigtail power cord 30 inch (OBSOLETE) 2
51 231-4060 Cord connector (OBSOLETE) 2
52 231-4052 Power cord 2
58 231-2889 Front hinge bracket 1
60 999-1436 Bolt 1/4-20 x 1 3/4 hex stainless steel 2
61 231-4063 Latch bracket (OBSOLETE) 1
62 231-4059 Thumb screw (black) 2
