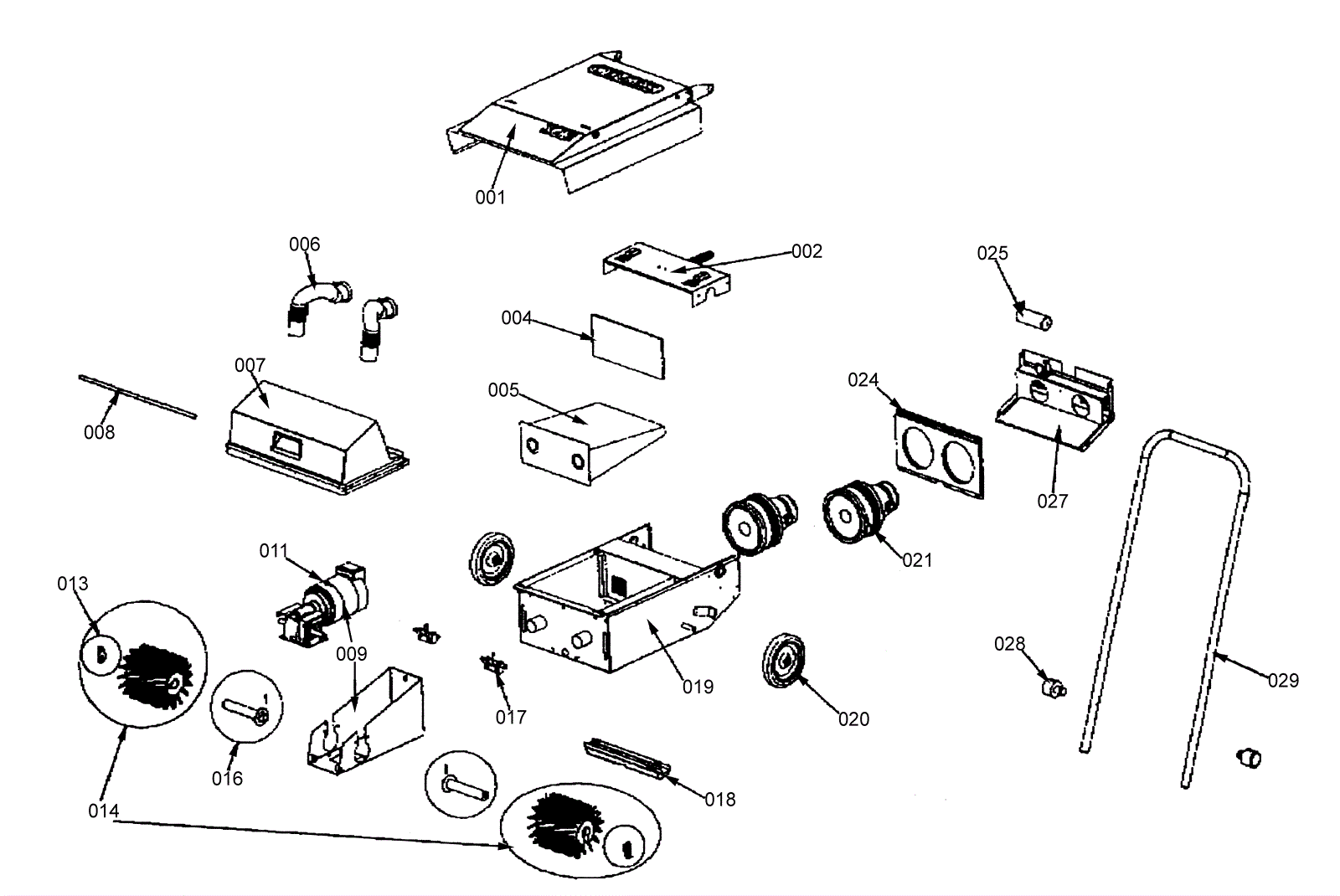

X-46 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001a 230-0185 Vacuum cover asssembly $192.97 1 usually ships 1-5 days
001c 230-0184 Vacuum cover seal $49.98 1 usually ships 5-14 days
002a 230-0187 Switch cover kit $233.82 1 usually ships 1-5 days
002b 230-0023 Switch $107.09 1 (brush) usually ships 5-14 days
002c 230-0033 Toggle switch $137.92 1 (vacuum) usually ships 5-14 days
004 230-0015 Dust bag filter (sold each) $22.99 1 ships same day
005 230-0004 Paper dust bags circle hole (pkg of 10) $93.75 1 usually ships 5-14 days
006a 230-0188 Hose kit $67.91 1 usually ships 1-5 days
006b 230-0253 1 1/2 inch hose $35.59 1 usually ships 1-5 days
006c 230-0254 Hose cuff $21.92 1 usually ships 1-5 days
007 230-0189 Brush cowl assembly $577.59 1 usually ships 1-5 days
008 230-0190 Brush cowl shaft $29.15 1 usually ships 1-5 days
009 230-0223 Brush motor chassis $223.37 1 usually ships 5-14 days
011a 230-0193 Brush motor kit $1,193.47 1 usually ships 1-5 days
011b 230-0030 Retrofit motor assembly $1,073.16 1 usually ships 1-5 days
013 230-0029 Brush clip $56.32 2 usually ships 5-14 days
014a 230-0012 Nylon brush set (standard) $139.05 2 usually ships 8-21 days
014b 230-0013 Tynex brush set (aggressive deep cleaning) $432.72 2 usually ships 5-14 days
014c 230-0259 Brush retaining latch $46.95 2 usually ships 5-14 days
016 230-0196 Brush motor spindle kit $120.51 1 usually ships 5-14 days
017 230-0197 Vacuum cover locking bolt $64.81 2 usually ships 1-5 days
018 230-0198 Bumper bar kit $68.11 1 usually ships 1-5 days
019 230-0199 Chassis $521.06 1 usually ships 1-5 days
020 230-0200 Wheel kit $65.05 1 usually ships 1-5 days
021a 230-0018 120V 2 stage vacuum motor peripheral $324.86 1 usually ships 3-5 days
021b 230-0201 Vacuum motor seal kit $54.69 1 usually ships 1-5 days
021c 230-0017 Gasket $13.64 2 usually ships 5-14 days
021d 230-0250 Motor gasket $11.10 1 usually ships 1-5 days
021e 230-0251 Sealing ring $3.67 1 usually ships 1-5 days
024a 230-0203 Baffle plate assembly $87.71 1 usually ships 1-5 days
024b 230-0238 Foam gasket $9.65 2 usually ships 1-5 days
024c 230-0239 Baffle plate $102.55 1 usually ships 1-5 days
025 230-0205 Capacitor $189.07 1 usually ships 1-5 days
027 230-0206 Rear plate assembly $274.15 1 usually ships 1-5 days
028 230-0207 Handle pivot assembly $82.03 1 usually ships 1-5 days
029 230-0208 Handle $153.04 1 usually ships 1-5 days
