| # | Part | Description |
Req | Notes | Availability |
|---|

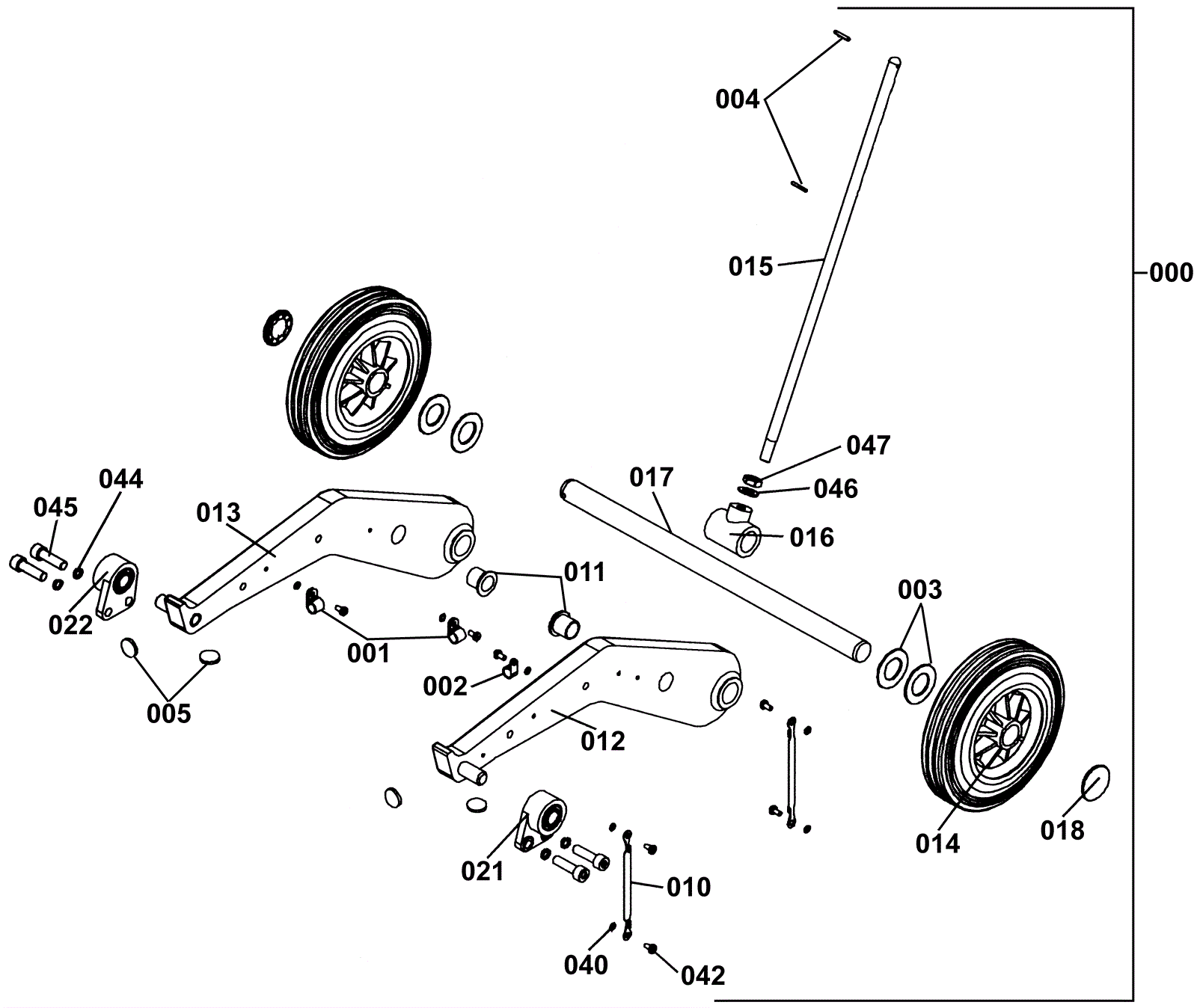

000 |
230-0096
|
Heavy duty chassis assembly |
1 |
|
|
001 |
230-0042
|
P clip |
2 |
|
|
002 |
230-0043
|
P clip |
1 |
|
|
003 |
230-0044
|
Washer |
4 |
|
|
004 |
230-0045
|
Sellock pin |
2 |
|
|
005 |
230-0046
|
Rubber buffer |
4 |
|
|
010 |
230-0047
|
Earth lead |
2 |
|
|
011 |
230-0048
|
Fork handle bushing |
2 |
|
|
012 |
230-0049
|
Left hand solid lifing fork |
1 |
|
|
013 |
230-0050
|
Right hand solid lifting fork |
1 |
|
|
014 |
230-0051
|
Wheel |
2 |
|
|
016 |
230-0053
|
Handle tee |
1 |
|
|
017 |
230-0054
|
Axle |
1 |
|
|
018 |
230-0055
|
Starlock hub cap |
2 |
|
|
021 |
230-0057
|
Left hand pivot block |
1 |
|
|
022 |
230-0058
|
Right hand pivot block |
1 |
|
|
040 |
230-0059
|
Washer M5 internal star lock |
7 |
|
|
042 |
230-0091
|
Screw M5 x 10mm pozi pan head stainless steel |
7 |
|
|
044 |
230-0092
|
Washer M10 spring |
4 |
|
|
045 |
230-0093
|
Screw M10 x 30mm cap head stainless steel |
4 |
|
|
046 |
230-0094
|
Washer M12 form stainless steel |
1 |
|
|
047 |
230-0095
|
Nut M12 lock stainless steel |
1 |
|
|
N/S |
230-0056
|
Conduit |
42 in |
|
|
