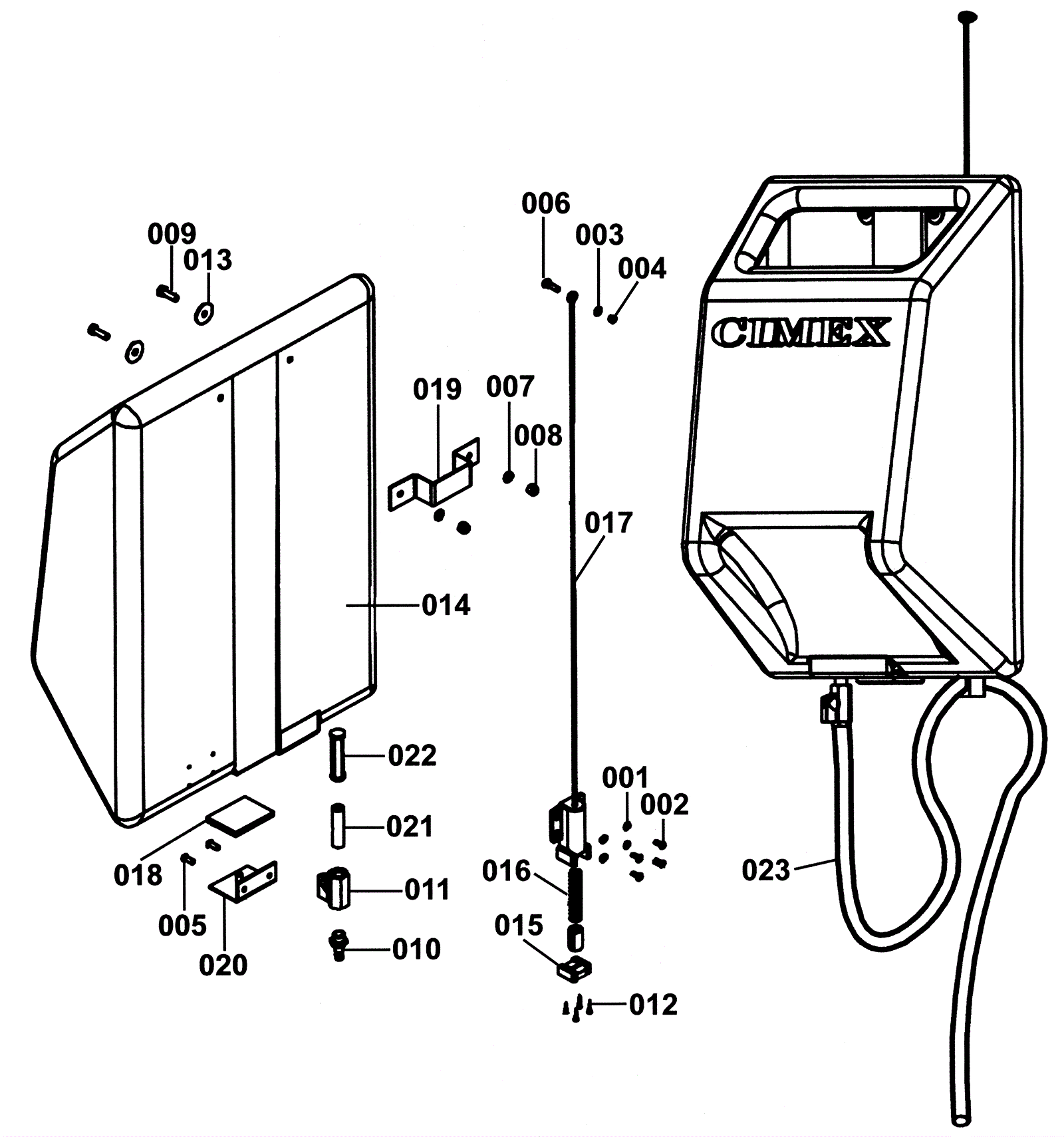

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
230-0097
|
Washer M4 form stainless steel |
4 |
|
|
002 |
230-0098
|
Screw M4 x 8mm pozi pan head stainless steel |
4 |
|
|
003 |
230-0099
|
Washer M5 form stainless steel |
1 |
|
|
004 |
230-0100
|
Nut M5 nylok |
1 |
|
|
005 |
230-0102
|
Screw M5 x 12mm countersunk |
2 |
|
|
006 |
230-0103
|
Screw M5 x 16mm pozi pan head stainless steel |
1 |
|
|
007 |
230-0104
|
Washer M6 stainless steel |
2 |
|
|
008 |
230-0105
|
Nut M6 nylok stainless steel |
2 |
|
|
009 |
230-0106
|
Bolt M6 x 20mm hex head SS (old style tank) (OBSOLETE) |
2 |
|
|
010 |
230-0107
|
Water outlet |
1 |
|
|
011 |
230-0108
|
Ball valve |
1 |
|
|
012 |
230-0109
|
Screw self tapper |
4 |
|
|
013 |
230-0110
|
Washer M6 |
2 |
|
|
014 |
230-0111
|
Cyclone supply tank |
1 |
|
|
015 |
230-0112
|
Water valve |
1 |
|
|
016 |
230-0113
|
Spring |
1 |
|
|
017 |
230-0114
|
Solution tank rod |
1 |
|
|
018 |
230-0115
|
Foam handle pad |
1 |
|
|
019 |
230-0116
|
Top tank bracket |
1 |
|
|
020 |
230-0117
|
Lower solution tank bracket |
1 |
|
|
021 |
230-0118
|
Valve insert |
1 |
|
|
022 |
230-0119
|
Nylon filter |
1 |
|
|
023 |
230-5005
|
Silicone tube 7.5mm (42 inch) |
63 in |
|
|
