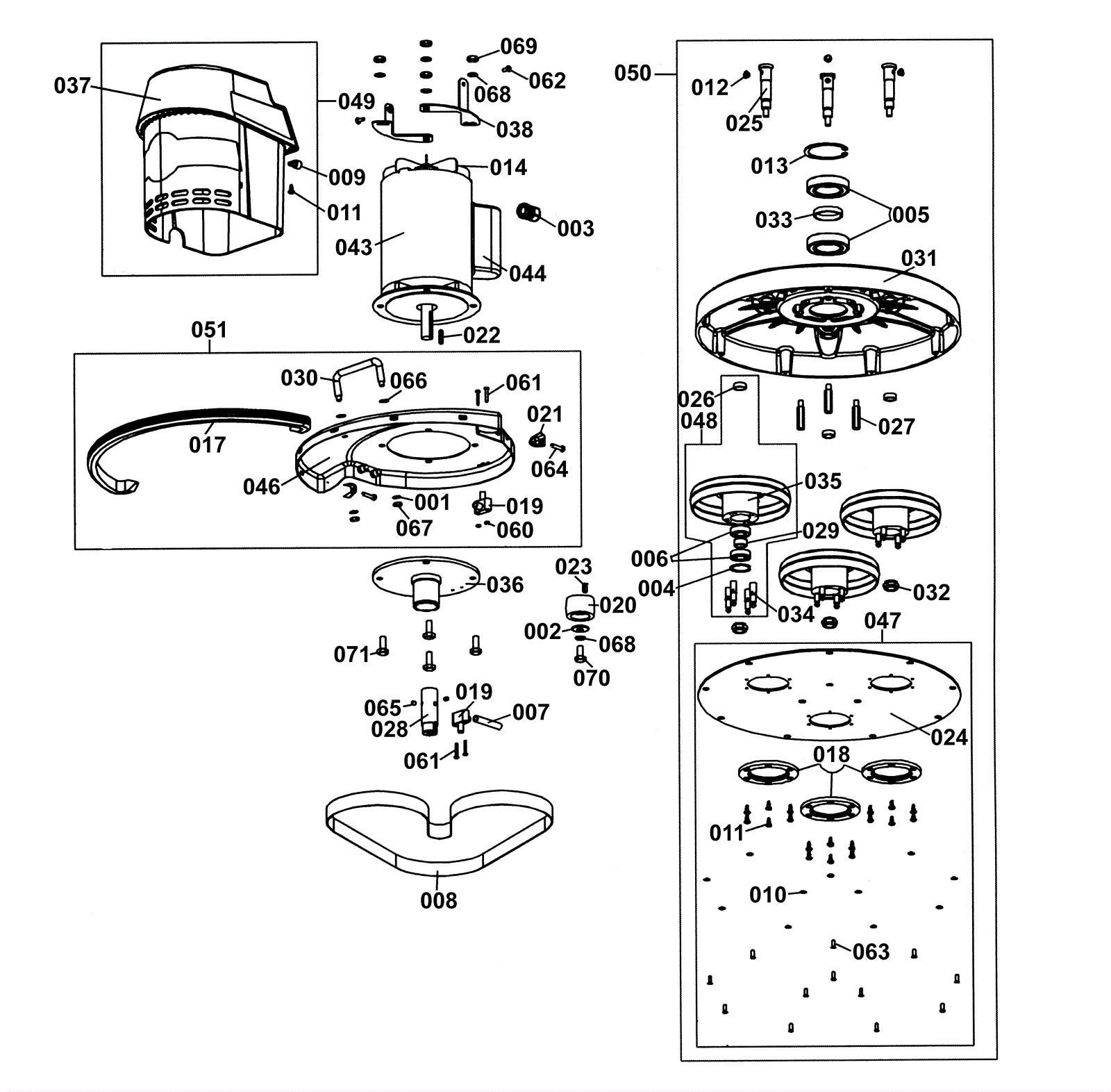

Head Assembly

#PartDescription ReqNotesAvailability
001 230-0122 Washer M8 shakeproof 2
002 999-1262 Washer M10 flat 1
003 230-0124 Cable gland 1
004 230-0125 Internal circlip 35mm 3
005 230-0286 Bearing 2
006 230-0127 Bearing 6
007 230-5005 Silicone tube 7.5mm (42 inch) 2 in
008 230-0040 Belt 1
009 230-0043 P clip 1
010 230-0131 Washer brass cup #8 12
011 230-0132 Screw self tapping 10 X 12 mm pozi pan head stainless steel 19
012 230-0133 Plastic insert 3
013 230-0134 Internal circlip 75mm 1
014 230-0135 Motor cooling fan with pin 1
015 230-0136 External circlip 1
017 230-0285 Bumper strip 1
018 230-0139 Dust seal 3
019 230-0140 Water feed elbow 2
020 230-0141 Motor pulley 1
021 230-0142 Rubber bumper clip 2
022 230-0143 Key 3/16 x 3/16 x 25mm 1
023 230-0144 Key 3/16 x 3/16 x 5/8 1
024 230-0145 Bottom cover plate 1
025 230-0146 Brush spindle 3
026 230-0147 Brush pulley spacer 3
027 230-0287 Bottom cover spacer 3
028 230-0149 Motor shaft extension 1
029 230-0150 Pulley bearing spacer 3
030 230-0151 Lifting handle 1
031 230-0152 EDU bowl (blue) 1
032 230-0153 Nut M16 nylok machined 3
033 230-0154 Center bearing spacer 1
034 230-0155 Brush driving pins 12
035 230-0272 Brush pulley 3
036 230-0157 Spigot plate 1
037 230-0158 Motor cover 1
038 230-0159 Motor cover bracket 2
039 230-0160 Front bars decal 1
043 230-1920 Motor 1
044a 230-0165 Start capacitor for Tyco and Lemac motors (OBSOLETE) 1
044b 230-0166 Run capacitor (OBSOLETE) 1
046 230-0167 Bumper shield assembly 1
047 230-0168 Bottom cover assembly 1
048 230-0272 Brush pulley 3
049 230-0170 Motor cover assembly 1
050 230-0171 EDU assembly 1
051 230-0172 Bumper shield includes bumper and handle 1
060 230-0173 Nut M4 brass 2
061 230-0174 Screw M4 x 25 pozi pan head stainless steel 4
062 230-0175 Screw M5 x 12 pozi pan head stainless steel 2
063 230-0102 Screw M5 x 12mm countersunk 12
064 230-0176 Screw M5 x 25 pozi pan head stainless steel 2
065 230-0177 Screw M6 x 6 grub socket head 2
066 230-0178 Washer M8 type B stainless steel 2
067 230-0179 Washer M8 type B stainless steel 2
068 230-0180 Washer M10 internal shakeproof 5
069 230-0181 Nut M10 lock zinc 4
070 230-0182 Bolt M10 x 20 zinc 1
071 230-0183 Bolt M10 x 25 zinc 4
N/S 230-0266 Champaign pads (pkg of 15)
N/S 230-0162 Left and right hand side decal 1
N/S 230-0161 Front badge decal 1
N/S 230-0163 Cimex from Truvox decal 1
