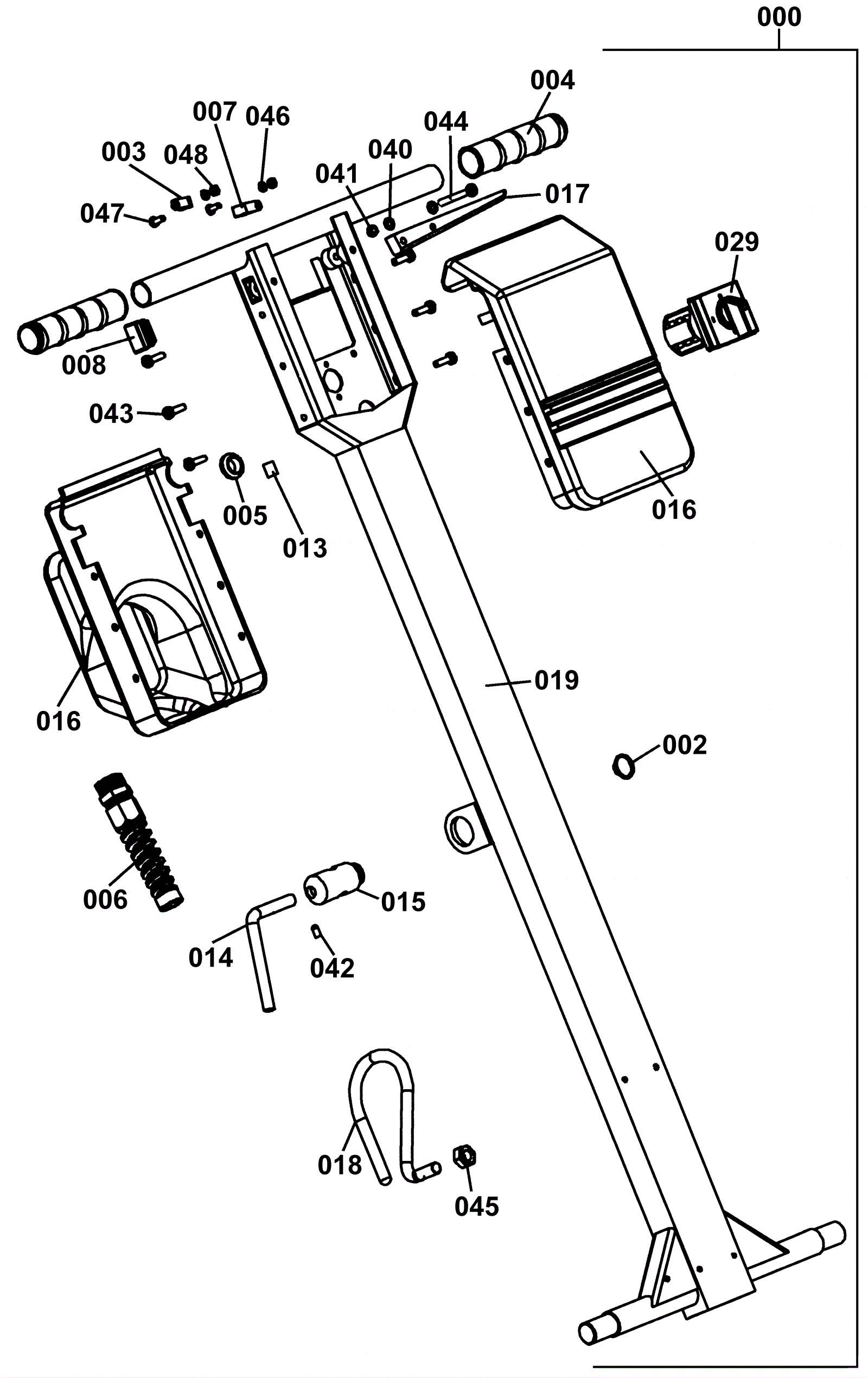

Handle Assembly

#PartDescription ReqNotesAvailability
000 230-0090 Handle assembly 1
002 230-0041 External circlip 3/4 inch 1
003 230-0060 NX5P Clip 1
004 230-0061 Handle grip 2
005 230-0062 Grommet 1
006 230-0063 Cable gland with backnut 1
007 230-0064 P clip 1
008 230-0065 Rectangular plug 1
013 230-0066 Earth point label 1
014 230-0067 Locking handle 1
015 230-0068 Pivot 1
016 230-0069 Switch enclosure (front and rear) 1
017 230-0070 Water valve lever 1
018 230-0071 Cable hook 1
019 230-0072 Common handle frame 1
029 230-0078 Rotary switch 1
040 230-0081 Washer M5 form A zinc plated 2
041 230-0082 Nut M5 nyloc zinc plated 1
042 230-0083 Screw M5 x 10 socket set zinc plated 1
043 230-0084 Screw M5 x 18 pozi pan head stainless steel 6
044 230-0085 Screw M5 x 40 pan head stainless steel 1
045 230-0086 Nut M10 standard form mild steel zinc plated 1
046 230-0087 Washer M4 shakeproof 2
047 230-0088 Screw M4 x 10 POZI pan head stainless steel 2
048 230-0089 Nut M4 full stainless steel 2
N/S 230-0079 Handle core components 1
N/S 230-0073 Warning name plate 1
N/S 230-0080 Handle rotary switch (OBSOLETE) 1
N/S 230-0077 Wire (switch to the motor) 80 in
N/S 230-0075 Straight terminal 2
N/S 230-0261 Replacement power cord 1
N/S 230-0076 Spade terminal spring 6
