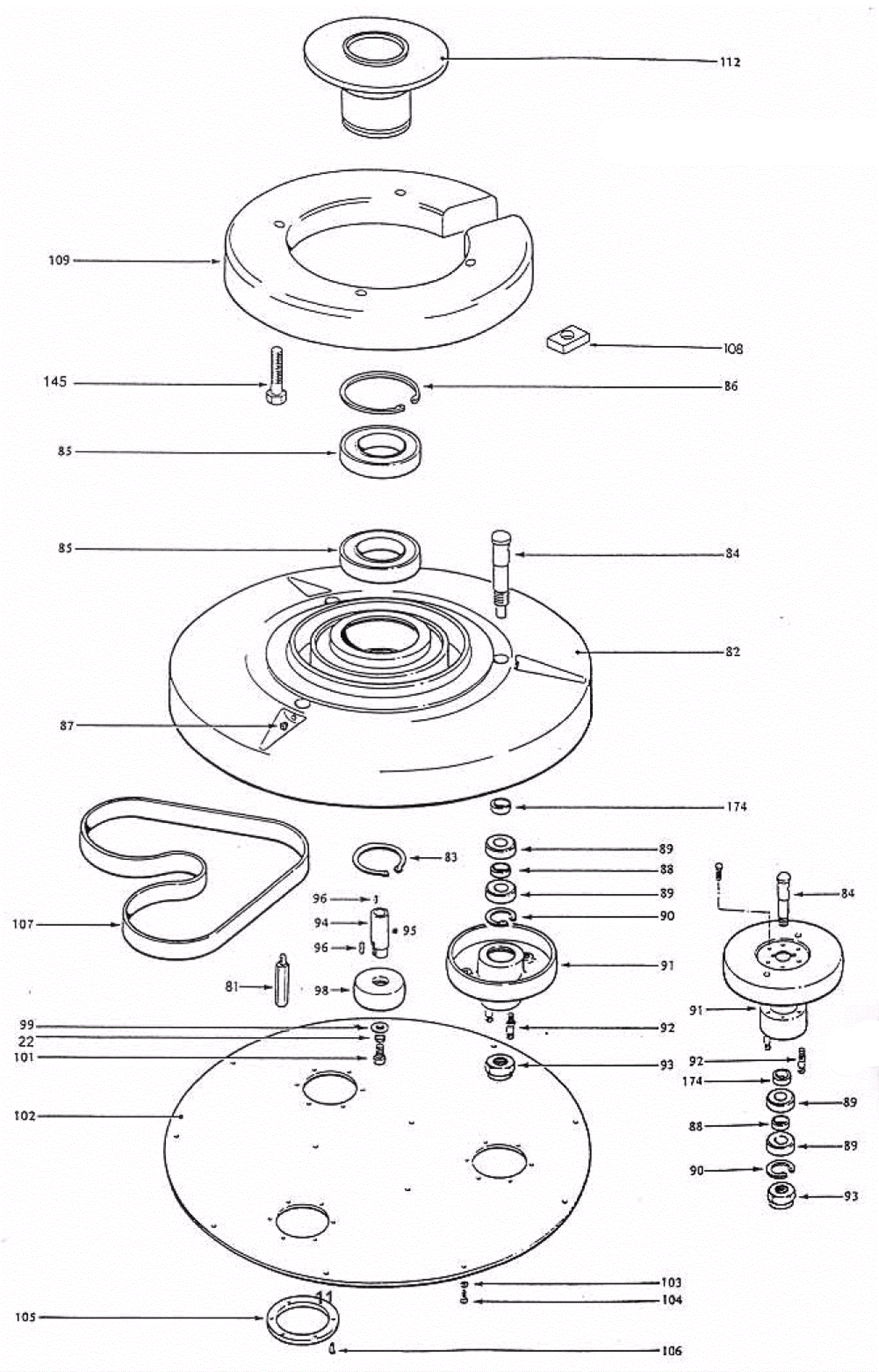

CYCLONE38 Base Assembly

#PartDescriptionPriceReqNotesAvailability
22 230-5014 Washer $1.19 5 usually ships 5-14 days
82a 230-5031 EDU bowl $132.78 1 usually ships 5-14 days
82b 230-0152 EDU bowl (blue) $264.94 1 usually ships 1-5 days
82c 230-5032 EDU bowl $821.19 1 usually ships 5-14 days
83 230-0136 External circlip $0.99 1 usually ships 1-5 days
84 230-0146 Brush spindle $35.94 3 usually ships 5-14 days
85 230-0126 Bearing $8.25 2 usually ships 5-14 days
86 230-0134 Internal circlip 75mm $1.25 1 usually ships 1-5 days
87 230-0133 Plastic insert $0.99 3 usually ships 5-14 days
88 230-0150 Pulley bearing spacer $6.19 3 usually ships 5-14 days
89 230-0127 Bearing $34.02 6 usually ships 5-14 days
90 230-0125 Internal circlip 35mm $5.50 3 usually ships 5-14 days
91a 230-5033 Brush pulley Call for price 3 usually ships 5-14 days
91b 230-0272 Brush pulley $220.35 3 usually ships 5-14 days
92 230-0155 Brush driving pins $3.26 6 usually ships 1-5 days
93 230-0153 Nut M16 nylok machined $3.37 3 usually ships 5-14 days
94 230-5034 Motor shaft extension $84.85 1 usually ships 5-14 days
94b 230-0149 Motor shaft extension $96.32 1 usually ships 1-5 days
95 230-0177 Screw M6 x 6 grub socket head $0.99 1 usually ships 1-5 days
96 251-5035 Round ended steel key $1.52 2 usually ships 5-14 days
96b 230-0143 Key 3/16 x 3/16 x 25mm $1.43 2 usually ships 1-5 days
99 251-5036 Washer $0.99 5 usually ships 5-14 days
101 230-0182 Bolt M10 x 20 zinc $0.99 1 usually ships 1-5 days
102a 251-5037 Bottom cover plate $32.05 1 usually ships 5-14 days
102b 230-0145 Bottom cover plate $78.50 1 usually ships 5-14 days
102c 251-5038 Bottom cover plate $240.54 1 usually ships 5-14 days
104 230-0102 Screw M5 x 12mm countersunk $2.00 12 usually ships 5-14 days
105 230-0139 Dust seal $14.21 3 usually ships 5-14 days
106 230-0132 Screw self tapping 10 X 12 mm pozi pan head stainless steel $0.99 18 usually ships 1-5 days
107 N/A Not available Call for price (Belt) usually ships 3-26 days
108 251-5039 Spacer $7.55 4 usually ships 5-14 days
112 N/A Not available Call for price 1 (Spigot plate) (Only available with bumper shield) usually ships 3-26 days
145 251-5041 Screw $4.82 4 usually ships 5-14 days
174 230-0147 Brush pulley spacer $5.93 3 usually ships 1-5 days
