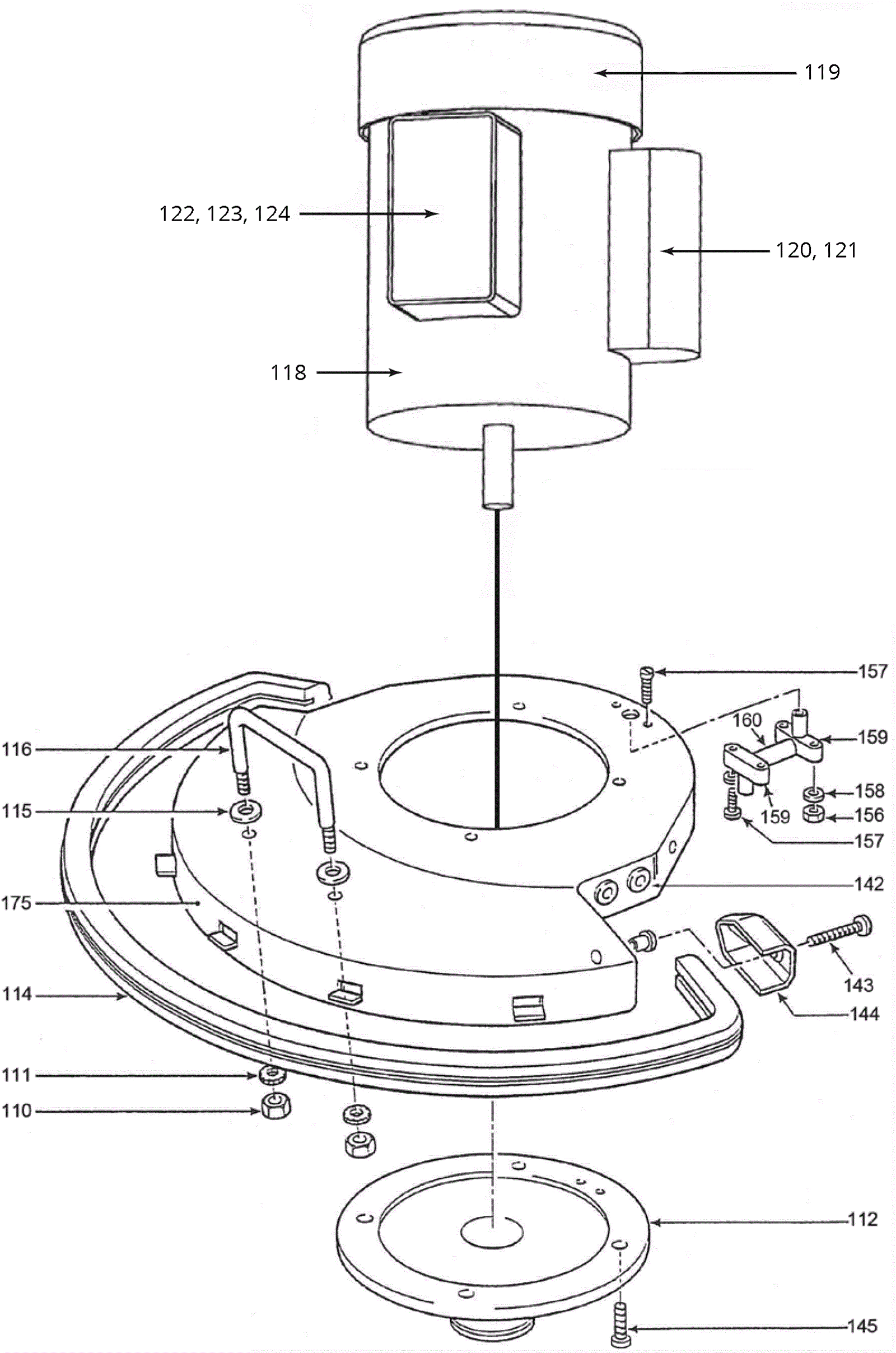

CR48SC Motor Assembly

#PartDescriptionPriceReqNotesAvailability
110 230-9784 M8 full nut Call for price 2 usually ships 9-13 days
111 230-5023 Washer $0.99 2 usually ships 9-13 days
112 230-0157 Spigot plate $174.99 1 (see 175) usually ships 9-13 days
114 230-5024 Rubber bumper $61.02 1 usually ships 9-13 days
115 230-0178 Washer M8 type B stainless steel $0.99 4 usually ships 1-5 days
116 230-0151 Lifting handle $28.67 1 usually ships 1-5 days
118 230-1920 Motor $968.18 1 usually ships 9-13 days
119 230-9785 Motor top cover Call for price 1 usually ships 9-13 days
120 230-0281 Start capacitor for Leeson motor $75.44 1 usually ships 9-13 days
121 230-9786 Run capacitor $109.64 1 ships same day
122 230-9787 Electric box Call for price 1 usually ships 9-13 days
123 230-9788 Electric box cover Call for price 1 usually ships 9-13 days
124 230-9789 Electric box gasket Call for price 1 usually ships 9-13 days
142 230-5029 Nut $1.76 4 (assembled with 175) usually ships 9-13 days
143 230-0176 Screw M5 x 25 pozi pan head stainless steel $0.99 2 usually ships 1-5 days
144 230-0142 Rubber bumper clip $2.86 2 usually ships 1-5 days
145 251-5041 Screw $4.82 4 usually ships 9-13 days
156 230-0089 Nut M4 full stainless steel $0.99 2 usually ships 1-5 days
157 230-9790 Screw M4x24 pan head Call for price 4 usually ships 9-13 days
158 230-0097 Washer M4 form stainless steel $0.99 4 usually ships 1-5 days
159 230-0140 Water feed elbow $11.54 2 usually ships 9-13 days
175 230-9791 Bumper shield Call for price 1 usually ships 9-13 days
N/S 230-5005 Silicone tube 7.5mm (42 inch) $33.74 1 usually ships 9-13 days
