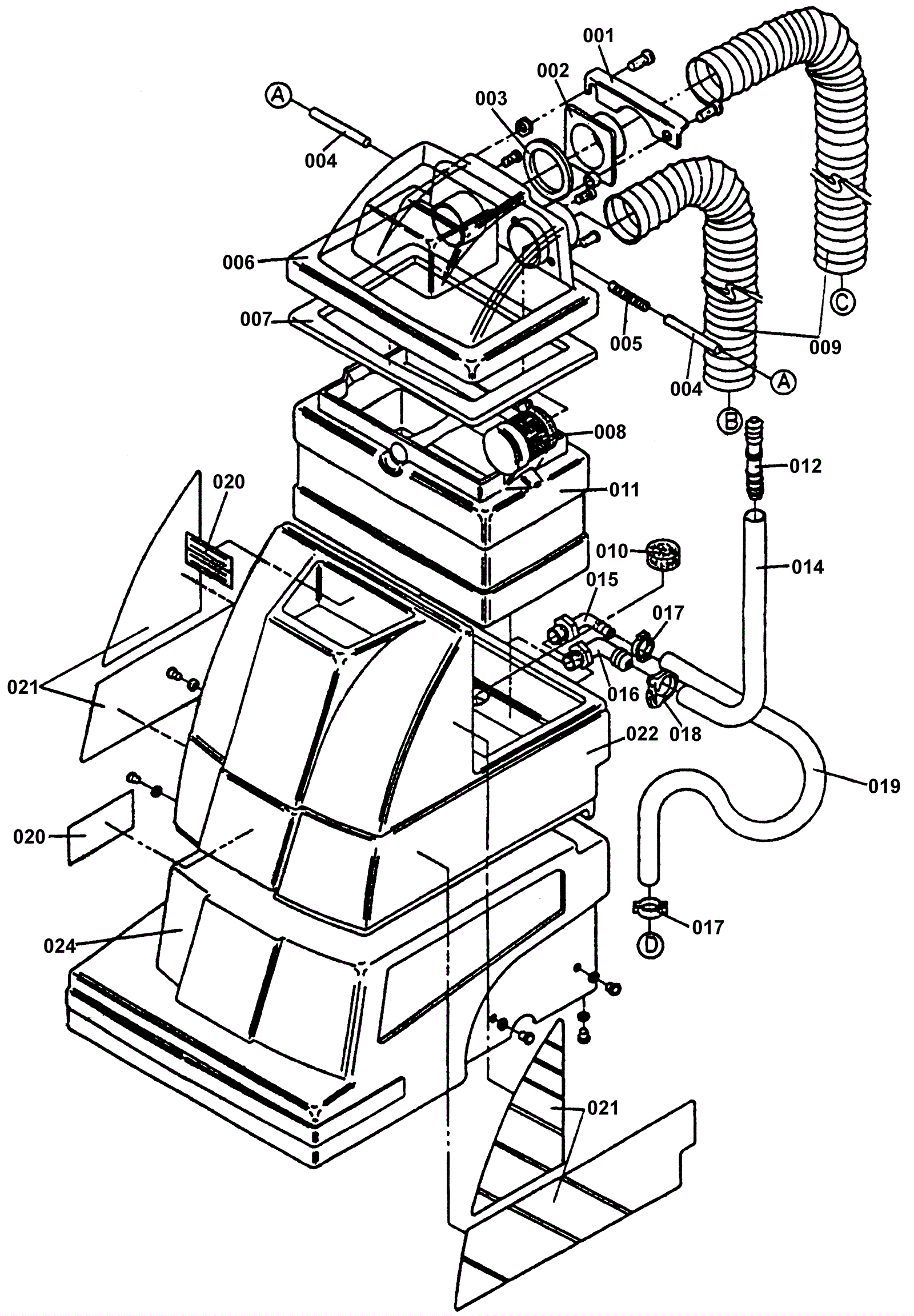

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
221-0001
|
Adapter retainer clip |
1 |
|
|
002 |
221-0002
|
Hose adapter |
1 |
|
|
003 |
221-0003
|
Vacuum intake seal |
1 |
|
|
004 |
221-0004
|
Lid pivot shaft |
2 |
|
|
005 |
221-0005
|
Dome pivot spring |
1 |
|
|
006 |
221-0006
|
Vacuum lid assembly |
1 |
|
|
007 |
221-0007
|
Vacuum lid gasket |
1 |
|
|
008 |
221-0008
|
Vacuum lid filter screen assembly |
1 |
|
|
009 |
221-0009
|
Wire reinforced 2 inch vacuum hose (by the foot) |
2 |
|
|
010 |
221-0010
|
Solution tank plug |
1 |
|
|
011 |
221-0012
|
Recovery pail |
1 |
|
|
012 |
221-0013
|
Drain nozzle |
1 |
|
|
014 |
221-0014
|
Drain hose |
1 |
|
|
015 |
221-0015
|
90 degree elbow |
1 |
|
|
016 |
221-0016
|
90 degree elbow |
1 |
|
|
017 |
221-0017
|
Hose clamp 5/8 |
2 |
|
|
018 |
221-0018
|
Hose clamp 7/8 |
1 |
|
|
019 |
221-0019
|
Solution hose 3/8 ID |
1 |
|
|
020 |
221-0020
|
Label kit (OBSOLETE) |
1 |
|
|
021 |
221-0022
|
Decal kit (OBSOLETE) |
1 |
|
|
022 |
221-0024
|
Solution tank assembly (OBSOLETE) |
1 |
|
|
024 |
221-0146
|
Motor housing 17 inch |
1 |
|
|
N/S |
221-0147
|
Label kit |
1 |
|
|
