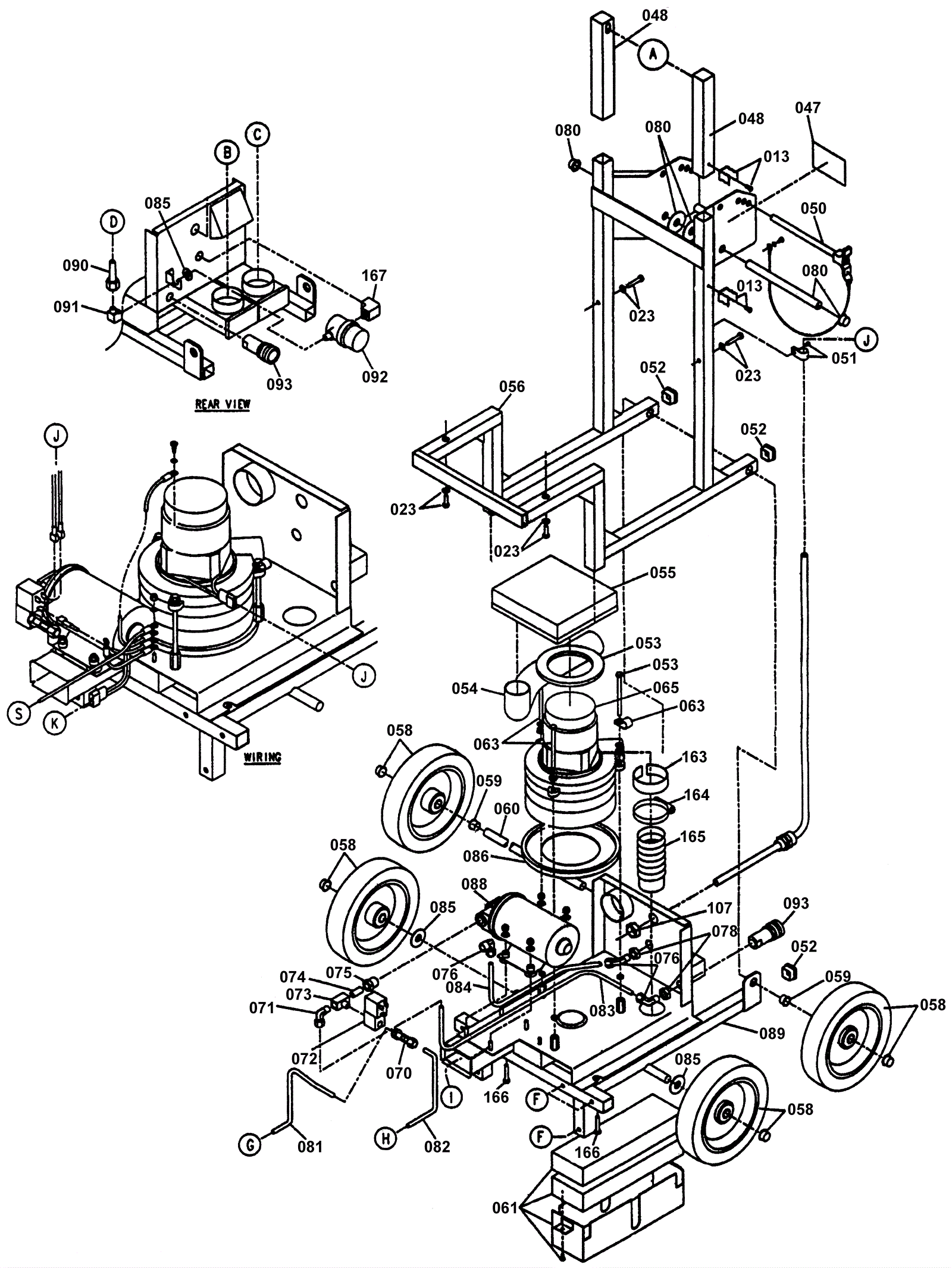

| # | Part | Description |
Req | Notes | Availability |
|---|
013 |
221-0072
|
Drain hose clip assembly |
2 |
|
|
023 |
221-0073
|
Solution tank mounting kit (OBSOLETE) |
1 |
|
|
047 |
221-0147
|
Label kit |
1 |
|
|
048 |
221-0074
|
Pivot extension lid frame |
2 |
|
|
050 |
221-0076
|
Retaining pin assembly |
1 |
|
|
051 |
221-0077
|
Cord clamp assembly |
1 |
|
|
052 |
221-0078
|
End cap |
4 |
|
|
053 |
221-0079
|
Cooling air duct gasket |
1 |
|
|
054 |
221-0080
|
Exhaust hose 2 inch (sold by the foot) |
1 |
|
|
055 |
221-0081
|
Cooling air duct |
1 |
|
|
056 |
221-0174
|
Upper frame (OBSOLETE) |
1 |
|
|
058 |
221-0083
|
Wheel assembly (set of 2) |
1 |
|
|
059 |
203-5714
|
1/2 inch Nylon bushing |
2 |
|
|
060 |
221-0085
|
Wheel axle |
1 |
|
|
061 |
221-0086
|
Muffler kit |
1 |
|
|
063a |
221-0175
|
Vacuum motor mounting assembly (2 stage) |
1 |
|
|
063b |
221-0088
|
Vacuum motor mounting assembly (3 stage) |
1 |
|
|
065 |
991-1213
|
120V 3 stage vacuum motor tangential |
1 |
|
|
070 |
221-0177
|
Bushing 1/8 mp x 1/4 c |
1 |
|
|
071 |
221-0091
|
90 degree elbow 1/8 mp x 1/4 c |
1 |
|
|
072 |
221-0092
|
Solenoid 1/8 npt 115 volt |
1 |
|
|
073 |
221-0093
|
Male 1/8 npt branch tee |
1 |
|
|
074 |
221-0094
|
short nipple 1/8 npt |
1 |
|
|
075a |
221-0095
|
3/8 npt reducer bushing (50 psi) |
1 |
|
|
075b |
221-0178
|
Bushing reducer 1/4 npt (100 psi) |
1 |
|
|
076a |
221-0096
|
90 degree elbow 3/8 mp x 1/4 c (50 psi) |
1 |
|
|
076b |
221-0179
|
90 degree elbow 1/4 mp x 1/4 c (100 psi) |
1 |
|
|
078 |
221-0097
|
Hex nut |
2 |
|
|
080 |
221-0098
|
Handle shaft assembly |
1 |
|
|
081 |
221-0180
|
Solenoid to spray tip tube |
1 |
|
|
082 |
221-0181
|
Solenoid to spray tip tube |
1 |
|
|
083 |
221-0182
|
Pump to accessory line tube |
1 |
|
|
084 |
221-0183
|
Pump to solution intake line tube |
1 |
|
|
085 |
203-5754
|
Nylon shoulder washer |
3 |
|
|
086 |
221-0104
|
Vacuum motor gasket (OBSOLETE) |
1 |
|
|
088a |
221-0105
|
Internal bypass 115 volt 50 psi pump |
1 |
|
|
088b |
221-0184
|
Pump 115 volt 100 psi |
1 |
|
|
089 |
221-0185
|
Lower frame assembly (OBSOLETE) |
1 |
|
|
090 |
221-0107
|
Adapter |
1 |
|
|
091 |
221-0108
|
90 degree elbow |
1 |
|
|
092a |
221-0109
|
In-line filter strainer |
1 |
|
|
092b |
221-0110
|
In-line strainer screen |
1 |
|
|
092c |
221-0111
|
In-line strainer cap |
1 |
|
|
093 |
221-0112
|
Quick disconnect |
1 |
|
|
107 |
221-0186
|
Handle to lower frame cord assembly (OBSOLETE) |
1 |
|
|
163 |
221-0114
|
Gasket horn |
1 |
|
|
164 |
221-0115
|
Hose clamp |
1 |
|
|
165 |
221-0116
|
Vacuum exhaust hose assembly (OBSOLETE) |
1 |
|
|
166 |
999-0432
|
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
|
167 |
221-0117
|
90 degree elbow 1/4 fp x 1/4 fp |
1 |
|
|
N/S |
221-0030
|
Ground wire assembly (OBSOLETE) |
1 |
|
|
