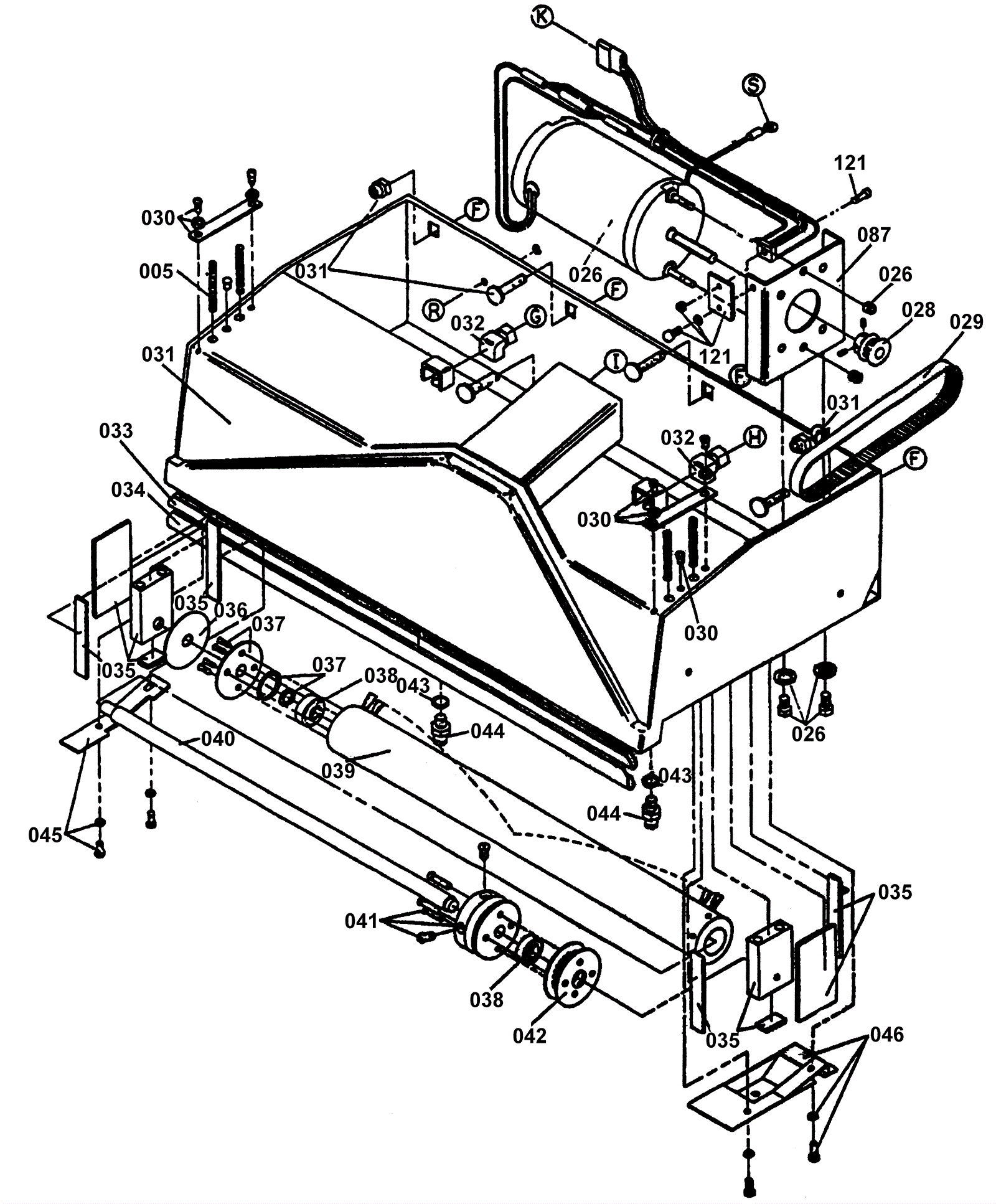

| # | Part | Description |
Req | Notes | Availability |
|---|
005 |
221-0005
|
Dome pivot spring |
4 |
|
|
026 |
221-0148
|
Brush drive motor assembly |
1 |
|
|
028 |
221-0303
|
Pulley |
1 |
|
|
029 |
221-0150
|
Timing belt |
1 |
|
|
030 |
221-0151
|
Spring cover plate assembly |
1 |
|
|
031 |
221-0153
|
Brush chamber assembly |
1 |
|
|
032 |
221-0035
|
90 degree elbow1/8 x 1/4 |
1 |
|
|
033 |
221-0155
|
Back glide |
1 |
|
|
034 |
221-0157
|
Front glide |
1 |
|
|
035 |
221-0158
|
Slide block assembly |
2 |
|
|
036 |
221-0159
|
Washer |
1 |
|
|
037 |
221-0160
|
String guard assembly |
1 |
|
|
038 |
221-0161
|
Brush bearing |
2 |
|
|
039 |
221-0163
|
Rotary brush |
1 |
|
|
040 |
221-0165
|
Brush shaft |
1 |
|
|
041 |
221-0166
|
Rotary brush slinger assembly |
1 |
|
|
042 |
221-0167
|
Rotary brush pulley |
1 |
|
|
043 |
221-0038
|
Washer 7/16 x 5/8 3/32 thick |
1 |
|
|
044 |
221-0169
|
Spray tip |
2 |
|
|
045 |
221-0170
|
Open end cover plate assembly |
|
|
|
046 |
221-0171
|
Pulley end cover plate assembly |
1 |
|
|
087 |
221-0172
|
Brush drive motor bracket |
1 |
|
|
121 |
221-0173
|
Mounting board |
1 |
|
|
N/S |
221-0030
|
Ground wire assembly (OBSOLETE) |
1 |
|
|
N/S |
221-0437
|
Rectifier |
1 |
|
|
