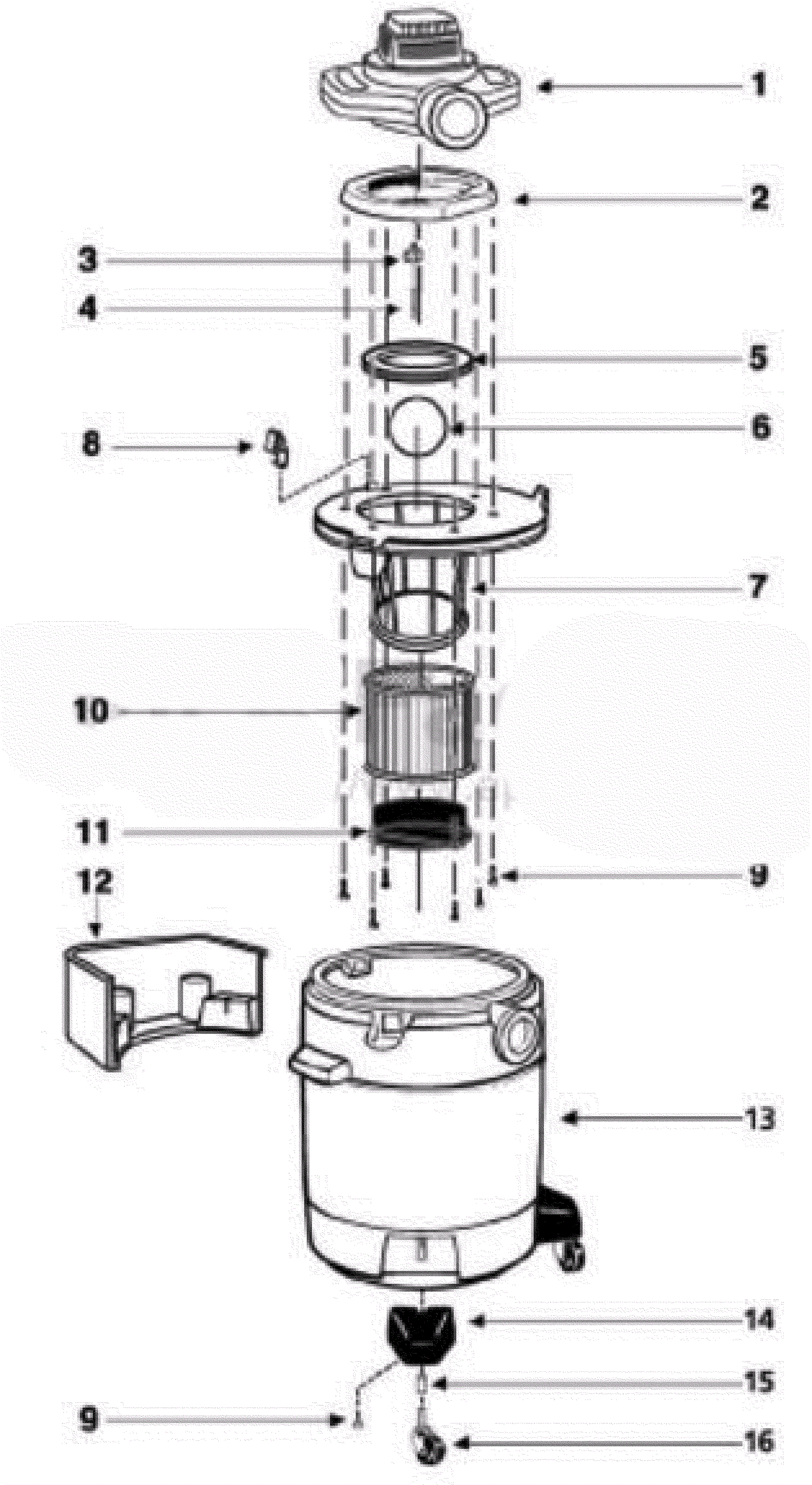

Entire Assembly

#PartDescription ReqNotesAvailability
1 228-7674 Detachable blower (OBSOLETE) 1
2 228-7675 Adapter 1
3 228-7676 Release lever (OBSOLETE) 1
4 228-7677 Spring 1
5 228-7678 Gasket (OBSOLETE) 1
7 228-7680 Lid cage and latch assembly (OBSOLETE) 1
8 228-7681 Lid latch 1
9 228-7044 Screw #10 x 3/4 hex head (OBSOLETE) 4
10 991-9104 Multi-fit pleated cartridge filter 1
12 228-7672 Accessories caddy (OBSOLETE) 1
13 228-7682 Tank assembly 1
14 228-7683 Caster foot 1
15 228-7669 Caster retainer (OBSOLETE) 1
16 228-7673 Caster (OBSOLETE) 1
