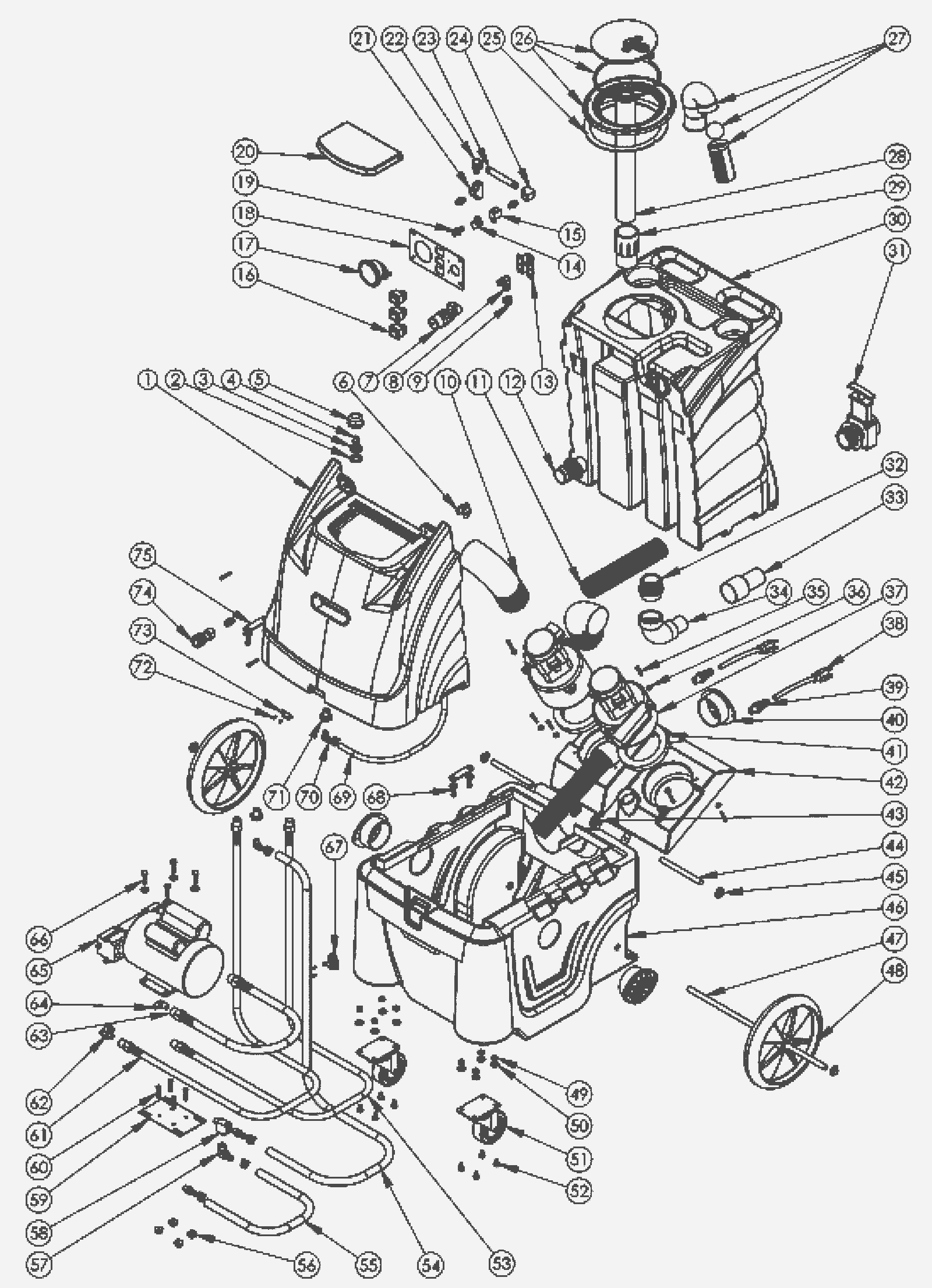

Entire Assembly

#PartDescription ReqNotesAvailability
1 228-4088 12 gallon solution tank 1
2 N/A Not available 1 (Insert) (only available with Solution tank)
3 228-4082 Bulkhead fitting 1 (Includes 4)
4 228-4082 Bulkhead fitting 1 (Fitting) (Only available with 3)
5 228-4089 1/4 hex nipple 1
6 228-8027 Solution screen 2
7a 228-4091 200PSI regulator 1
7b 228-4076 500psi regulator 1
8 228-4092 90 degree barb 3
9 228-4093 3/8 hose clamp 5
10 228-4065 Exhaust hose 1
11 228-4007 4 foot vacuum hose 2
12 228-4095 1 1/2 inch barb fitting 1
13 228-4052 500 PSI pump 1 (Bracket)
14 228-4096 45 degree street elbow 1
15 228-4090 90 degree street elbow 1
16 228-4062 Rocker switch 3
17a 228-4086 500PSI extractor gauge 1
17a 228-4097 200PSI gauge 1
17b 228-4085 200PSI switch plate 1
18b 228-4085 200PSI switch plate 1
19 228-4086 500PSI extractor gauge 1 (Connector)
20 228-4098 Lid 1
21 228-4099 1/4 inch brass tee 2
22 228-4100 90 degree street elbow 1
23 228-4101 1/4 inch brass nipple 1
24 228-4102 90 degee brass elbow 3
25 228-4103 Hatch cover gasket 1
26 228-4063 Hatch cover 1
27 228-4067 Stuf off valve 1
28 228-4104 1 1/2 inch stand pipe 2
29 228-4105 Female adapter 1
30 N/A Not available 1 (Recovery tank)
31 228-4068 Dump valve 1
32 228-4106 Fitting 1
33 228-4010 Standard hose cuff 1
34 228-4107 90 degree street elbow 3
35 228-4108 Motor manifold bolt 6
36 228-4148 Spacer 6 (Spacer)
37a N/A Not available 2 (2 stage motor)
37b 228-4071 3 stage vacuum motor with gasket 2
38 228-4060 Pigtail 1
39a 228-4061 Strain relief 1
39b 228-4109 Strain relief nut 1
40 228-4110 Exhaust grate 3
41a 228-4072 Vacuum motor gasket 2
41b 228-4073 Vacuum motor gasket 2
42 228-4074 Motor manifold 2
43 228-4111 Hinge keeper 2
44 228-4112 Hinge 2
45 228-4113 End cap 2
46 N/A Not available 1 (Base)
47 228-4115 19 inch axle 1
48 228-4069 Wheel 1
49 228-4116 Washer 18
50 228-4117 Nut 8
51 228-4078 Caster 2
52 228-4118 Bolt 12
53 N/A Not available 1 (Hose)
54 228-4138 46 inch hose 1
55 N/A Not available 1 (30 inch hose)
56 228-4117 Nut 4
57 N/A Not available 1 (Hose fitting)
58 228-4138 46 inch hose 1 (Hose fitting)
59a N/A Not available 1 (200PSI mounting plate)
59b 228-4204 Plate (OBSOLETE) 1 (500PSI mounting plate)
60 228-4108 Motor manifold bolt 4
61 N/A Not available 1 (Hose)
62 N/A Not available 1 (Hose fitting)
64 228-4121 Fitting 1
65a 228-8032 200PSI Pumptec solution pump 1
65b 228-4052 500 PSI pump 1
66 228-4122 Bolt 4
67 228-4123 Keeper 1
68 228-4124 Bolt 4
69 N/A Not available 6 (Hose)
70 228-4092 90 degree barb 3
71 228-4082 Bulkhead fitting 8
73 228-4128 Latch 1
74 228-4129 Female fitting 2
75 228-4130 Bracket 1
N/S 228-4258 H2O filter 1
