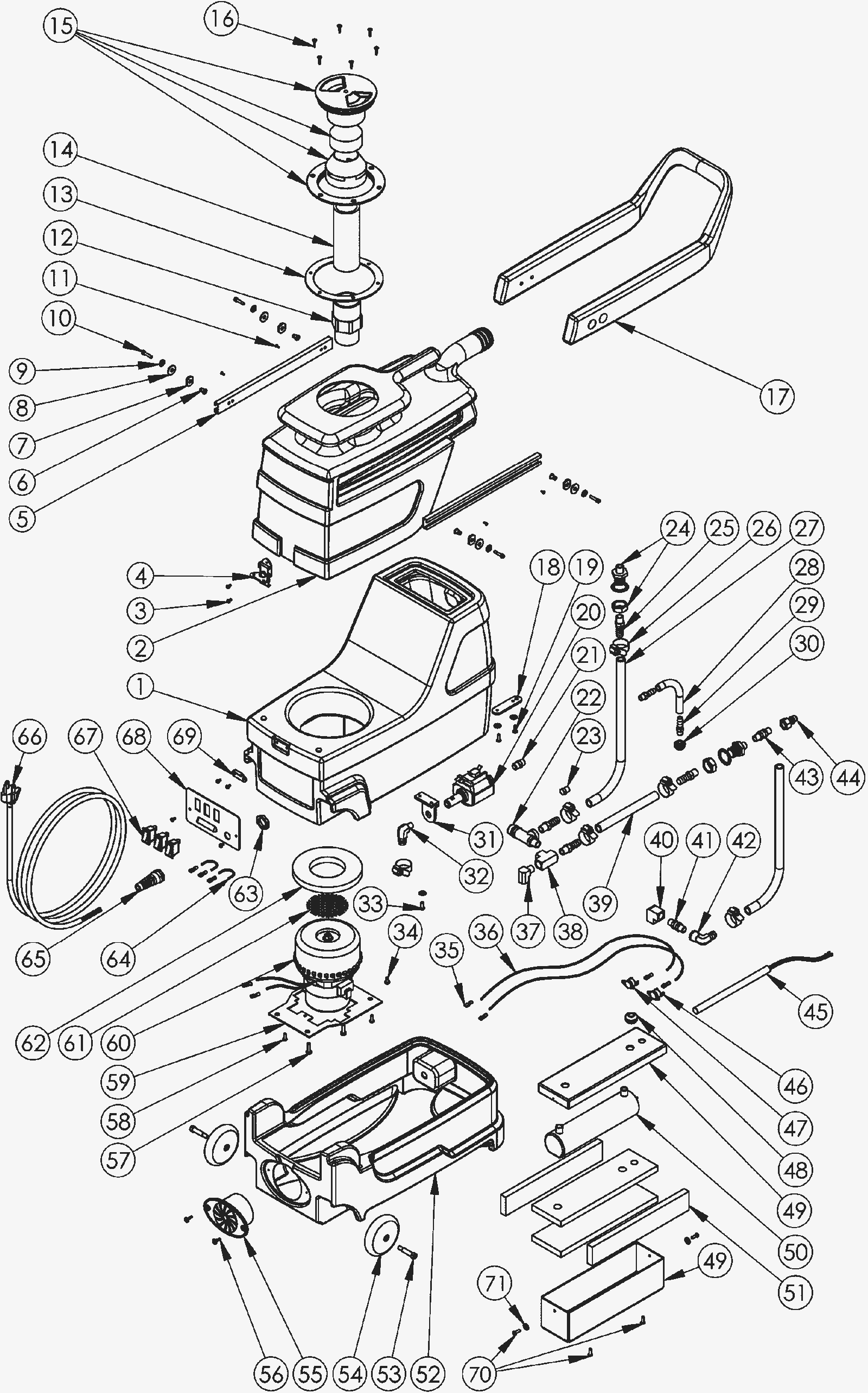

Entire Assembly

#PartDescription ReqNotesAvailability
1 228-4084 3 gallon solution tank (black) 1
2 228-4210 3 gallon recovery tank (grey) 1
3 999-1018 Screw 6-32 x 1/4 pan head phillips stainless steel 6
4 228-4123 Keeper 1
5 228-4176 C channel 2
6 228-4212 Spotter handle rivet 4
7 228-4213 Washer 1/8 nylon 4
8 228-4214 Washer 1/16 4
10 228-4215 Screw allen head 4
11 228-4245 Screw 4
12 228-4216 1 1/2 inch PVC slip thread 1
13 228-4217 Spotter hatch cover gasket 1
14 228-4104 1 1/2 inch stand pipe 1
15 228-4058 Spotter cap and float assembly 1
16 228-4184 Screw 6
17 228-4218 3 gallon heater skirt (black) 1
18 228-4130 Bracket 1
19 228-4124 Bolt 2
20 228-8024 55 PSI pump assembly 1
21 228-4166 Brass nipple 1
22 228-4190 Relief valve 1
23 228-4219 1/8 inch brass plug (OBSOLETE) 1
24 228-4082 Bulkhead fitting 2
25 228-4220 Barb 3/8 x 1/4 mpt 4
26 228-4093 3/8 hose clamp 6
27 228-4125 3/8 inch hose (black) 1
28 228-4048 Threaded hose (sold by the foot) 1
29 228-4050 1/8 inch straight nylon barb 2
30 228-4167 Strainer 1
31 228-4221 Left hand bracket 1
32 228-4222 Brass fitting 1
33 228-8012 Screw (for shoulder and waist belts 228-7021) 3
34 228-4022 Deflector screw 2
35 228-4223 Terminal connector 1
36 228-4224 Wire (purple) 1
37 228-4100 90 degree street elbow 1
38 228-4099 1/4 inch brass tee 1
39 228-4125 3/8 inch hose (black) 1
40 228-4102 90 degee brass elbow 1
41 228-4196 Valve 1
42 228-4225 Fitting 3/8 x 1/4 inch 1
43 228-4179 1/4 inch male nipple 1
44 228-4083 1/4 inch male quick disconnect 1
45 228-4187 Heater element 1
46 228-4134 Sensor 1
47 228-4134 Sensor 1
48 228-4197 Strain relief 1
49 228-4226 Tubular heater box 1
50 228-4227 Tubular heater body 1
51 228-4228 Pipewrap insulation 1
52 228-4229 3 gallon spotter handle (black) 1
53 228-4080 Wheel bolt 2
54 228-4079 Roller blade wheel 2
55 228-4110 Exhaust grate 2
56 228-4144 Screw 2
57 228-4020 Motor screw 2
58 228-4230 Screw 10-32 x 3/8 inch 2
59 228-4231 Motor mount plate 1
60 228-8036 Vacuum motor with gasket 1
61 228-8037 Stamped motor screen 1
63 228-4051 Motor gasket 1
64 228-4162 Strain relief nut 1
65 228-4018 Pigtail cord with strain relief and nut 1
66a 228-4232 Air mover cord 1 (OEM)
66b 991-5006 16/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (replacement cord)
67 228-4002 Switch 3
68 228-4233 Switch plate 1
69 228-4128 Latch 1
70 228-4181 Screw 2
71 228-4145 Washer 2
