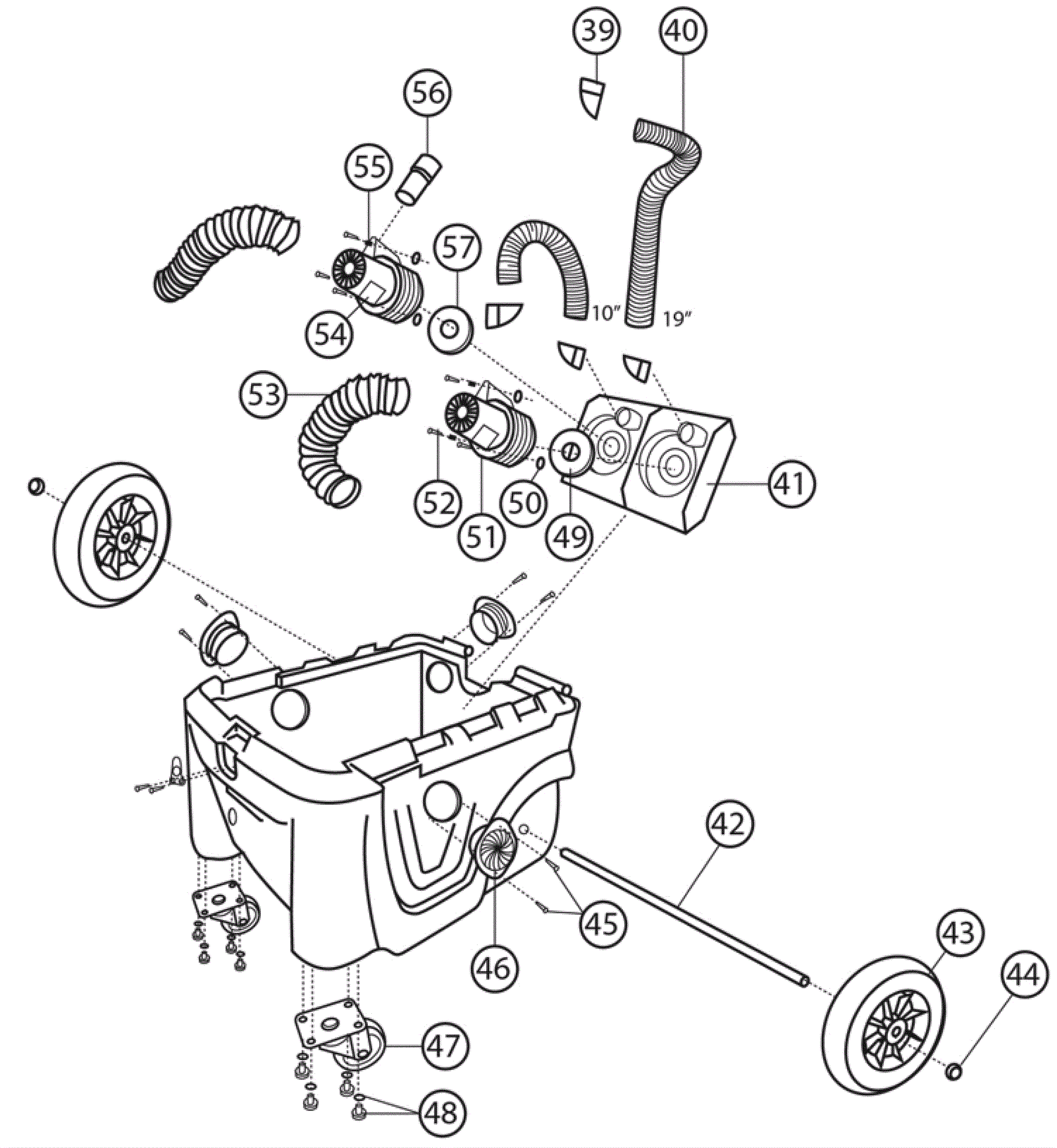

SNIPER 1200
Base Assembly with Vacuum
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
39
228-4107
90 degree street elbow
$19.80
4
usually ships 13-18 days
40
228-4007
4 foot vacuum hose
$44.00
2
usually ships 13-18 days
41
228-4074
Motor manifold
$30.80
2
usually ships 13-18 days
42
228-4115
19 inch axle
$26.40
1
usually ships 13-18 days
43
228-4069
Wheel
$81.40
2
usually ships 13-18 days
44
228-4113
End cap
$11.00
2
usually ships 13-18 days
45
228-4144
Screw
$6.60
6
usually ships 13-18 days
46
228-4110
Exhaust grate
$15.40
3
usually ships 13-18 days
47
228-4078
Caster
$37.40
2
usually ships 13-18 days
48
228-4118
Bolt
$6.60
8
usually ships 13-18 days
49
228-4072
Vacuum motor gasket
$22.00
1
usually ships 13-18 days
50
228-4145
Washer
$6.60
6
usually ships 13-18 days
51
228-4012
2 stage vacuum motor
$270.60
1
usually ships 13-18 days
52
228-4146
Screw
$6.60
6
usually ships 13-18 days
53
228-4147
Cooling duct
$17.60
2
usually ships 13-18 days
54
228-4066
3 stage vacuum motor
$341.00
1
ships same day
55
228-4148
Spacer
$11.00
6
usually ships 13-18 days
56
228-4010
Standard hose cuff
$15.40
1
usually ships 13-18 days
57
228-4073
Vacuum motor gasket
$17.60
1
ships same day
