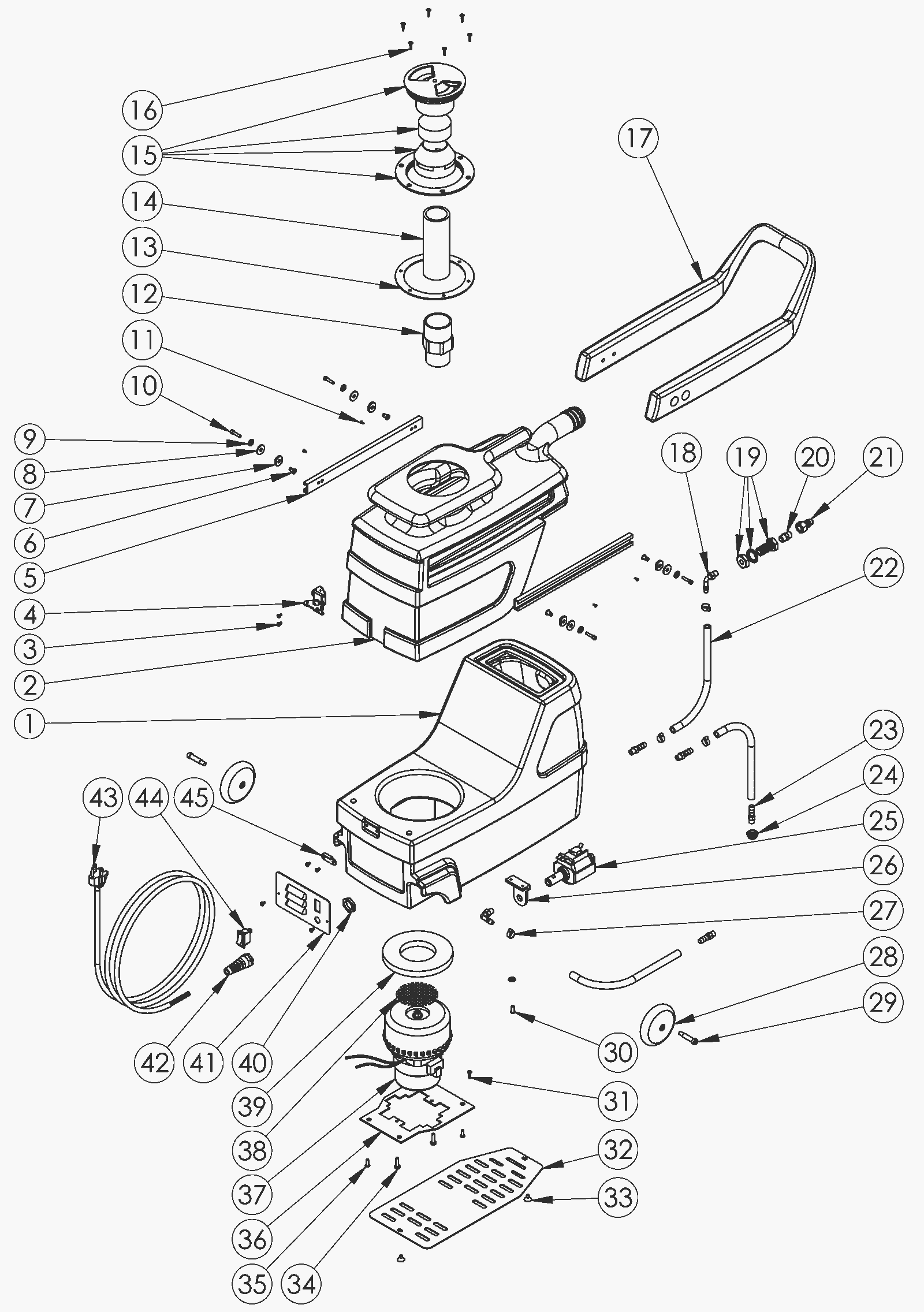

3 Gallon Spotter Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 228-4084 3 gallon solution tank (black) $136.40 1 (Tank does not come with hose fittings will need to order 228-4045, 228-4046, and 228-4044) usually ships 3-15 days
2 228-4210 3 gallon recovery tank (grey) $111.85 1 usually ships 3-15 days
3 999-1018 Screw 6-32 x 1/4 pan head phillips stainless steel $0.99 6 usually ships 1-5 days
4 228-4123 Keeper $15.40 1 usually ships 3-15 days
5 228-4176 C channel $26.40 2 usually ships 3-15 days
6 228-4212 Spotter handle rivet $8.80 4 ships same day
7 228-4213 Washer 1/8 nylon $6.60 4 usually ships 3-15 days
8 228-4214 Washer 1/16 $8.80 4 usually ships 3-15 days
9 999-0412 Washer #8 SAE flat $0.99 5 ships same day
10 228-4215 Screw allen head $6.60 4 usually ships 3-15 days
11 228-4245 Screw $6.60 4 usually ships 3-15 days
12 228-4216 1 1/2 inch PVC slip thread $13.20 1 usually ships 3-15 days
13 228-4217 Spotter hatch cover gasket $17.60 1 usually ships 3-15 days
14 228-4104 1 1/2 inch stand pipe $13.20 0.6 ft usually ships 3-15 days
15 228-4058 Spotter cap and float assembly $39.60 1 ships same day
16 228-4184 Screw $6.60 6 usually ships 3-15 days
17 228-4229 3 gallon spotter handle (black) $30.80 1 usually ships 3-15 days
18 228-4044 90 degree nylon barb $7.33 2 usually ships 3-15 days
19 228-4045 Bulk head fitting $16.50 1 usually ships 3-15 days
20 228-4046 1/8 inch brass female coupler $11.00 1 usually ships 3-15 days
21 228-4047 1/8 inch male quick disconnect $15.40 1 usually ships 3-15 days
22 228-4048 Threaded hose (sold by the foot) $11.00 2.5 ft ships same day
23 228-4050 1/8 inch straight nylon barb $8.80 4 usually ships 3-15 days
24 228-4167 Strainer $11.00 1 usually ships 3-15 days
25 228-8024 55 PSI pump assembly $121.00 1 ships same day
26 228-4221 Left hand bracket $19.80 1 usually ships 3-15 days
27 228-4243 Oetiker clamp $8.80 4 usually ships 3-15 days
28 228-4079 Roller blade wheel $20.16 2 usually ships 3-15 days
29 228-4080 Wheel bolt $9.16 2 usually ships 3-15 days
30 228-8012 Screw (for shoulder and waist belts 228-7021) $4.40 1 usually ships 3-15 days
31 228-4022 Deflector screw $6.60 1 usually ships 1-5 days
32 228-4244 Bottom base plate $30.80 1 usually ships 3-15 days
33 228-4245 Screw $6.60 2 usually ships 3-15 days
34 228-4020 Motor screw $6.60 2 usually ships 1-5 days
35 228-4230 Screw 10-32 x 3/8 inch $6.60 2 usually ships 3-15 days
36 228-4231 Motor mount plate $15.40 1 usually ships 3-15 days
37 228-8036 Vacuum motor with gasket $259.60 1 usually ships 3-15 days
38 228-8037 Stamped motor screen $8.80 1 usually ships 3-15 days
39 228-4051 Motor gasket $11.00 1 usually ships 3-15 days
40 228-4162 Strain relief nut $4.40 1 usually ships 3-15 days
41 228-4233 Switch plate $13.20 1 usually ships 3-15 days
42 228-4018 Pigtail cord with strain relief and nut $30.80 1 usually ships 3-15 days
43 228-4232 Air mover cord $77.00 1 usually ships 3-15 days
44 228-4002 Switch $16.50 2 usually ships 3-15 days
45 228-4128 Latch $19.80 1 usually ships 3-15 days
N/S 228-4045 Bulk head fitting $16.50 1 usually ships 3-15 days
N/S 228-4046 1/8 inch brass female coupler $11.00 1 usually ships 3-15 days
N/S 228-4044 90 degree nylon barb $7.33 1 usually ships 3-15 days
