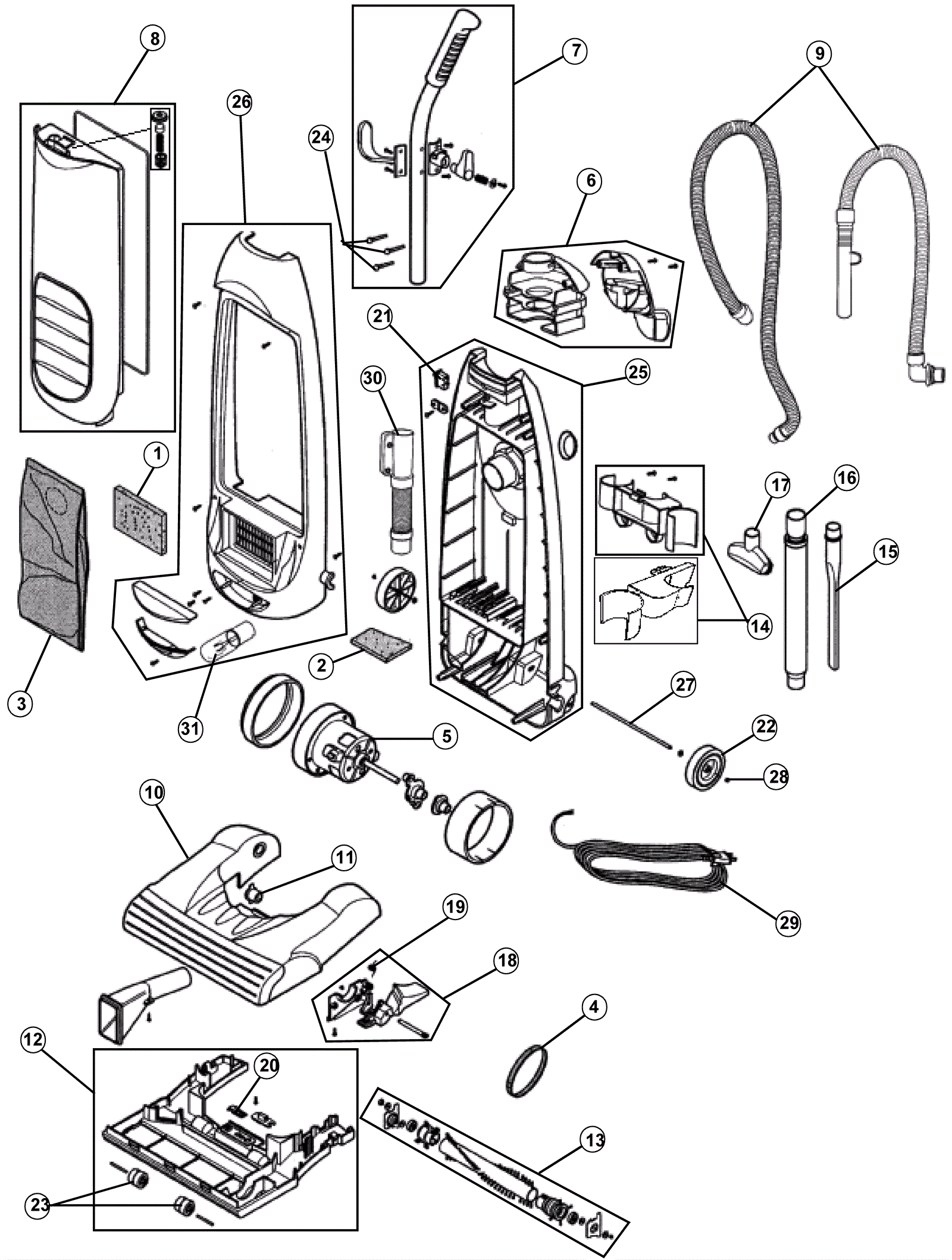

RY5300 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1a 228-3031 Exhaust filter (OBSOLETE) $2.20 usually ships 6-16 days
1b 228-3032 Exhaust filter (pkg of 2) $7.70 usually ships 1-5 days
2 228-3033 Bag chamber filter $4.40 usually ships 1-5 days
3a 228-8030 Vacuum bag - type T (sold individually) (OBSOLETE) $1.98 usually ships 1-5 days
3b 228-8031 Vacuum bags - type T (pkg of 7) $15.39 usually ships 1-5 days
4 228-3034 Style 16 belt $2.75 usually ships 1-5 days
5 228-3035 Motor assembly $104.39 usually ships 1-5 days
6 228-3036 Carrying handle with screws (orange) $10.96 usually ships 1-5 days
7 228-3037 Handle assembly (OBSOLETE) $18.92 usually ships 6-16 days
8 228-3038 Front panel with gasket (orange) $18.39 usually ships 1-5 days
9a 228-3039 Flexible hose assembly (old style) $23.23 usually ships 1-5 days
9b 228-3040 Flexible quick draw hose assembly with handle (OBSOLETE) $57.73 usually ships 6-16 days
10 228-3041 Base cover (orange) $16.70 usually ships 1-5 days
11 228-3042 Holder (OBSOLETE) $1.43 usually ships 6-16 days
12 228-3043 Base assembly (orange) $7.15 usually ships 1-5 days
13 228-3044 Brush roll assembly (OBSOLETE) $27.81 usually ships 1-5 days
14 228-3045 Accessory holder (gray) $3.06 usually ships 1-5 days
15 228-3046 Crevice tool $2.31 usually ships 1-5 days
16 228-3047 Wand assembly $8.65 usually ships 1-5 days
17 228-3048 Dusting brush $4.00 usually ships 1-5 days
18 228-3049 Handle release pedal assembly $14.41 usually ships 1-5 days
19 228-3050 Handle release pedal spring $7.22 usually ships 1-5 days
20 228-3051 Slide piece $11.53 usually ships 1-5 days
21 228-3052 Switch assembly $6.71 usually ships 1-5 days
22 228-3053 Large wheel $1.43 usually ships 1-5 days
23 228-3054 Small wheel $11.53 usually ships 1-5 days
24 228-3055 Handle screw $1.43 usually ships 1-5 days
25a 228-3056 Rear panel (orange) $24.20 usually ships 1-5 days
25b 228-3057 Rear panel (blue) $40.68 usually ships 1-5 days
26 228-3058 Front body cover (orange) $40.68 usually ships 1-5 days
27 228-3059 Wheel shaft $2.88 usually ships 1-5 days
28 228-3060 Wheel clip $1.65 usually ships 1-5 days
29 228-3061 50 foot cord 3 wire (orange) $85.84 usually ships 6-16 days
30 228-3062 Lower hose $12.23 usually ships 1-5 days
31 228-3063 15 watt light bulb $3.74 usually ships 1-5 days
