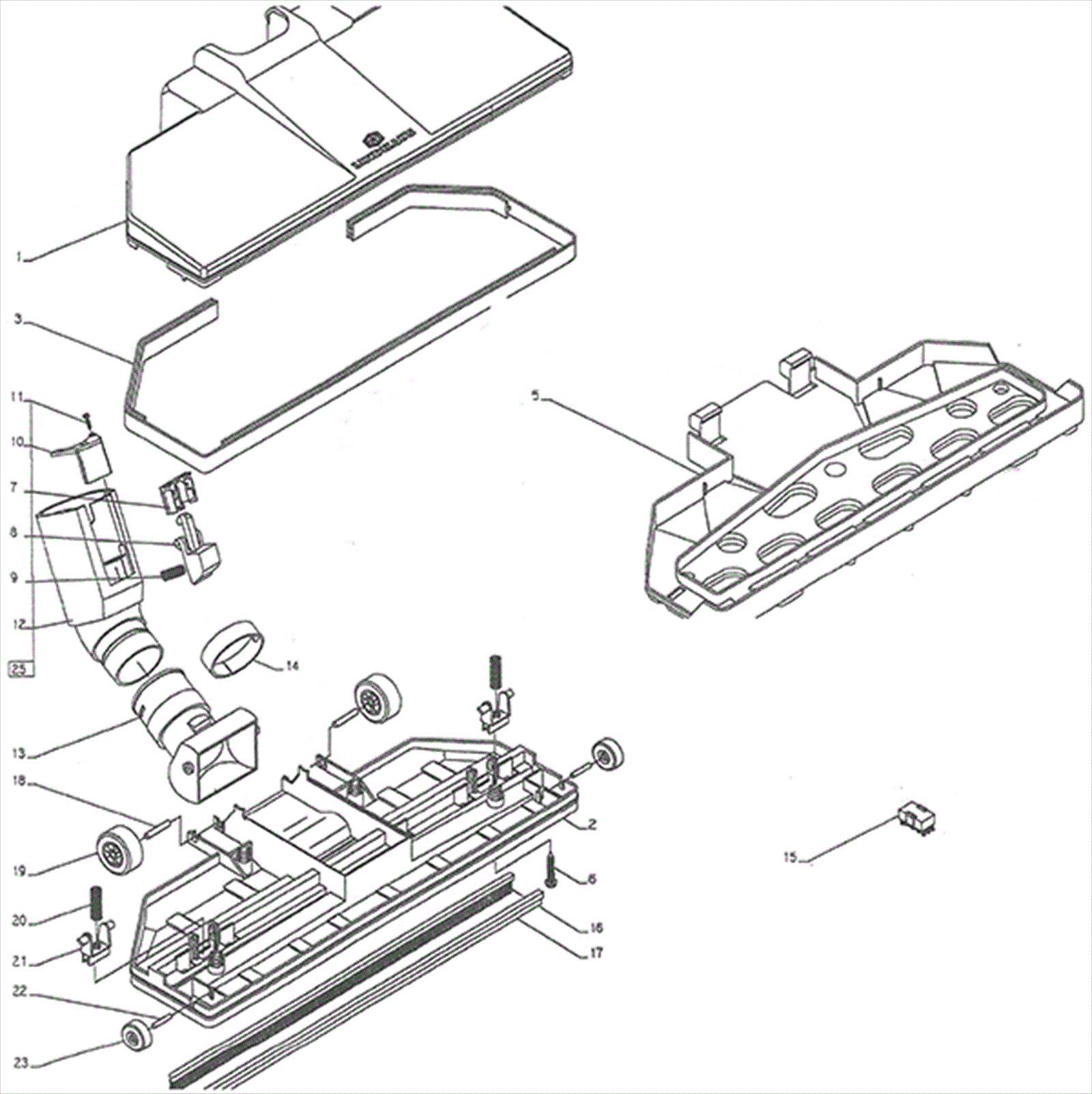

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
228-2448
|
Cover (light grey) |
1 |
|
|
1b |
228-2449
|
Cover (silver red) |
1 |
|
|
1c |
228-2450
|
Cover (silver blue) |
1 |
|
|
2a |
228-2451
|
Base |
1 |
|
|
2b |
228-2453
|
Base with bristles |
1 |
|
|
3 |
228-2452
|
Floor tool bumper |
1 |
|
|
5 |
228-2958
|
Felt pad replacement |
1 |
|
|
6 |
228-2959
|
Screw 3.9 x 22 |
1 |
|
|
7 |
228-2960
|
Contacts guide |
1 |
|
|
8 |
228-2961
|
Hook |
1 |
|
|
9 |
228-2962
|
Spring |
1 |
|
|
10 |
228-2963
|
Blocking guide bracket |
1 |
|
|
11 |
228-2964
|
Screw 2.9 x 19 |
1 |
|
|
12 |
228-2965
|
Connector and curve |
1 |
|
|
13 |
228-2966
|
Floor tool joint |
1 |
|
|
14 |
228-2967
|
Floor tool clip |
1 |
|
|
15 |
228-2968
|
Rear brush |
1 |
|
|
16 |
228-2969
|
Base bristles |
1 |
|
|
17 |
228-2970
|
Squeegee |
1 |
|
|
18 |
228-2971
|
Big wheel pin |
1 |
|
|
19 |
228-2972
|
Big wheel |
1 |
|
|
20 |
228-2973
|
Strip spring |
1 |
|
|
21 |
228-2974
|
Strip support |
1 |
|
|
22 |
228-2975
|
Floor tool front wheel pin |
1 |
|
|
23 |
228-2976
|
Small wheel |
1 |
|
|
25 |
228-2977
|
Floor tool joint complete |
1 |
(includes 7-12) |
|
N/S |
228-2512
|
Hard floor tool |
1 |
(complete hard floor tool) |
|
N/S |
228-2979
|
Felt floor tool complete (white) |
1 |
(complete felt flool tool) |
|
