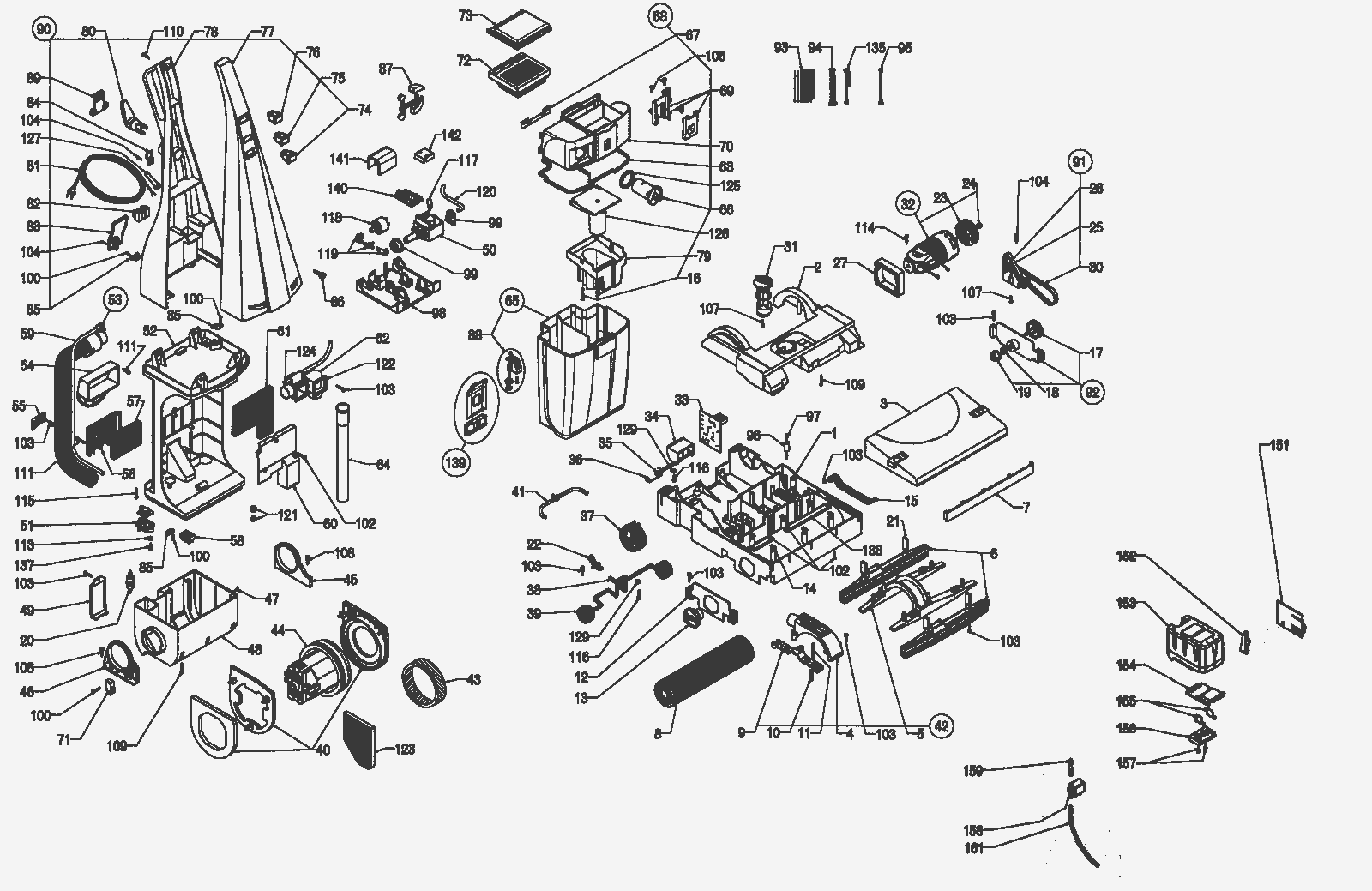

Entire Machine

#PartDescription ReqNotesAvailability
1a 228-2740 12 inch base housing 1 (lw30) (lw30 l-ion)
1b 228-2865 14 inch Base housing 1 (lw38)
2a 228-2741 Brush motor cover (grey) 1 (lw30) (lw38)
2b 228-2842 Brush motor cover (grey) 1 (lw30 l-ion)
3a 228-2742 12 inch base housing cover (grey) 1 (lw30)
3b 228-2843 12 inch base housing cover (grey) 1 (lw30 l-ion)
3c 228-2866 14 inch Base housing cover (grey) 1 (lw38)
4 228-2743 Conveyor cover 1
5a 228-2744 12 inch conveyor 1 (lw30) (lw30 l-ion)
5b 228-2867 14 inch Conveyor 1 (lw38)
6a 228-2017 Squeegee kit LW30 2 (lw30) (lw30 l-ion)
6b 228-2745 12 inch carpet nozzle kit for carpet encapsulation (2 pcs) 2 (lw30) (lw30 l-ion)
6c 228-2021 Squeegee kit LW38 2 (lw38)
7a 228-2746 12 inch front bumper (blue) 1 (lw30) (lw30 l-ion)
7b 228-2868 14 inch Front bumper 1 (lw38)
8a 228-2454 Brush (black) 1 (lw30) (lw30 l-ion)
8b 228-2747 12 inch soft bristle brush roll (white) 1 (lw30) (lw30 l-ion)
8c 228-2748 12 inch soft pad smooth polishing brush roll (white) 1 (lw30) (lw30 l-ion)
8d 228-2749 12 inch stiff bristle brush roll (red) 1 (lw30) (lw30 l-ion)
8e 228-2750 12 inch stiff pad smooth scouring brush roll (red) 1 (lw30) (lw30 l-ion)
8f 192-9929 13 inch brush assembly (black) - CYLINDRICAL 1 (lw38)
8g 228-2869 14 inch Soft bristle brush roll (white) 1 (lw38)
8h 228-2870 14 inch Soft pad smooth polishing brush roll 1 (lw38)
8i 228-2871 14 inch Stiff bristle brush roll (red) 1 (lw38)
8j 228-2872 14 inch Stiff pad smooth scouring brush roll (red) 1 (lw38)
9 228-2751 Conveyor support 1
10 228-2752 Single spring nozzle 1
11 228-2753 Single screw M4 x 40 1
12 228-2754 Side wheels support 1
13 228-2755 Brush support with bearings 1
14 228-2756 Single clip and screw (red) 1
15 228-2757 Belt cover 1
16 228-2758 Single screw 3.5 x 38 IX 1
17 228-2759 Pulley 1
18 228-2760 D.10 V ring 1
19 228-2719 Drive joint base 1
20 228-2761 Single pump protect filter barrel 1
21 228-2762 Clip squeegee (red) 1
22 228-2763 Base lift lever 1
23 228-2764 Fan pulley 1
24 228-2765 Single M5 nut 1
25 228-2766 8mm timing belt L.174 1
26 228-2590 Double pulley with bearings 1
27 228-2144 Filter 1
30 228-2767 8mm timing belt L.327 1
31 228-2768 Adjusting height knob (blue) 1
32a 228-2769 120V brush motor 1 (lw30) (lw38)
32b 228-2844 36V brush motor R74/35V CC W.150 1 (lw30 l-ion)
32c 228-2063 Carbon brush (pkg of 2) 2
33a 228-2770 120V circuit board 1 (lw30) (lw38)
33b 228-2845 36 V circuit board brush motor 1 (lw30 l-ion)
34 228-2771 Foot pedal 1
35 228-2772 Foot pedal shaft 1
36 228-2773 Foot pedal spring 1
37 228-2615 Rear wheel assembly 1
38 228-2774 Front wheel shaft 1
39 172-1409 Front wheel rubber 1
40 228-2111 Vacuum motor gasket kit 3
41 228-2133 Base tube kit 1
42a 228-2775 12 inch conveyor nozzle kit (1pc) 1 (lw30) (lw30 l-ion)
42b 228-2873 14 inch Conveyor nozzle kit 1 (lw38)
43 228-2029 Vacuum motor filter 1
44a 192-9884 120V vacuum motor and gasket 1 (lw30) (lw38) (includes 40)
44b 228-2846 36V vacuum motor with gaskets 1 (lw30 l-ion) (includes 40)
45 228-2776 Left hand motor housing support 1
46 228-2777 Right hand motor housing support 1
47 228-2118 Motor housing gasket 1
48 228-2778 Motor housing 1
49 228-2780 Motor housing cover 1
50 192-9893 120V pump 1 (lw30) (lw38)
51a 228-2456 Valve kit 4
51b 228-2781 Filter (blue) 1
52 228-2782 Upper housing 1
53a 228-2783 Suction hose assembly 1 (lw30) (lw38)
53b 228-2847 Suction hose assembly 1 (lw30 l-ion)
54 228-2784 Transport handle 1
55 228-2785 Hose hook 1
56 228-2786 Exhaust filter grill 1
57 228-2117 Exhaust filter 1
58a 228-2787 16A 3 position terminal block 1 (lw30) (lw38)
58b 228-2788 16A 4 position terminal block 1 (lw30) (lw38)
58c 228-2848 16A 5 position terminal block 1 (lw30 l-ion)
59 228-2789 D.4 L.730mm tube 1 (lw30) (lw38)
60 228-2790 Air conveyor 1
61 228-2116 Air conveyor filter 1
62 228-2791 Air/Water conveyor 1
63 228-2792 Filter housing gasket 1
64 228-2115 Internal tube with gasket 1
65 228-2114 Water tank 1 (includes 88)
66 228-2793 Dosing cup 1
67 228-2795 Rear filter housing latch 1
68 228-2796 Complete eco force filter housing (grey) 1
69 228-2797 Front filter housing latch kit 1
70a 228-3169 Filter housing 1 (This tank has now been updated. If replacing this part confirm that you do not have an older tank with a catch, if you do you will need to order 70b with this new tank if replacing an older tank with a catch)
70b 228-2839 Water tank eco force front hook 1
71 228-2798 Microswitch 1
72 228-2030 Foam filter 1
73 228-2060 Filter cover 1
74 228-2874 Main switch 1
75 228-2800 Vacuum switch 1
76a 228-2801 Pump switch 1 (lw30) (lw38)
76b 228-2034 Pump switch 1 (lw30 l-ion)
77a 228-2802 Front handle (grey) 1 (lw30) (lw38)
77b 228-2802 Front handle (grey) 1 (lw30 l-ion)
78a 228-2803 Rear handle (grey) 1 (lw30) (lw38)
78b 228-2863 Rear handle 1 (lw30 l-ion)
79 228-2804 Anti-splash 1
80 228-2457 Rotating cord hook 1 (lw30) (lw38)
81 181-1201 18/3 power cord 40 foot 1 (lw30) (lw38)
82a 228-2805 16A 2 position terminal block 1 (lw30) (lw38)
82b 228-2787 16A 3 position terminal block 1 (lw30) (lw38)
83 228-2807 Terminal block cover 1 (lw30) (lw38)
84 228-2808 Upper cord hook strain relief (grey) 1 (lw30) (lw38)
85 228-2134 Clamp 1
86 228-2809 Single screw M6 x 20 1
87 228-2810 Rubber cup kit (gray) (4pcs) 1
88 228-2811 Water tank valve kit (1pc) 1
89 228-2812 Upper anti-tearing cord safety guard strain relief 1 (lw30) (lw38)
90a 228-2813 120V complete electric panel 1 (lw30) (lw38)
90b 228-2849 36V electric panel complete with circuit board 1 (lw30 l-ion)
91 228-2814 Central transmission support with belts 1
92 228-2815 Transmission support complete 1
93a 228-2816 120V electric panel wire kit 1 (lw30) (lw38)
93b 228-2850 36V electric panel wire kit 1 (lw30 l-ion)
94a 228-2817 120V upper housing wire kit 1 (lw30) (lw38)
94b 228-2851 36V upper housing wire kit 1 (lw30 l-ion)
95a 228-2818 120V base housing wire kit 1 (lw30) (lw38)
95b 228-2852 36V base housing wire kit 1 (lw30 l-ion)
96 228-2819 Side wheel 1
97 228-2820 Side wheel shaft 1
98 228-2821 Pump holder 1 (lw30) (lw38)
99 228-2822 Pump rubber support 1 (lw30) (lw38)
100 228-2523 Screw 2.9 x 16 1
102a 228-2823 Single screw 3.5 x 9.5 1 (lw30) (lw38)
102b 228-2853 Single screw 3.5 x 9.5 IX 1 (lw30 l-ion)
103 228-2824 Single screw 3.5 x 13 IX 1
104 228-2531 Screw 3.9 x 16 1
106 228-2825 Single screw 3.5 x 16 1
107a 228-2826 Single screw 4 x 12 Hilo 1 (lw30) (lw38)
107b 228-2520 Screw 3.9 x 13 TG 1 (lw30 l-ion)
108a 228-2645 Screw 3.5 x 25 1 (lw30) (lw38)
108b 228-2695 Screw 3.5 x 22 1 (lw30 l-ion)
109a 228-2695 Screw 3.5 x 22 1 (lw30) (lw38)
109b 228-2645 Screw 3.5 x 25 1 (lw30 l-ion)
110a 228-2648 Screw 3.5 x 32 1 (lw30) (lw38)
110b 228-2854 Single screw 3.9 x 32 1 (lw30 l-ion)
111 228-2697 Screw 3.9 x 22 1
113 228-2827 Single washer 4.3 D.12 1
114 228-2649 Screw 3.9 x 19 1
115 228-2828 Single screw 4 x 45 hilo 1
116 228-2829 Single screw 5 x 16 hilo 1
117 228-2830 Pump cord with thermal protector 1 (lw30) (lw38)
118 228-2831 Electric pressure switch 1
119 228-2131 Connection tube kit 1 (lw30) (lw38)
120 228-2132 Tube 1 (lw30) (lw38)
121a 228-2144 Filter 3 (includes 20) (not as shown on diagram)
121b 228-2781 Filter (blue) 1
122 192-9872 Gasket (pkg of 2) 2
123 228-2028 Filter 1
124 228-2833 Single O-ring 1
125 228-2122 Dosing cup gasket 1
126 228-2834 Trimmer 1
127 228-2146 Strain relief 1 (lw30) (lw38)
129 228-2827 Single washer 4.3 D.12 1
135a 228-2836 120V motor housing wire kit 1 (lw30) (lw38)
135b 228-2855 36V motor housing wire kit 1 (lw30 l-ion)
137 228-2826 Single screw 4 x 12 Hilo 1
138a 228-2838 12 inch short cover pipe kit (2 pcs) 2 (lw30) (lw30 l-ion)
138b 228-2875 14 inch Long cover pipe kit 2 (lw38)
139 228-2839 Water tank eco force front hook 1
140 292-0478 Water sensor 1 (lw30) (lw38)
141 228-2840 Pressure switch protection 1 (lw30) (lw38)
142 228-2841 Pump protection 1 (lw30) (lw38)
151 228-2856 36V circuit board 1 (lw30 l-ion)
152 228-2857 Rear handle lens 1 (lw30 l-ion)
153 228-2458 6Ah L-ion battery 1 (lw30 l-ion)
154 228-2858 Battery support 1 (lw30 l-ion)
155 228-2859 Single contacts L-ion battery 1 (lw30 l-ion)
156 228-2860 Contact cover 1 (lw30 l-ion)
157 228-2696 Screw 3.5 x 16 1 (lw30 l-ion)
158 228-2861 36V electrovalve 1 (lw30 l-ion)
159 228-2862 Tube D.4 L.25mm 1 (lw30 l-ion)
161 228-2864 Tube D.3 L.340mm 1 (lw30 l-ion)
N/S 228-2466 Upholstery kit 2 (lw30) (lw38) (upholstery kit)
N/S 228-2465 Window cleaning kit 1 (lw30) (lw38) (window cleaning kit) (requires hose from upholstery kit)
