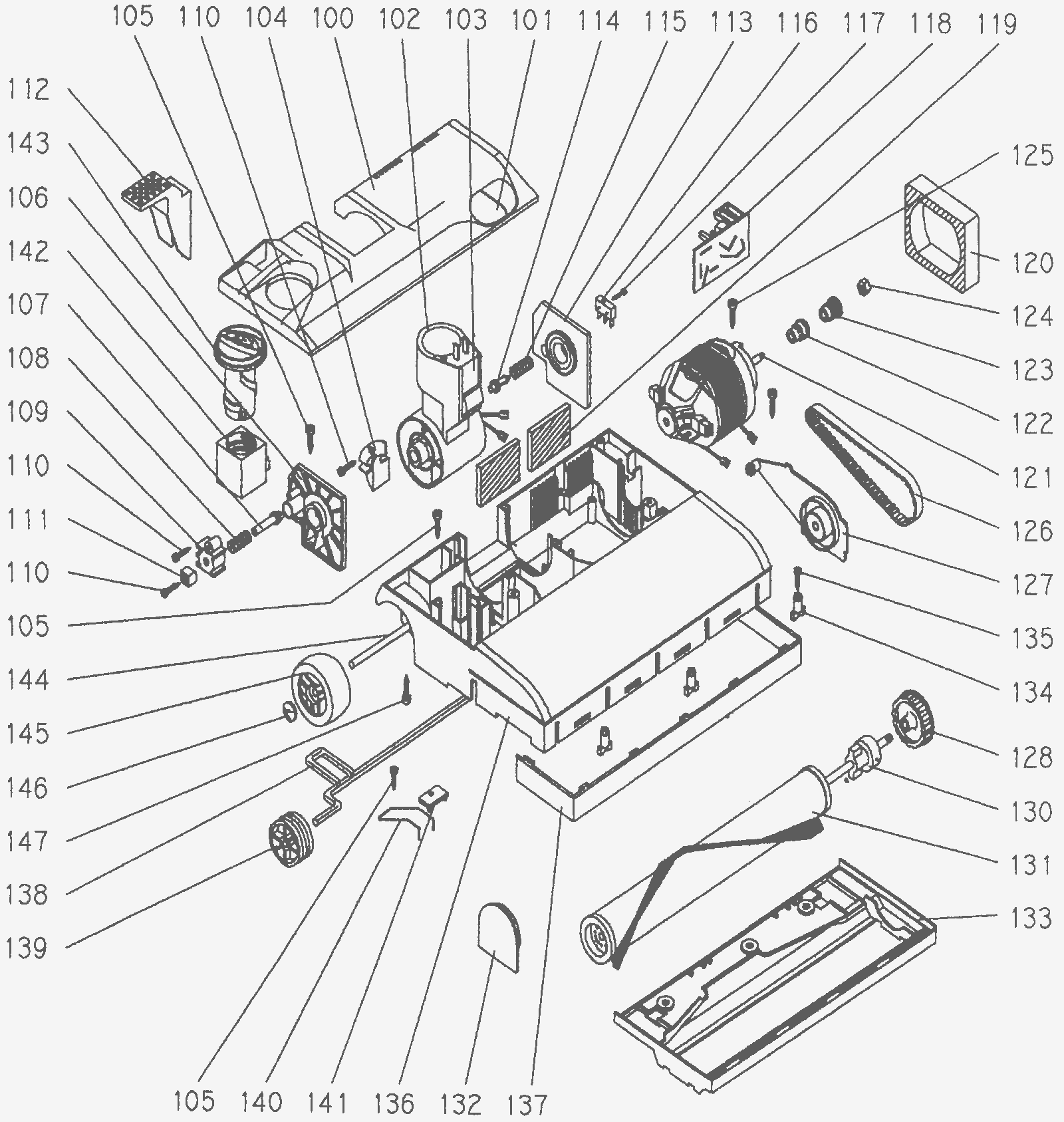

| # | Part | Description |
Req | Notes | Availability |
|---|
100a |
228-9154
|
Base housing cover (blue) |
1 |
|
|
100b |
228-9164
|
Base housing cover (green) |
1 |
|
|
101 |
228-2062
|
Red and green lens set |
1 |
|
|
102 |
228-2902
|
2 wire joint complete domestic |
1 |
|
|
103 |
228-2903
|
Joint kit |
1 |
|
|
104a |
228-2519
|
Joint pin slide |
1 |
(blue model) |
|
104b |
228-2904
|
Joint pin slide |
1 |
(green model) |
|
105 |
228-2650
|
Screw 3.9x13 |
3 |
|
|
106 |
228-2529
|
Right hand joint support |
1 |
|
|
107 |
228-2521
|
Plunger |
1 |
|
|
108 |
172-1417
|
Spring |
1 |
|
|
109 |
228-2522
|
Bushing |
1 |
|
|
110 |
228-2523
|
Screw 2.9 x 16 |
3 |
|
|
111 |
228-2524
|
Slide |
1 |
|
|
112a |
228-9155
|
Foot pedal (light gray) |
1 |
|
|
112b |
228-9156
|
Foot pedal (black) |
1 |
|
|
112c |
228-2068
|
Foot pedal (grey) |
1 |
|
|
113 |
228-2525
|
Left hand joint support |
1 |
|
|
114 |
172-1246
|
Switch activator pin |
1 |
|
|
115 |
172-1466
|
Spring |
1 |
|
|
116 |
172-1249
|
Brush motor switch |
1 |
|
|
117 |
228-2526
|
Screw 2.2 x 16 |
1 |
|
|
118 |
228-2530
|
Circuit board |
1 |
|
|
119 |
228-2064
|
Exhaust filter |
2 |
|
|
120 |
228-2144
|
Filter |
1 |
|
|
121a |
228-2141
|
120V motor |
1 |
|
|
121b |
228-2063
|
Carbon brush (pkg of 2) |
1 |
|
|
121c |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
122 |
172-1253
|
Metal spacer |
1 |
|
|
123 |
172-1256
|
Metal pulley |
1 |
|
|
124a |
192-4209
|
Nut M6 left handed hex |
1 |
|
|
124b |
172-1255
|
Nut |
1 |
|
|
125 |
228-2531
|
Screw 3.9 x 16 |
1 |
|
|
126 |
228-2024
|
Belt |
1 |
|
|
127 |
228-2532
|
Left hand support |
1 |
|
|
128 |
228-2135
|
Toothed gear |
1 |
|
|
130 |
228-2533
|
12 inch brush shaft |
1 |
|
|
131a |
228-2535
|
12 inch 2 bristle brush roll |
1 |
|
|
131b |
228-2536
|
12 inch 1 bristle brush roll |
1 |
|
|
132 |
228-2066
|
Right hand brush support with bearing |
1 |
|
|
133a |
228-3166
|
12 inch brush shoe plate |
1 |
(blue model) |
|
133b |
228-2537
|
12 inch base shoe plate |
1 |
(green model) |
|
134 |
228-2181
|
Roller cover clip (pkg of 20) |
1 |
|
|
135 |
228-2644
|
Screw 3.5 x 9.5 TG |
1 |
|
|
136a |
228-9158
|
12 inch base housing with clips (blue) |
1 |
|
|
136b |
228-9165
|
12 inch base housing (green) |
1 |
|
|
136c |
228-2542
|
Brass grommet |
1 |
(for 136b) |
|
137a |
228-9159
|
12 inch bumper (light gray) |
1 |
|
|
137b |
228-9160
|
12 inch bumper (black) |
1 |
|
|
137c |
228-2543
|
12 inch bumper (dark gray) |
1 |
|
|
138 |
215-0994
|
Front axle |
1 |
|
|
139 |
172-1409
|
Front wheel rubber |
1 |
|
|
140 |
228-2544
|
Axle spring |
1 |
|
|
141 |
228-2545
|
Stop plate spring |
1 |
|
|
142 |
228-2136
|
Brush adjuster |
1 |
|
|
143a |
228-9161
|
Adjusting knob (light gray) |
1 |
|
|
143b |
228-2546
|
Adjusting knob (dark gray) |
1 |
|
|
144 |
228-2547
|
Rear axle |
1 |
|
|
145 |
228-2139
|
Wheel |
1 |
|
|
146 |
192-6672
|
Cap |
1 |
|
|
147 |
228-2548
|
Screw 3.9 x 19 |
1 |
|
|
N/S |
228-2914
|
Deep cleaning system converter |
1 |
|
|
N/S |
228-2517
|
Throat cover with spring and felt strip |
1 |
|
|
N/S |
172-1487
|
Felt for brush housing |
1 |
|
|
N/S |
228-2911
|
12 quarts pure power oxy-gen |
1 |
|
|
N/S |
228-2912
|
2 liter all angle sprayer bottle |
1 |
|
|
N/S |
228-9163
|
12 inch power nozzle replacement (blue) |
1 |
(blue model) |
|
N/S |
228-2538
|
Screw M6 x 9mm |
1 |
(green model) |
|
N/S |
228-2539
|
Star washer |
1 |
(green model) |
|
N/S |
228-9166
|
12 inch power brush replacement (obsolete) |
1 |
(green model) |
|
