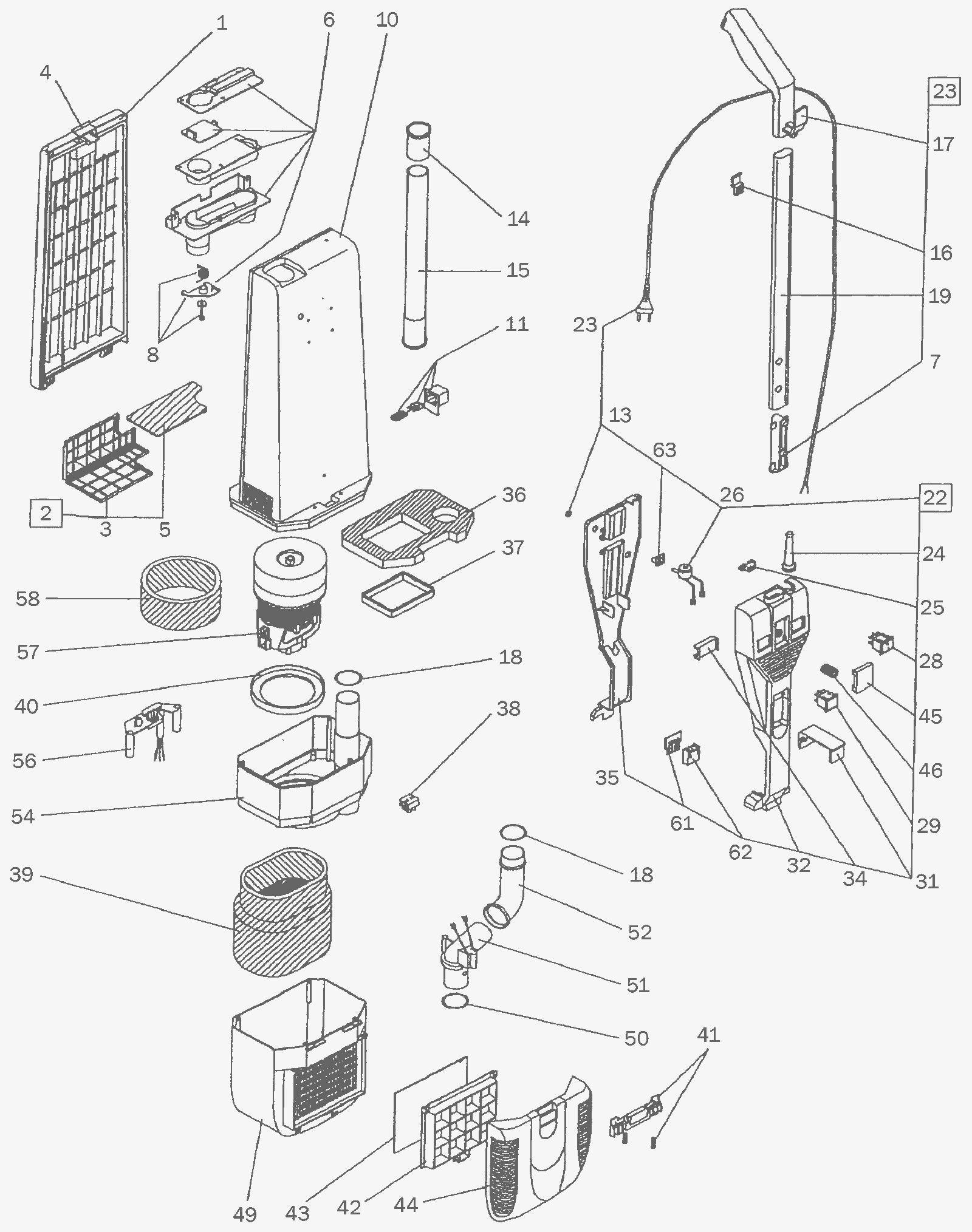

Body Assembly

#PartDescription ReqNotesAvailability
1a 228-9128 Bag housing cover (blue) 1
1b 228-9129 Bag housing cover (green) 1
2 228-9130 Grill complete 1 (includes 3 and 5)
3 228-2151 Filter cartridge 1
4a 228-2492 Bag door latch with spring (dark gray) 1
4b 228-9131 Bag door latch with spring (green) 1
5a 272-2578 Filter 1
5b 181-2025 Internal filter (pkg of 5) 1
6 228-9132 Bag entrance with safety support 1
7 228-2476 2 position handle button assembly 1
8 228-2474 Safety support kit (includes 1 support and hardware) 1
10a 228-9133 Bag housing (blue) 1
10b 228-9134 Bag housing (green) 1
11 228-2480 Relief valve 1
13 181-1193 O-ring 1
14 228-2935 Sleeve tube 1
15 228-2936 Internal tube 1
16 228-2808 Upper cord hook strain relief (grey) 1
17 228-9135 Handle grip (light gray) 1
18 228-2150 O-ring 2
19 228-2482 Chrome handle tube 1
21 228-9136 Handle tube assembly 1 (includes 7, 16-17, 19)
22a 228-9137 Electric system assembly (blue) 1 (includes 24-25, 28-29, 31, 45-46)
22b 228-9138 Electric system assembly (green) 1 (includes 24-25, 28-29, 31, 45-46)
23 228-2581 2 prong 2 wire cord 2 x 17 1
24 228-2041 Strain relief 1
25 228-2134 Clamp 1
26 181-1204 Vacuum sensor 1
28 228-2486 3 way switch 1
29 172-1425 Red indicator light 1
31 228-9139 Lower cord hook (light gray) 1
32a 228-9140 Handle cover (blue) 1
32b 228-9141 Handle cover (green) 1
34 228-2488 Comb wire holder 1
35a 228-9142 Frame handle (blue) 1
35b 228-9143 Frame handle (green) 1
36 228-2942 Upper vacuum filter 1
37 181-1212 Exhaust gasket 1
38 228-2580 3 pole terminal block 1
39 228-2148 Foam motor filter 1
40 228-2491 Motor gasket 1
41 228-9144 Bottom cover kit (light gray) 1
42 228-2011 Exhaust grill 1
43a 228-7025 Exhaust filter (pkg of 12) 1
43b 228-2472 HEPA filter and grill 1
43c 228-2493 Carbon active exhaust filter 1
44a 228-9145 Front grill (blue) 1
44b 228-9146 Front grill (green) 1
45 228-9147 Button (light gray) 1
46 228-2509 Handle spring 1
49a 228-9148 Vac motor housing (blue) 1
49b 228-9149 Vac motor housing (green) 1
50 228-2888 O-ring 31x43 1
51 228-9150 Curve support 1
52 228-2946 Upper curve 1
54a 228-9151 Inner vacuum motor housing (blue) 1
54b 228-9152 Inner vacuum motor housing (green) 1
56 228-9153 Motor clamp 1
57a 181-0734 120V vacuum motor 1
57b 228-2498 Carbon brush 1
57c 228-2499 Thermal protector 1
58 181-1233 Foam vacuum motor insulation 1
61 228-2501 Contact cover 1
62 228-2502 Contact housing 1
63 228-2153 Adapter 1
N/S 228-2931 Paper bag (DH3) 1
N/S 181-1188 Round dusting brush 1
N/S 228-2504 Upholstery tool with natural bristles 1
N/S 228-2477 Natural bristle brush upholstery tool 1
N/S 228-2505 Upholstery tool with center strip 1
N/S 228-2507 Upholstery tool with center strip (black) 1
N/S 228-2513 Crushproof hose 1
N/S 228-2514 9 foot crushproof hose extension 1
N/S 228-2515 Extension tube 1
N/S 228-2500 Telescopic wand 1
N/S 228-2895 Hard floor tool locking 1
N/S 228-2896 Felt pad clip on attachment for hard floor tool 1
N/S 228-2511 Blower port 1
N/S 228-2897 Backpack strap harness 1
N/S 228-2898 Backpack accessory bag 1
N/S 228-2899 Backpack pad with belt 1
