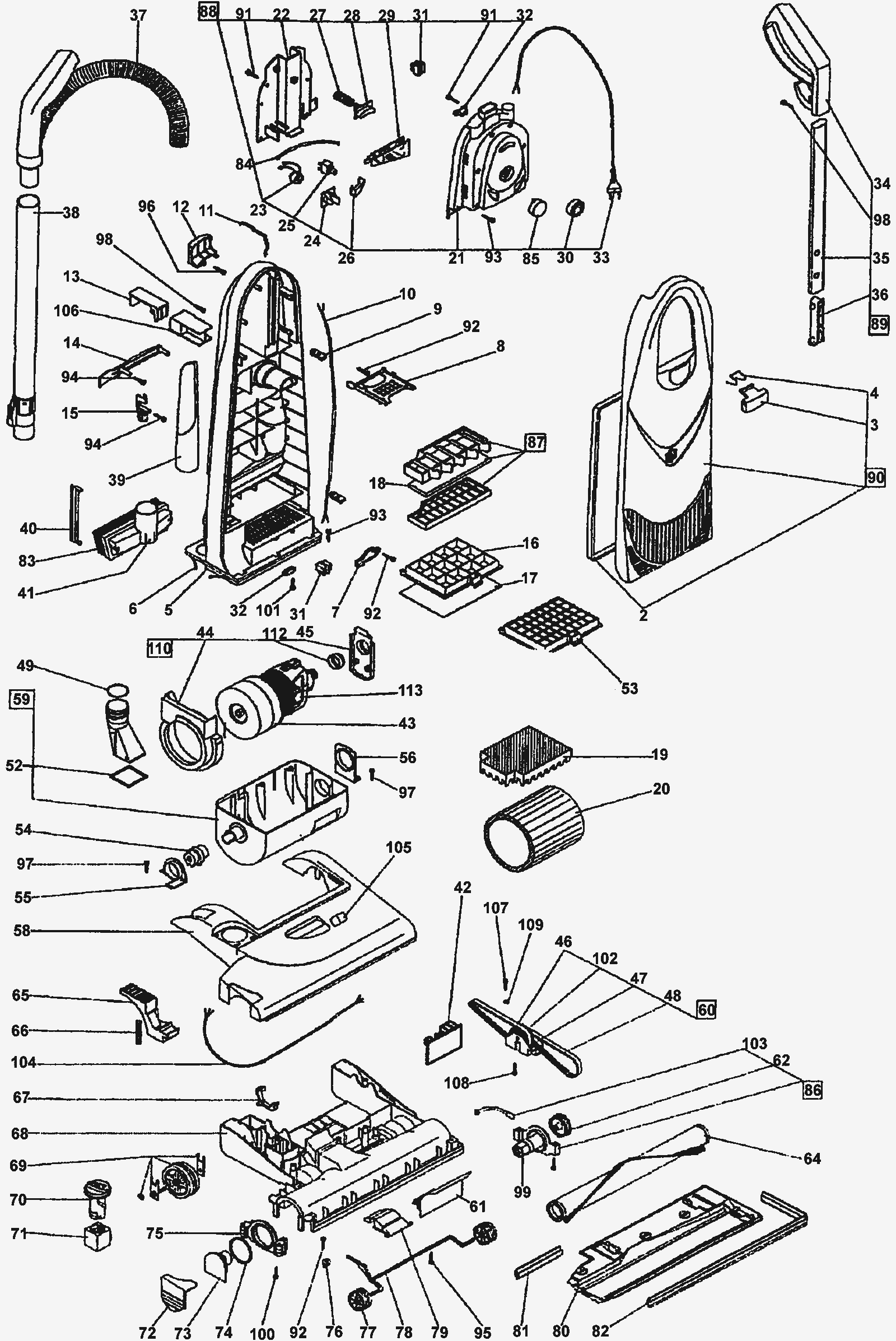

Entire Assembly

#PartDescription ReqNotesAvailability
2 228-2553 Bag door gasket 1
3 228-2554 Bag door latch 1
4 228-2555 Bag door spring 1
5 228-2556 Bag housing (dark gray) 1
6 228-2557 Bag housing gasket 1
7 228-2558 Exhaust grill hook 1
8 228-2559 Bag safety support 1
9 228-2560 Strain relief kit (2 pcs) 1
10 228-2562 3 wire internal cord 1
11 228-2563 Antistatic spring 1
12 228-2564 Hose support 1
13 228-7023 Lower cord hook 1
14 228-2565 Transport handle 1
15 228-2566 Accessory clip 1
16 228-2011 Exhaust grill 1
17 228-7025 Exhaust filter (pkg of 12) 1
18a 228-8048 Filter 1
18b 228-2567 Carbon active motor protection filter (pkg of 5) 1
19 228-2568 Foam filter 1
20 228-2569 Vacuum motor filter 1
21 228-2570 Electric panel housing 1
22 228-2571 Electric panel cover 1
23 228-2572 Vacuum sensor with light 1
24 228-2573 Red lens 1
25 228-2129 Main switch 1
26 228-2574 Switch button 1
27 228-2575 Handle spring 1
28 228-2576 Handle button 1
29 228-2577 Circuit board 1
30 228-2578 Power adjusting knob 1
31a 228-2579 2 pole terminal block 2
31b 228-2580 3 pole terminal block 2
31c 228-2490 4 pole terminal block 2
32 228-2134 Clamp 2
33a 228-2581 2 prong 2 wire cord 2 x 17 1
33b 181-1201 18/3 power cord 40 foot 1
34a 228-2917 Handle grip (blue) 1 (eco force only)
34b 228-2918 Handle grip cap (blue) 1 (eco force only)
34c 228-2058 Handle grip 1 (non eco force only)
34d 228-2582 Handle cover rubber 1 (non eco force only)
35 228-2583 Chrome tube 1
36 228-2476 2 position handle button assembly 1
37a 228-7029 Extension hose with handle 1
37b 228-8025 Handle grip kit 1
37c 228-2584 Hose with cuff 1
37d 228-2481 Hose cuff 1
38a 228-2500 Telescopic wand 1
38b 228-2515 Extension tube 1 (non eco force only)
39 181-1194 Crevice tool 1
40 228-2507 Upholstery tool with center strip (black) 1
41a 228-2504 Upholstery tool with natural bristles 1
41b 228-2505 Upholstery tool with center strip 1
42a 228-2585 Circuit board kit 1 (non eco force only)
42b 228-8046 Circuit board 1
43a 228-2586 120V vacuum motor with pulley 1
43b 228-2587 Carbon brush (set of 2) 1
44 228-2588 Motor gasket 1
45 228-2589 Brush holder gasket 1
46 228-2590 Double pulley with bearings 1
47 228-2591 Double support 1
48 228-2059 6mm timing belt 1
49 228-2592 O ring 1
52 228-2593 Throat gasket 1
53a 228-2472 HEPA filter and grill 1
53b 228-2493 Carbon active exhaust filter 1
54 228-2594 Bushing 1
55a 228-2595 Right hand support 1
55b 228-2596 Right hand metal support 1
56 228-2597 Left hand support 1
58a 228-2598 Base housing cover with lens (light gray) 1 (12 inch) (non eco force only)
58b 228-2599 Base housing cover with lens (dark gray) 1 (12 inch) (non eco force only)
58c 228-2919 Base housing cover with lens (grey) 1 (eco force only)
58c 228-2600 Base housing cover with lens (red) 1 (12 inch) (non eco force only)
58d 228-2601 Base housing cover with lens (black) 1 (12 inch) (non eco force only)
58e 228-2602 Base housing cover with lens (silver blue) 1 (12 inch)
58f 228-2603 Base housing cover with lens (dark gray) 1 (15 inch) (non eco force only)
58g 228-2604 Base housing cover with lens (light gray) 1 (15 inch) (non eco force only)
59 228-2605 Vacuum motor housing kit (dark gray) 1 (includes 52)
60 228-2123 Central transmission width belt 1 (includes 46-48, 102)
61 228-2606 Deep cleaning system converter 1
62 228-2135 Toothed gear 1
64a 228-8047 Brush roll 1 (12 inch)
64b 228-2607 Brush roller stiff bristle 1 (12 inch)
64c 172-7987 Brush roller 15 1 (15 inch)
65a 228-2608 Foot pedal (gray) 1
65b 228-2609 Foot pedal (red) 1 (non eco force only)
66 228-2610 Foot pedal spring 1
67 228-2611 Base lift lever 1
68a 228-2612 12 inch base housing (dark gray) 1
68b 228-2613 15 inch base housing (dark gray) 1
68c 228-2614 Base felt gasket 1
69 228-2615 Rear wheel assembly 1
70a 228-2616 Adjusting knob 1
70b 228-2186 Adjusting knob (blue) 1 (eco force only)
71 228-2136 Brush adjuster 1
72a 228-2617 Side cover 1
72b 228-2920 Side cover (blue) 1 (eco force only)
73 172-1479 Roller support 1
74 228-2137 O-ring 1
75 228-2618 Wheel support 1
76 228-2619 Clip 1
77a 228-2620 Front wheel nylon (silver gray) 1
77b 172-1409 Front wheel rubber 1
78 228-2621 Front axle 1
79 228-2622 Channel cover 1
80a 228-2057 Roller cover 1 (12 inch)
80b 228-2624 Roller cover with felt 1 (12 inch)
80c 228-2626 Roller cover with squeege and wheels 1 (12 inch) (non eco force only)
80d 228-2627 Squeegee kit for roller cover 1 (12 inch)
80e 228-2921 12 inch roller cover with squeegee and wheels 1 (12 inch) (eco force only)
80f 228-2623 Base shoe plate 1 (15 inch)
80g 228-2625 Roller cover with felt 1 (15 inch)
81a 228-2628 Rear bumper 1 (15 inch)
81b 228-2922 15 inch back bumper (blue) 1 (15 inch) (eco force only)
82a 228-2629 Front bumper 1 (12 inch)
82b 228-2923 12 inch front bumper (blue) 1 (12 inch) (eco force only)
82d 228-2630 Front bumper 1 (15 inch)
82d 228-2924 15 inch front bumper (blue) 1 (15 inch (eco force only)
83 228-2477 Natural bristle brush upholstery tool 1
84 228-2631 Rubber tube 1
85 228-2632 Electric panel cap 1
86 228-2633 Transmission support complete with sensor 1 (includes 62, 103)
87 228-2634 Grill 1 (includes 18)
88a 228-2635 120V 2 wire electric panel 1 (includes 21-33, 84-85, 91, 93)
88b 228-2636 120V 3 wire electric panel 1 (includes 21-33, 84-85, 91, 93)
88c 228-2637 120V electric panel with electronic 2 wires 1 (includes 21-33, 84-85, 91, 93)
89a 228-2638 Handle tube assembly 1 (includes 34-36, qty1 of 98) (non eco force only)
89b 228-2925 Handle tube assembly (grey) 1 (includes 34-36, 98) (eco force only)
89c 228-2926 Handle tube assembly (blue) 1 (includes 34-36, 98) (eco force only)
90a 228-2639 Bag door assembly (light gray) 1 (includes 2-4) (non eco force only)
90b 228-2640 Bag door assembly (dark gray) 1 (includes 2-4) (non eco force only)
90c 228-2641 Bag door assembly (red) 1 (includes 2-4) (non eco force only)
90d 228-2642 Bag door assembly (black) 1 (includes 2-4) (non eco force only)
90e 228-2927 Bag door assembly (light grey) 1 (includes 2-4) (eco force only)
90f 228-2928 Bag door assembly (silver blue) 1 (includes 2-4) (eco force only)
91 228-2643 Screw 2.9 x 19 2
92 228-2644 Screw 3.5 x 9.5 TG 3
93 228-2645 Screw 3.5 x 25 2
94 228-2531 Screw 3.9 x 16 2
95 228-2647 Screw 4.8 x 13 TG 1
96 228-2648 Screw 3.5 x 32 1
97 228-2649 Screw 3.9 x 19 2
98 228-2650 Screw 3.9x13 2
99 228-2651 Drive joint clutch kit 1
100 228-2652 Screw 3.9 x 25 1
101 228-2523 Screw 2.9 x 16 1
102 228-2653 Shaft 5 x 28 1
103 228-2654 Speed sensor 1
104a 228-2655 3 wire cord 1
104b 228-2656 4 wire cord 1
105 228-2657 Red and green lens set 1
106 228-2658 Cord hook spacer 1
107 228-2548 Screw 3.9 x 19 1
108 228-2520 Screw 3.9 x 13 TG 1
109 228-2659 Washer 1
110 228-2660 Motor gasket kit 1 (includes 44-45, 112)
112 228-2661 Motor gasket bushing 1
113a 228-2662 Thermal protector 1
113b 228-2663 Cord with thermal protector 1
N/S 228-2993 ESO kit
N/S 228-2009 Paper vacuum bags (pkg of 8 with 2 filters)
N/S 228-2515 Extension tube
N/S 228-2929 Electric system kit 1 (includes 21-22)
