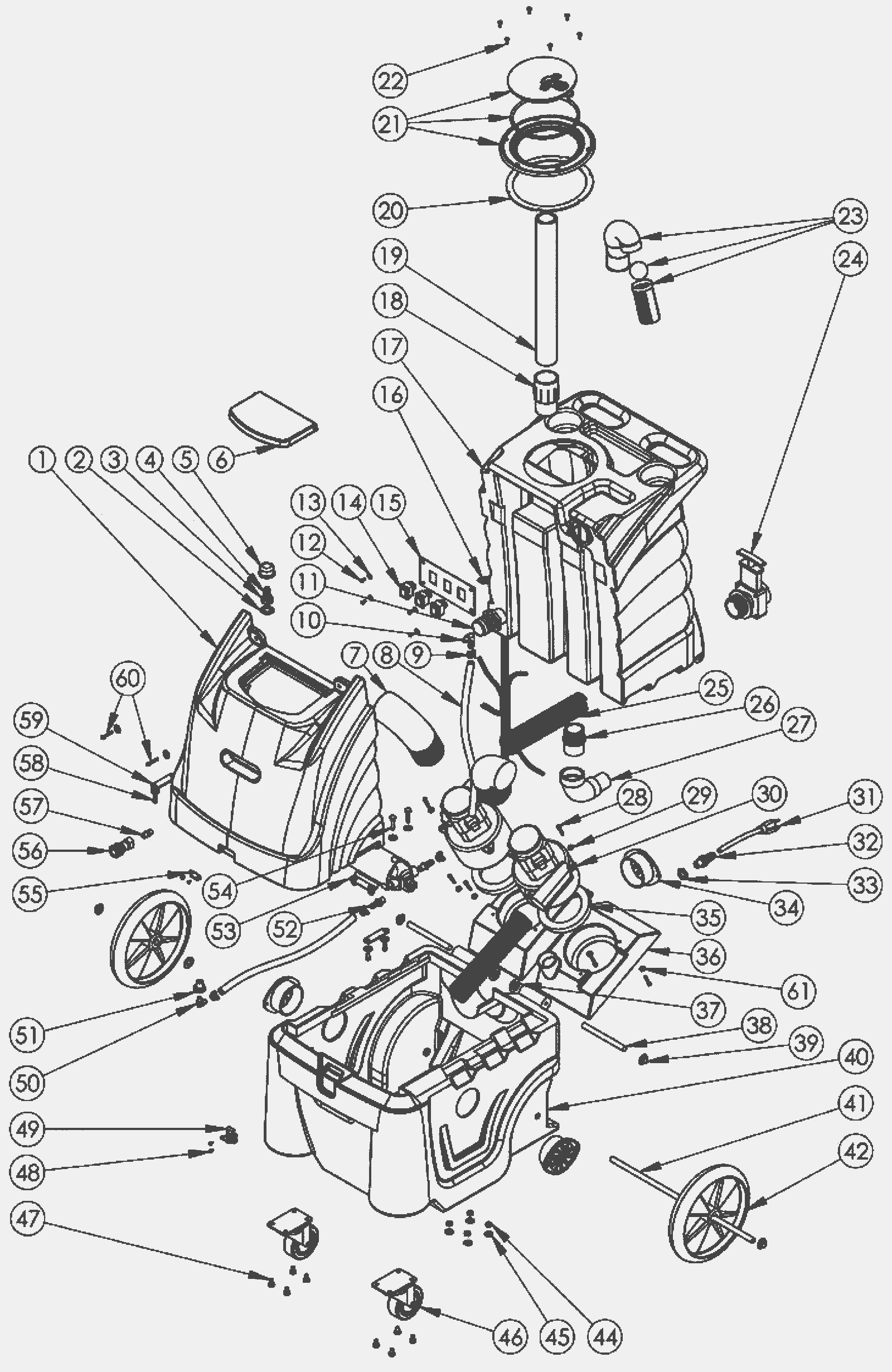

Entire Assembly

#PartDescription ReqNotesAvailability
1 228-4088 12 gallon solution tank 1
2 228-4088 12 gallon solution tank 1
3 228-4082 Bulkhead fitting 1
4 228-4082 Bulkhead fitting 1
5 228-8027 Solution screen 1
6 228-4098 Lid 1
7 228-4065 Exhaust hose 1
8 N/A Not available 2 (hose)
9 228-4093 3/8 hose clamp 1
10 228-4092 90 degree barb 1
11 228-4095 1 1/2 inch barb fitting 1
13 228-4195 4 inch stainless steel hand tool (clear) 18
14 228-4062 Rocker switch 3
15 228-4198 Switch plate 1
16 228-4199 Wiring harness 1
17 N/A Not available 1 (Recovery tank)
18 228-4105 Female adapter 2
19 228-4104 1 1/2 inch stand pipe 2
20 228-4103 Hatch cover gasket 1
21 228-4063 Hatch cover 1
22 228-4144 Screw 12
23 228-4067 Stuf off valve 1
24 228-4068 Dump valve 1
25 228-4194 Vacuum hose (sold by the foot) 1
26 228-4106 Fitting 1
27 228-4107 90 degree street elbow 3
28 228-4108 Motor manifold bolt 10
29 228-4195 4 inch stainless steel hand tool (clear) 6
30a 228-4012 2 stage vacuum motor 2
30b 228-4071 3 stage vacuum motor with gasket 2
31 228-4060 Pigtail 1
32 228-4061 Strain relief 1
33 228-4109 Strain relief nut 1
34 228-4110 Exhaust grate 3
35a 228-4072 Vacuum motor gasket 2
35b 228-4073 Vacuum motor gasket 2
36 228-4074 Motor manifold 2
37 228-4111 Hinge keeper 2
38 228-4112 Hinge 2
39 228-4113 End cap 4
40 228-4114 Base 1
41 228-4115 19 inch axle 1
42 228-4069 Wheel 2
44 228-4117 Nut 4
45 228-4116 Washer 14
46 228-4078 Caster 2
47 228-4118 Bolt 8
49 228-4123 Keeper 1
50 228-4092 90 degree barb 1
51 228-4200 Male barb 1
52 228-4200 Male barb 2
53 228-3020 Flojet pump 1
54 228-4122 Bolt 4
55 228-4128 Latch 1
56 228-4129 Female fitting 1
57 228-4089 1/4 hex nipple 1
58 228-4124 Bolt 4
59 228-4130 Bracket 2
60 999-6710 Screw 1/4-20 x 1 1/8 socket head stainless steel 2
61 228-8013 Washer (for shoulder and waist belts 228-7021) 4
