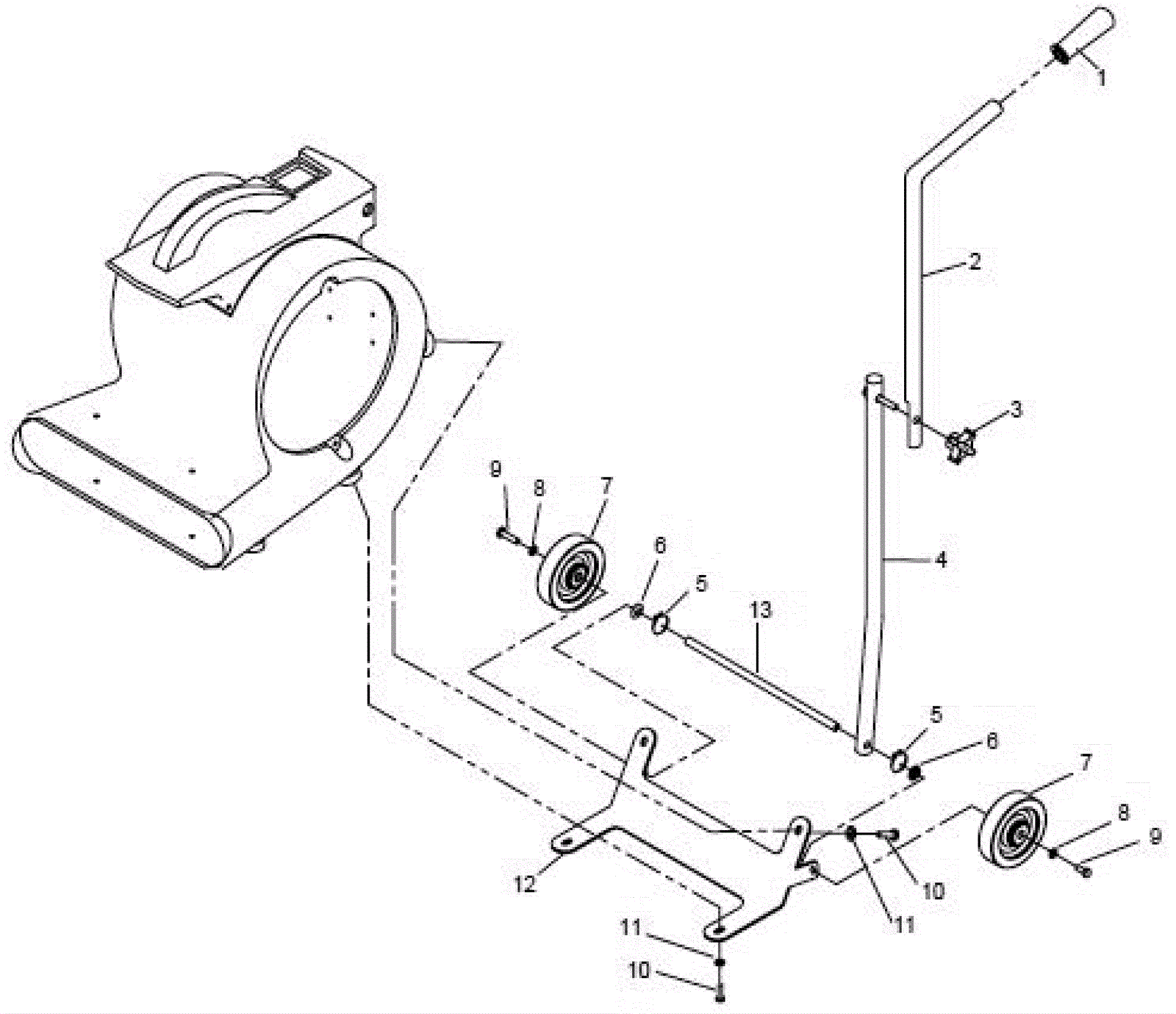

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-0371
|
Handle grip |
1 |
|
|
2 |
173-9597
|
Upper handle tube |
1 |
|
|
3 |
173-9598
|
Handle lock knob |
1 |
|
|
4 |
173-9599
|
Lower handle tube |
1 |
|
|
5 |
173-9005
|
External snap ring (OBSOLETE) |
2 |
|
|
6 |
173-2834
|
Nut 1/2 flat push |
2 |
|
|
7 |
173-4664
|
Wheel (gray) |
2 |
|
|
8 |
999-1267
|
Washer M8 flat zinc |
2 |
|
|
9 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
10 |
999-1591
|
Screw M6-1 x 20mm button head socket stainless steel |
2 |
|
|
11 |
173-9600
|
Washer M7 x 20mm |
2 |
|
|
12 |
173-9601
|
Blower wheel bracket |
1 |
|
|
13 |
173-9602
|
Blower wheel axle |
1 |
|
|
