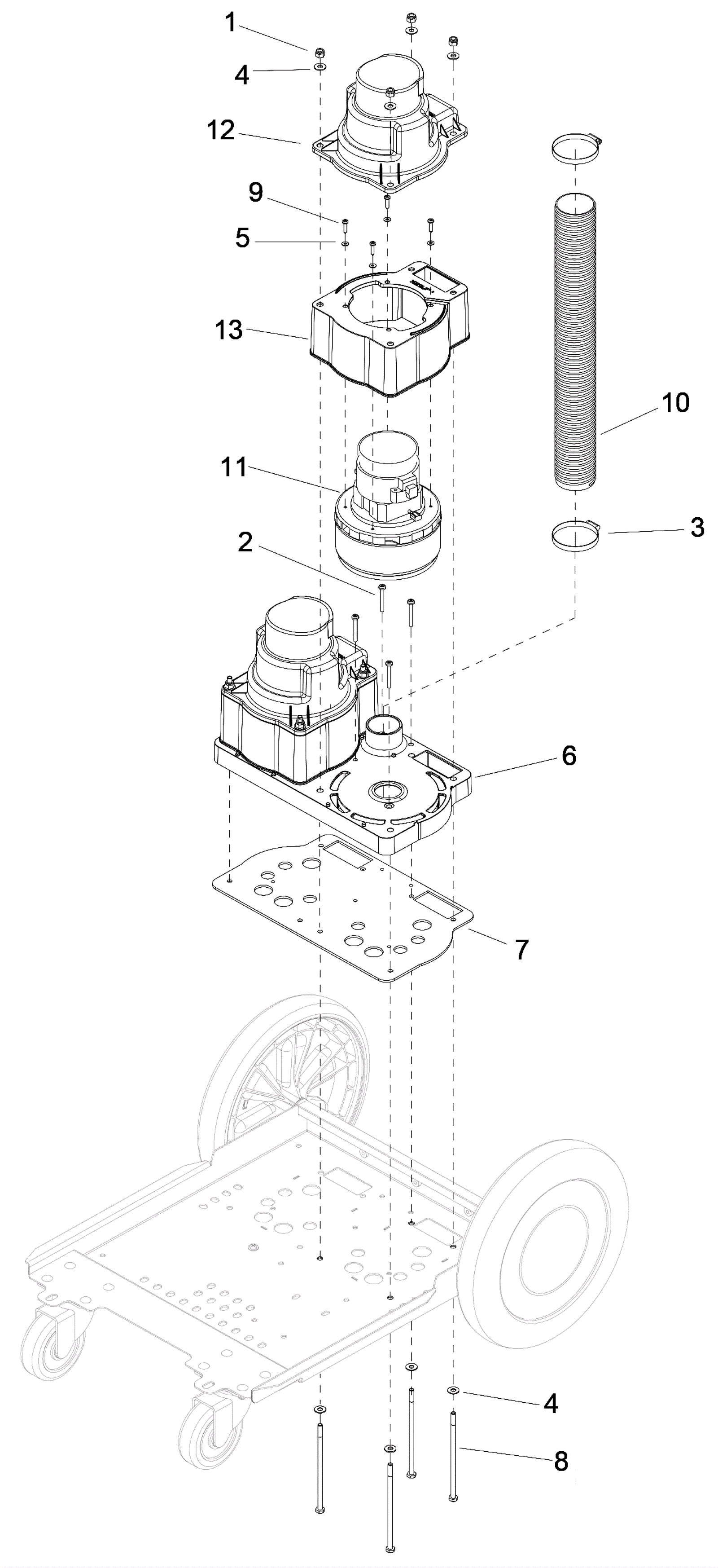

Vacuum Assembly

#PartDescription ReqNotesAvailability
1 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
2 999-1631 Screw 10-32 x 1 1/2 pan head phillips stainless steel 5
3 273-6930 Hose clamp 2
4 999-0123 Washer 1/4 SAE flat zinc plated 16
6 273-6931 Dual vacuum manifold 1
7 273-6932 Manifold gasket (OBSOLETE) 1
8b 999-9145 Screw 1/4-20 x 5 1/2 cap grade 18-8 stainless steel 8 (2 Stage)
8b 273-6939 Screw 1/4-20 x 6 1/2 hex head cap 8 (3 stage)
9 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 8
10 273-6934 Vacuum hose 2 x 18 1/2 inches 1
11a 273-6935 120V 2 stage vacuum motor 2 (2 stage)
11b 273-6943 120V 3 stage vacuum motor 2 (3 stage)
11c 272-4024 Bulb 1
12 273-6936 Vacuum motor cover 2
13 273-6944 Vacuum motor base (OBSOLETE) 2
N/S 273-6945 Vac housing 1 (3 stage) (includes 12 and 13b)
N/S 273-6938 Vacuum housing 1 (2 stage) (includes 12 and 13a)
