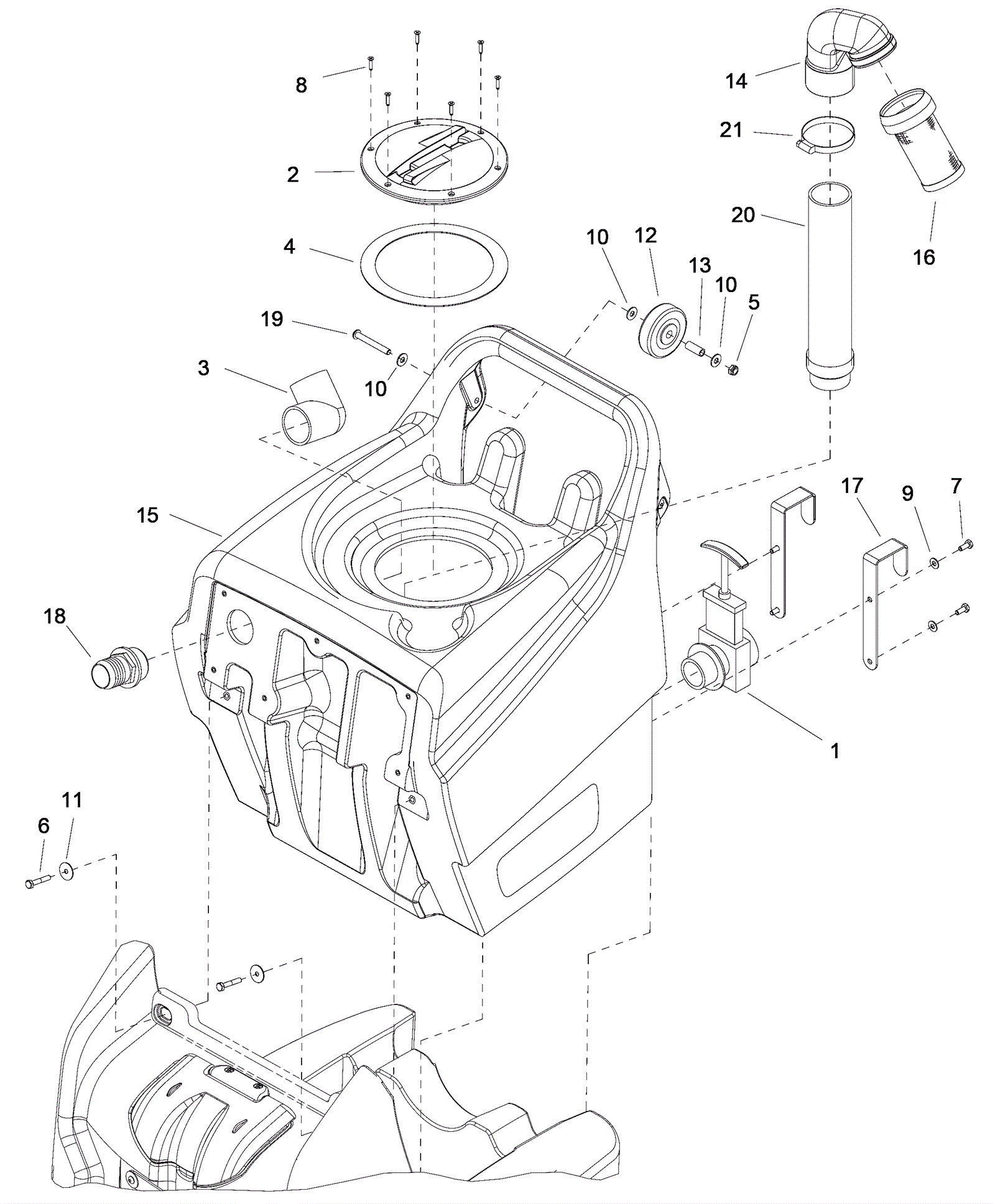

Recovery Assembly

#PartDescription ReqNotesAvailability
2 173-8584 Tank lid (OBSOLETE) 1
3 173-7181 Elbow 1-1/2 1
4 173-8585 Tank lid gasket 1
5 999-1458 Nut 5/16-18 acorn nickel plated 2
6 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 2
7 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 4
8 999-1141 Screw 8 x 3/4 pan head phillips zinc plated 6
9 999-0123 Washer 1/4 SAE flat zinc plated 4
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
11 999-0016 Washer 1/4 flat plain finish 2
13 173-1634 Bushing 2
14 273-6915 Adapter 1
15 273-6916 Recovery tank 1
16 273-6918 Float cage assembly 1
17 273-6919 Cord mount bracket (OBSOLETE) 2
18 273-6920 Hose barb 1
19 273-7644 Screw 5/16-18 x 2 1/2 socket head cap screw stainless steel 2
20 273-6922 Stand pipe 1
21 173-0988 2 inch hose clamp 1
