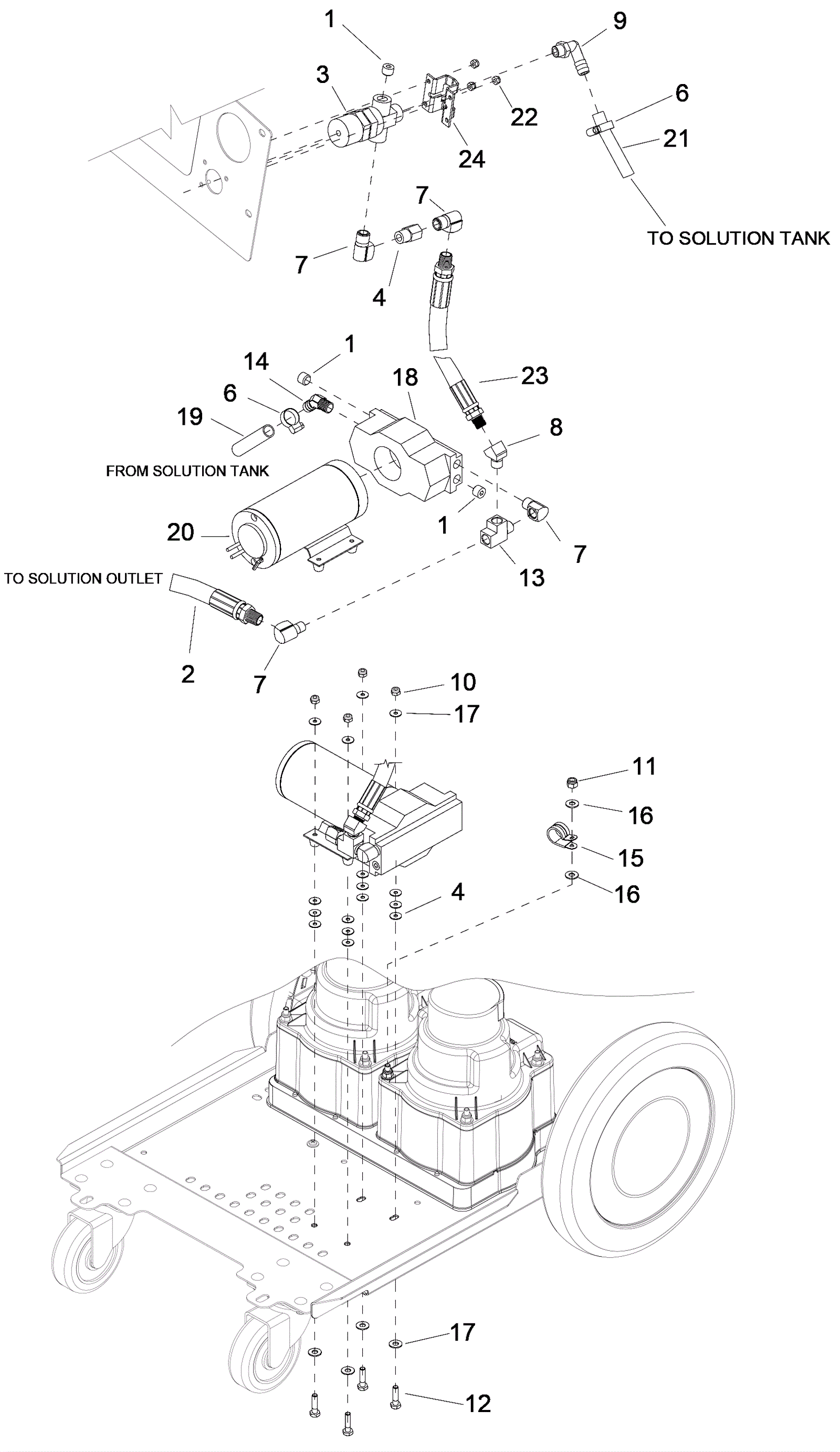

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-3340
|
Plug |
3 |
|
|
2 |
273-6893
|
Pulse hose |
1 |
|
|
3 |
273-3338
|
200PSI brass pressure regulator |
1 |
|
|
4 |
273-7215
|
Washer 1/4 rubber |
12 |
|
|
5 |
173-0656
|
Adapter |
1 |
|
|
6 |
173-1821
|
Hose clamp |
2 |
|
|
7 |
173-2098
|
Street elbow 1/4 |
4 |
|
|
8 |
227-1248
|
Elbow (OBSOLETE) |
1 |
|
|
9 |
173-8683
|
Hosebarb 1/4 X 3/8 |
1 |
|
|
10 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
11 |
999-1466
|
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
|
12 |
173-2690
|
Screw 10-32 x 1 3/8 pan heas machine |
4 |
|
|
13 |
227-1267
|
1/4 street tee |
1 |
|
|
14 |
273-2008
|
Hosebarb |
1 |
|
|
15 |
173-3112
|
P clamp |
1 |
|
|
16 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
17 |
999-0998
|
Washer #10 flat stainless steel |
8 |
|
|
18 |
273-3342
|
112V pump with cam |
1 |
|
|
19 |
273-3336
|
42 inch hose |
1 |
|
|
20 |
273-3343
|
120V motor |
1 |
|
|
21 |
273-6908
|
Wire bound hose 3/8 x 26 inch |
1 |
|
|
22 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
3 |
|
|
23 |
273-3339
|
47 inch hose |
1 |
|
|
24 |
227-1249
|
Nut |
1 |
|
|
N/S |
273-3341
|
Bracket |
1 |
|
|
N/S |
273-3337
|
16 1/4 inch hose |
1 |
(to heater) |
|
