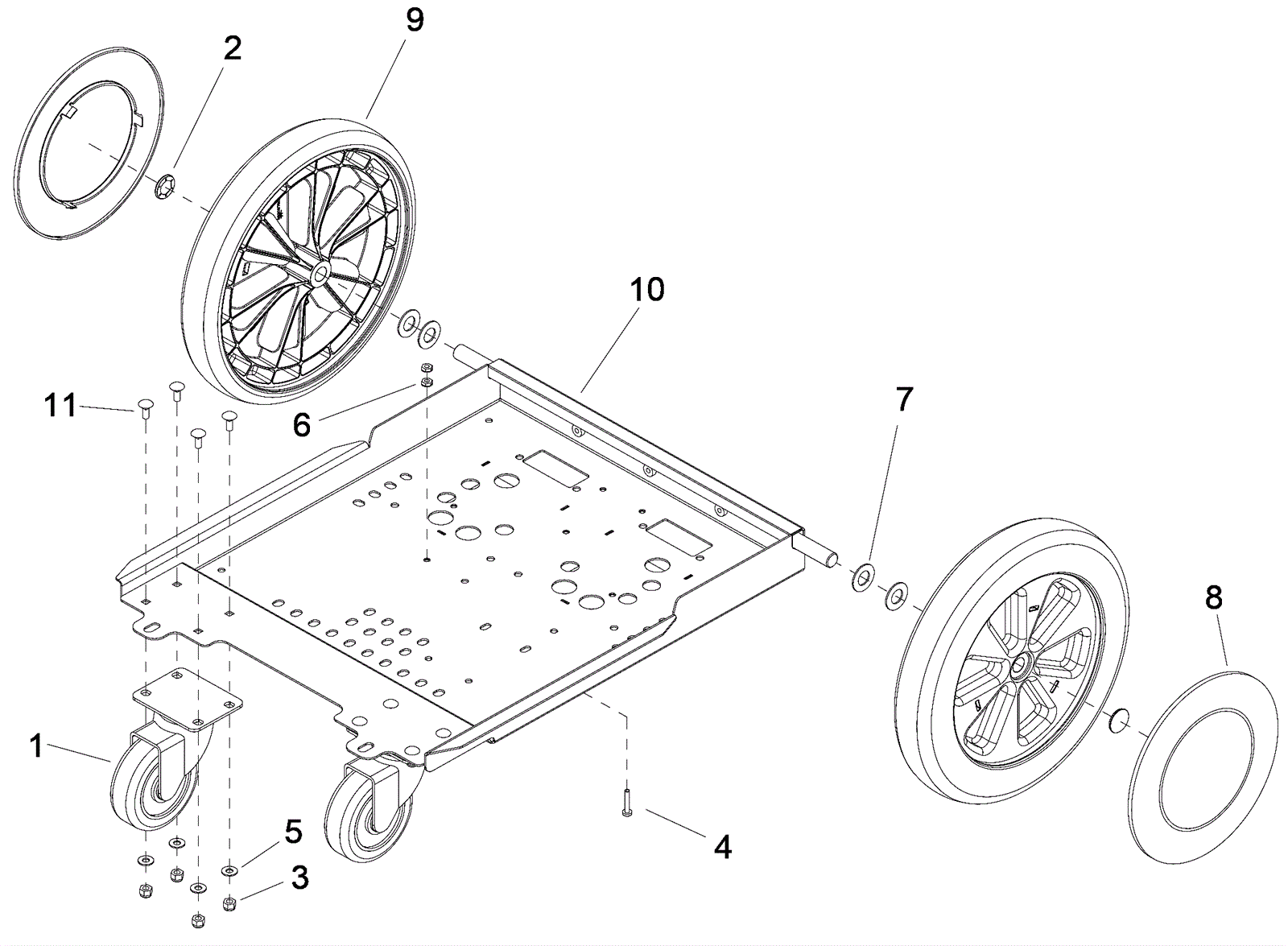

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
227-1244
|
4 inch caster (OBSOLETE) |
2 |
|
|
2 |
173-2064
|
Axle cap |
2 |
|
|
3 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
4 |
173-7043
|
Screw 10-32 x 1 phillips pan head green |
1 |
|
|
5 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
6 |
227-1249
|
Nut |
2 |
|
|
7 |
999-9127
|
Washer 5/8 SAE flat stainless steel |
4 |
|
|
8 |
273-3529
|
Hubcap (black) |
2 |
|
|
9 |
173-5308
|
12 inch wheel |
2 |
|
|
10 |
273-6891
|
Frame with built in axle |
1 |
|
|
11 |
273-5894
|
Screw 1/4-20 x 5/8 carriage head stainless steel |
8 |
|
|
