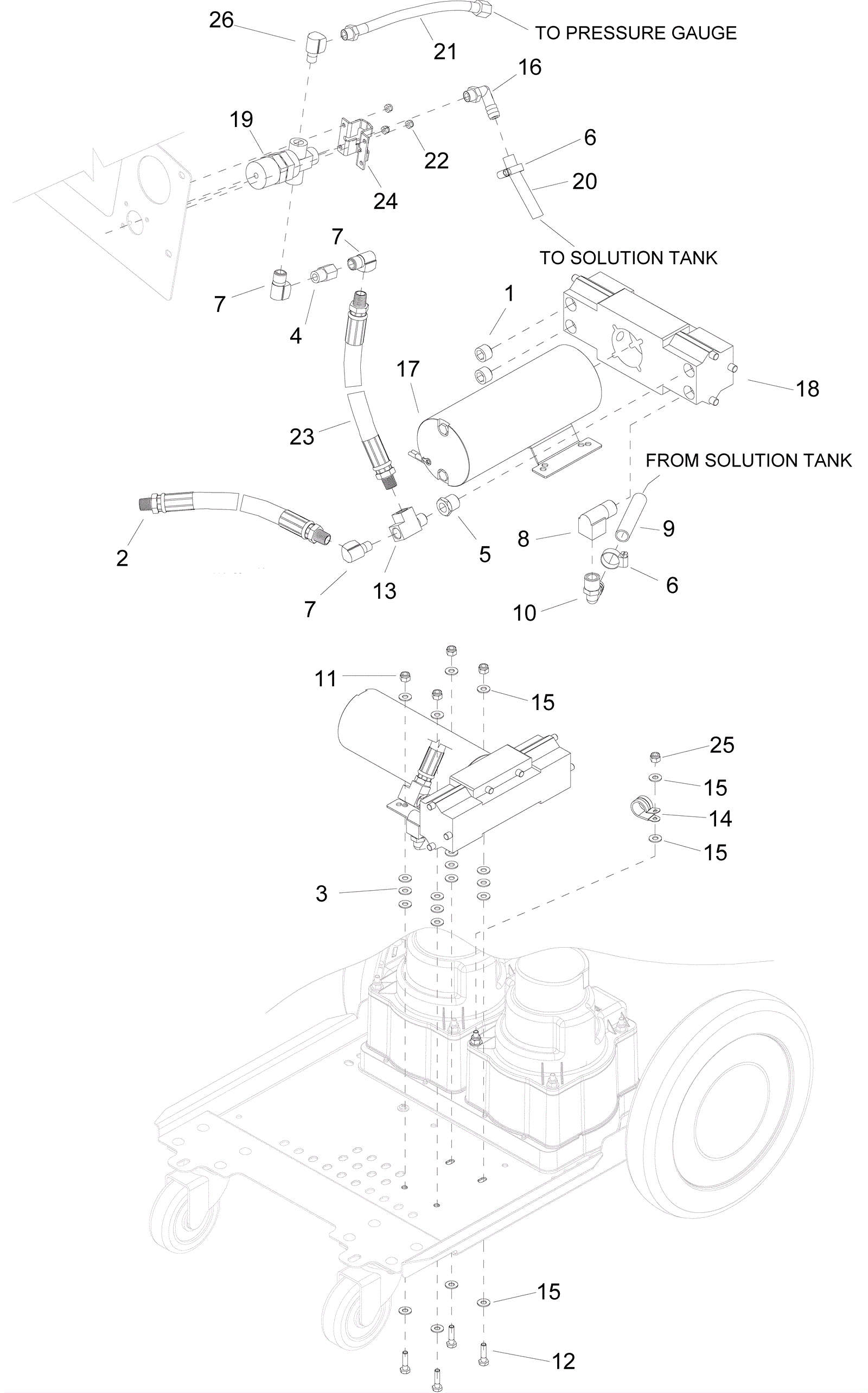

NINJA WARRIOR 500PSI Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5681 3/8 socket head plug $3.63 2 usually ships 14-22 days
2a 273-6893 Pulse hose $106.70 1 usually ships 14-22 days
2b 273-3337 16 1/4 inch hose $63.80 1 usually ships 14-22 days
3 273-7215 Washer 1/4 rubber $1.69 12 usually ships 1-5 days
4 173-0656 Adapter $10.95 1 usually ships 14-22 days
5 173-0684 Bushing $6.93 1 usually ships 14-22 days
6 173-1821 Hose clamp $6.39 2 ships same day
7 173-2098 Street elbow 1/4 $10.62 2 usually ships 14-22 days
8 173-0965 3/8 inch street elbow nickel plated $15.73 1 usually ships 14-22 days
9 173-6069 Wire bound hose $57.20 1 usually ships 14-22 days
10 173-8683 Hosebarb 1/4 X 3/8 $5.61 1 usually ships 1-5 days
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
12 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
13 227-1267 1/4 street tee $11.94 1 usually ships 13-15 days
14 173-3112 P clamp $9.74 1 usually ships 14-22 days
15 999-0123 Washer 1/4 SAE flat zinc plated $0.99 10 ships same day
16 273-6439 90° hosebarb 3/8 mpt x 1/2 BR $42.35 1 usually ships 1-5 days
17 273-6463 500 PSI motor upgrade kit $1,853.50 1 usually ships 14-22 days
18 273-6447 Pump (no motor) $922.90 1 usually ships 14-22 days
19 273-6739 500PSI brass pressure regulator $289.87 1 usually ships 14-22 days
20 273-6908 Wire bound hose 3/8 x 26 inch $33.66 1 usually ships 14-22 days
21 273-6909 10 inch hose with fittings $117.70 1 usually ships 14-22 days
22 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 3 ships same day
23 273-3339 47 inch hose $67.65 1 usually ships 14-22 days
24 273-3341 Bracket $19.72 1 usually ships 14-22 days
25 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 1 ships same day
26 273-6910 Elbow $62.70 1 usually ships 1-5 days
