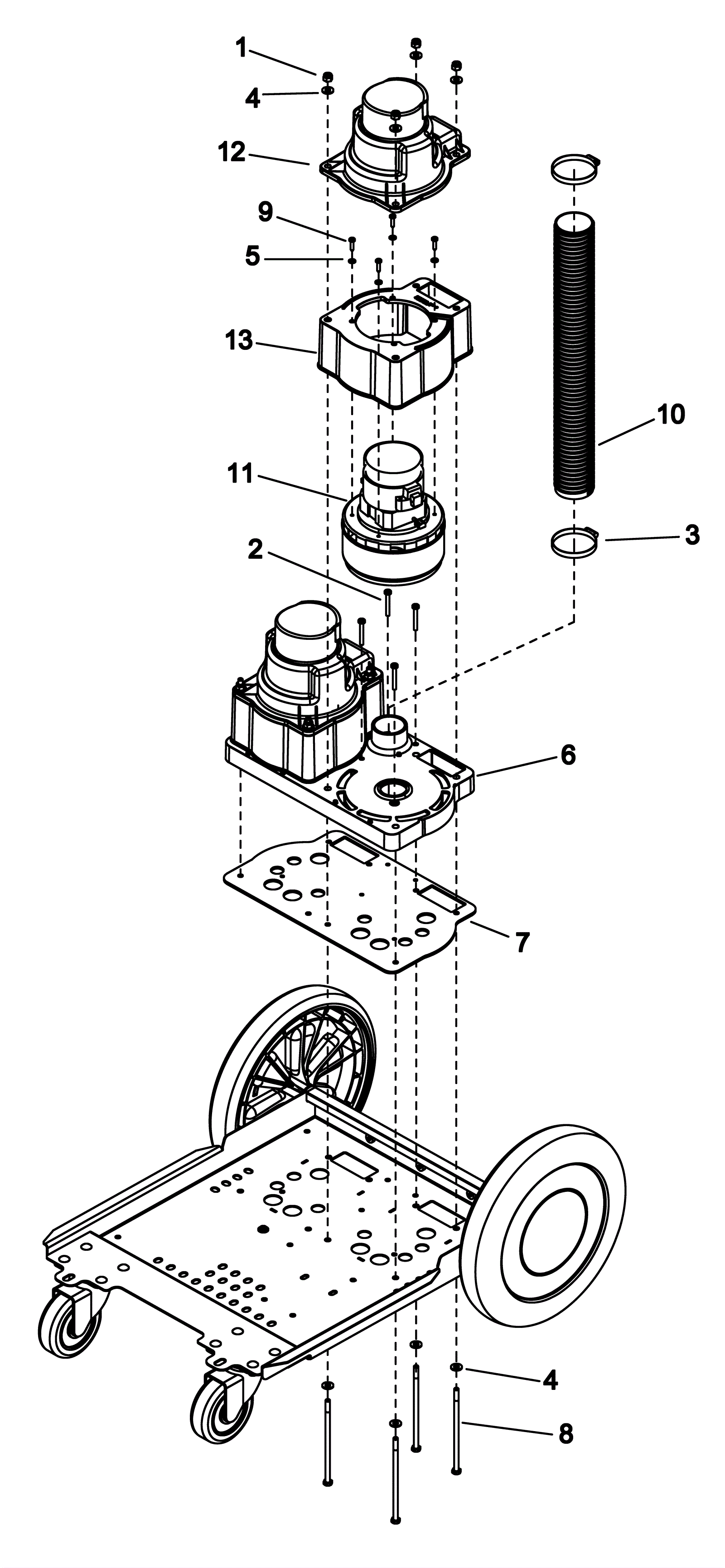

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
|
2 |
999-1631
|
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
5 |
|
|
3 |
273-6930
|
Hose clamp |
2 |
|
|
4 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
16 |
|
|
6 |
273-6931
|
Dual vacuum manifold |
1 |
|
|
7 |
273-6932
|
Manifold gasket (OBSOLETE) |
1 |
|
|
8 |
999-9145
|
Screw 1/4-20 x 5 1/2 cap grade 18-8 stainless steel |
8 |
|
|
9 |
999-0870
|
Screw 8 x 3/4 pan head phillips stainless steel |
8 |
|
|
10 |
273-6934
|
Vacuum hose 2 x 18 1/2 inches |
1 |
|
|
11 |
273-6935
|
120V 2 stage vacuum motor |
2 |
|
|
12 |
273-6936
|
Vacuum motor cover |
2 |
|
|
13 |
273-6937
|
Vacuum motor base |
2 |
|
|
N/S |
272-4024
|
Bulb |
1 |
|
|
N/S |
273-6938
|
Vacuum housing |
1 |
(includes 12, 13) |
|
