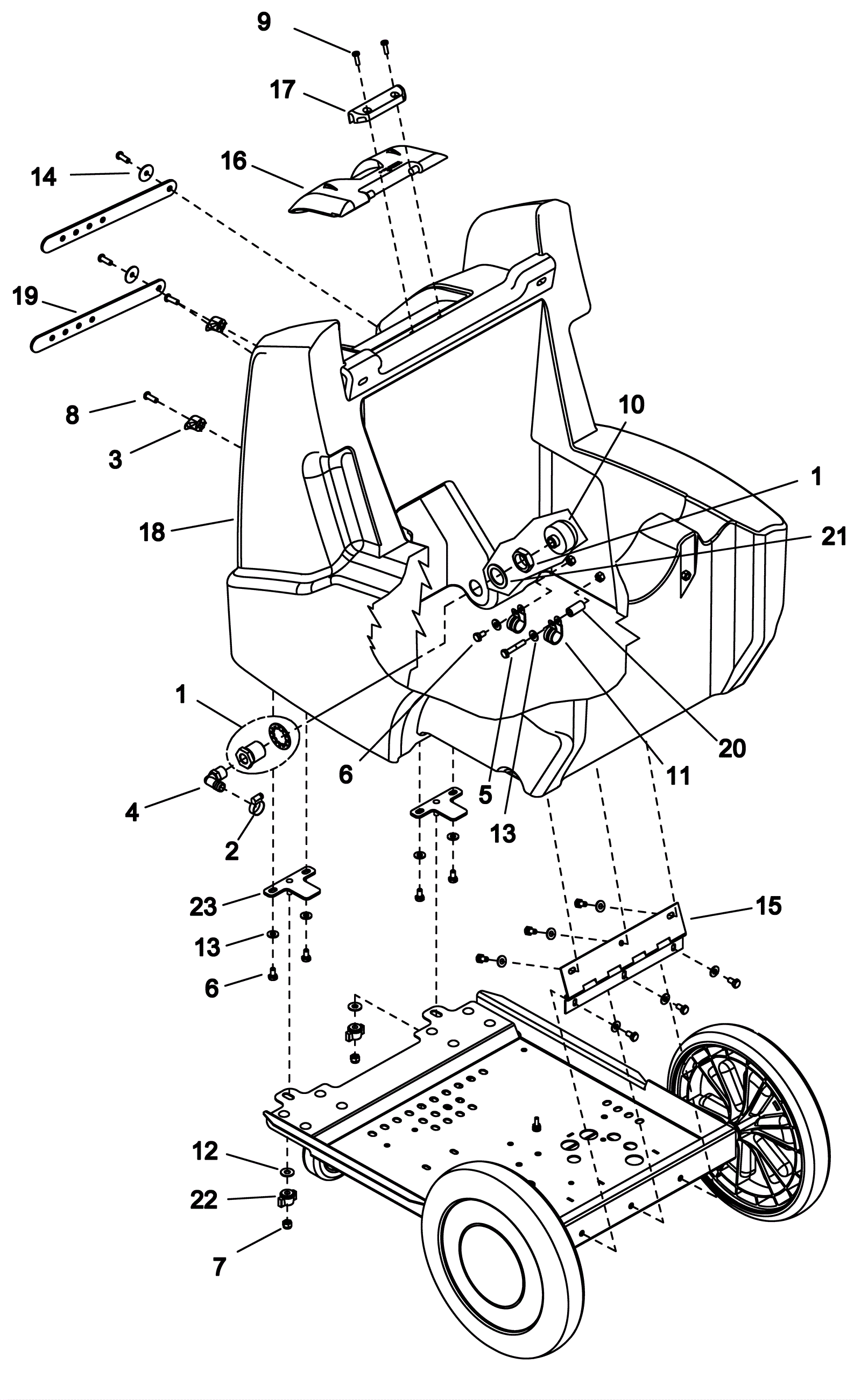

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 273-6924 Adapter 1
2 173-1821 Hose clamp 1
3 273-5721 Strap hook 2
4 173-1072 Hosebarb 3/8 x 1/2 inch 1
5 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 1
6 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 11
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
8 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 4
9 999-1937 Screw 10-32 x 5/8 phillips pan head black oxide SS 2
10 189-4181 3/8 inch mesh strainer 1
11 173-3112 P clamp 2
12 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
13 999-0123 Washer 1/4 SAE flat zinc plated 12
14 999-0016 Washer 1/4 flat plain finish 2
15 273-6925 Hinge 1
16 273-6926 Solution tank lid (OBSOLETE) 1
17 273-6451 Solution lid hinge bracket 1
18 227-1311 Solution tank trim (OBSOLETE) 1
19 273-5724 Hand tool strap 2
20 273-6927 Spacer 1
21 273-6928 Washer 1
22 173-9161 Hex wing knob 2
23 273-6929 Solution mounting plate (OBSOLETE) 2
