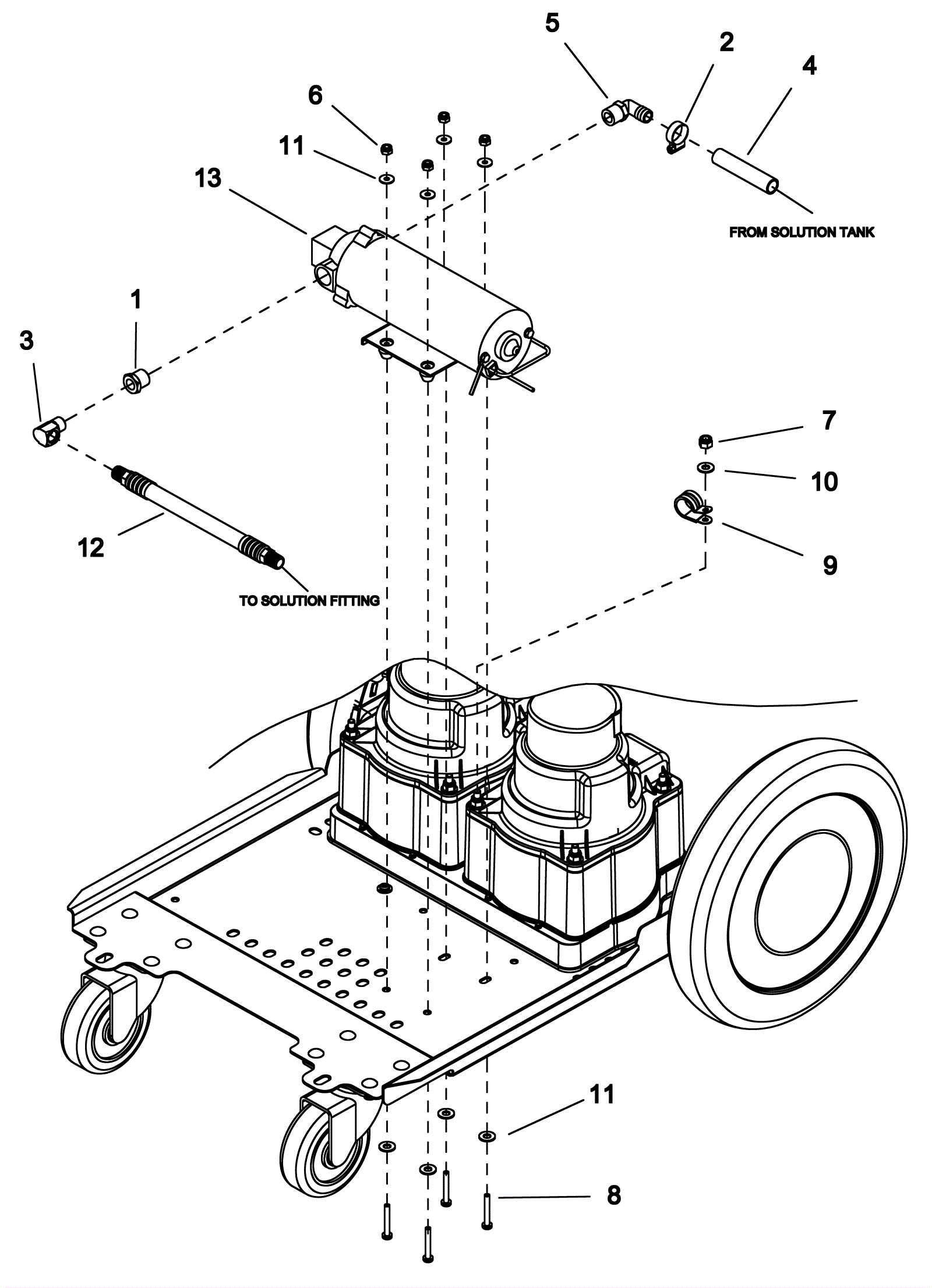

Pump Assembly

#PartDescription ReqNotesAvailability
1 173-0684 Bushing 1
2 173-1821 Hose clamp 1
3 173-2098 Street elbow 1/4 1
4 173-6069 Wire bound hose 1
5 173-1072 Hosebarb 3/8 x 1/2 inch 1
6 999-0086 Nut 10-32 nylon insert lock zinc plated 4
7 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 1
8 173-9763 Screw 10-32 x 1 1/4 4
9 173-3112 P clamp 1
10 999-0123 Washer 1/4 SAE flat zinc plated 1
11 999-0998 Washer #10 flat stainless steel 8
12 273-4215 Hose (gray) 1
13 273-7186 150PSI pump assembly 1
