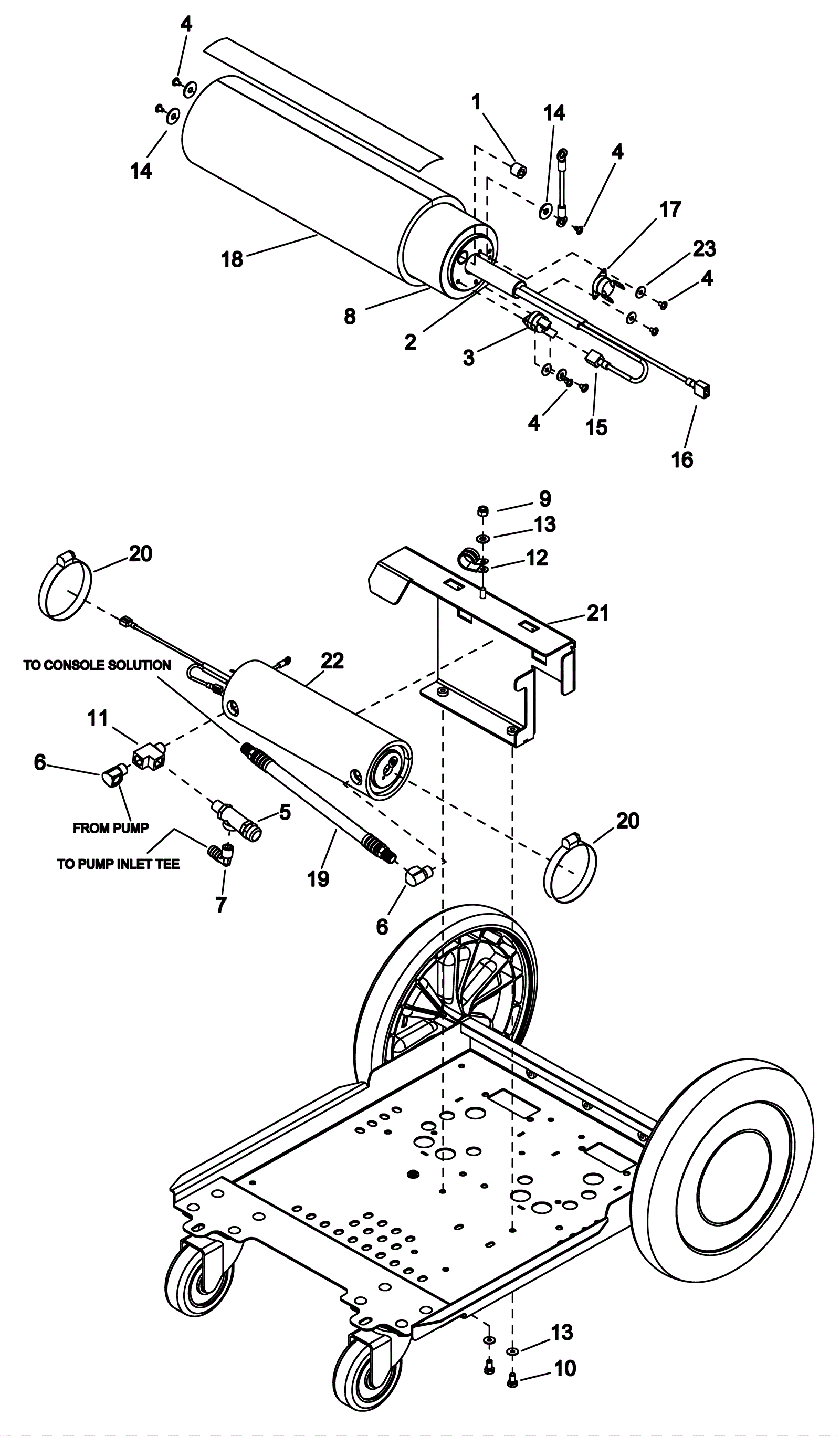

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
173-2090
|
1/8 plug (OBSOLETE) |
1 |
|
|
2 |
273-6897
|
Cartridge heater |
1 |
|
|
3 |
273-6520
|
Thermostat reset |
1 |
|
|
4 |
999-1686
|
Screw 6-32 x 3/16 phillips head machine |
7 |
|
|
5 |
273-4059
|
Pressure relief valve (OBSOLETE) |
1 |
|
|
6 |
173-2098
|
Street elbow 1/4 |
2 |
|
|
7 |
173-2103
|
Hosebarb |
1 |
|
|
9 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
|
10 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
11 |
227-1267
|
1/4 street tee |
1 |
|
|
12 |
173-3112
|
P clamp |
1 |
|
|
13 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
14 |
999-0998
|
Washer #10 flat stainless steel |
3 |
|
|
15 |
273-6898
|
Female coupler |
1 |
|
|
16 |
173-4416
|
Male coupler |
1 |
|
|
17 |
273-6899
|
Thermostat |
1 |
|
|
18 |
273-6900
|
Heater insulation |
1 |
|
|
19 |
227-1308
|
Hose (red) |
1 |
|
|
20 |
273-6894
|
Worm gear clamp |
2 |
|
|
21 |
273-6895
|
Heater mounting bracket |
1 |
|
|
22 |
273-6896
|
120V heater assembly |
1 |
|
|
23 |
273-6902
|
Washer #5 stainless steel |
4 |
|
|
