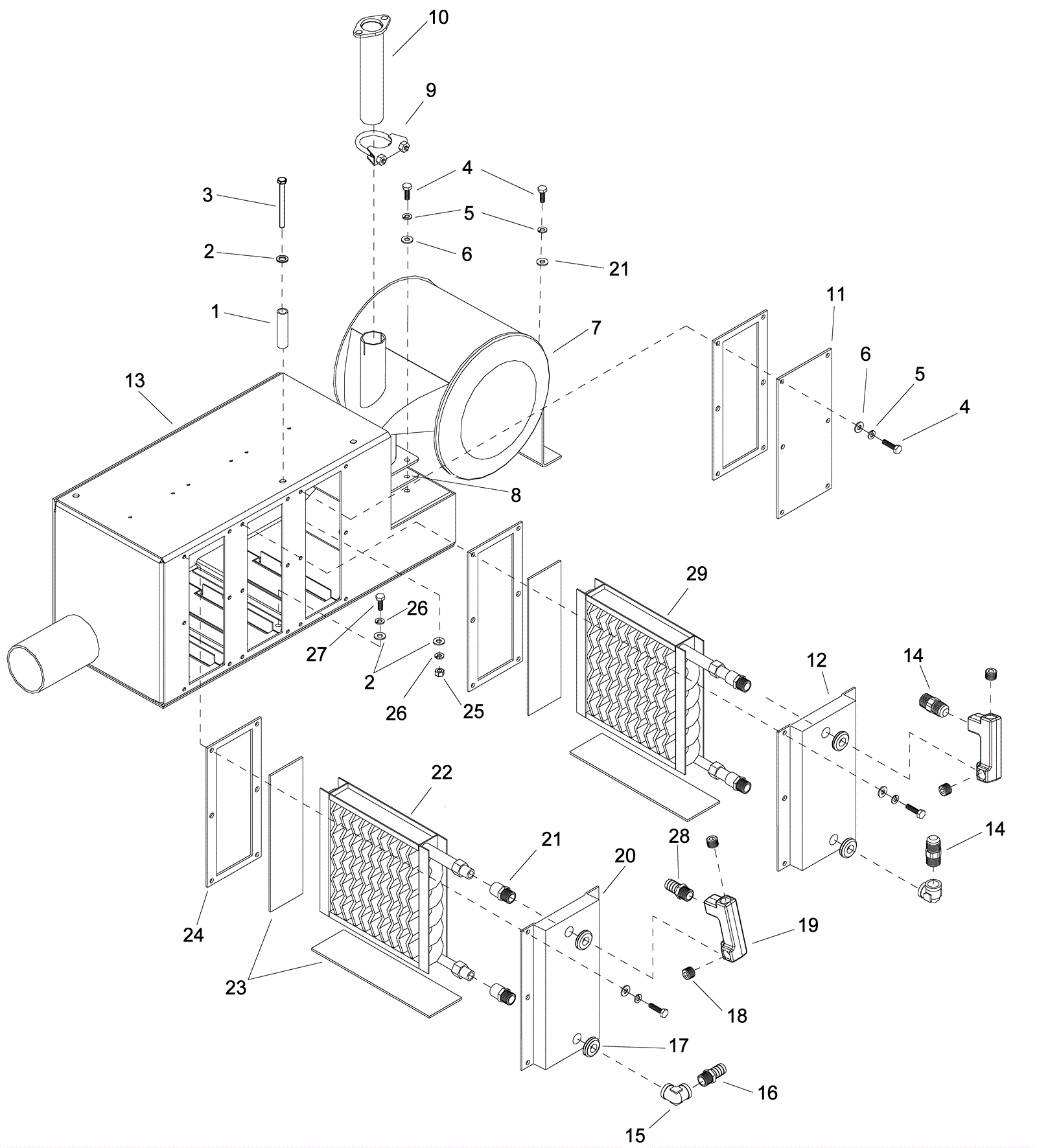

AVENGER 550 Heat Exchanger

#PartDescriptionPriceReqNotesAvailability
1 373-1123 Spacer $39.13 3 usually ships 14-22 days
2 373-1103 Washer $0.99 9 usually ships 14-22 days
4 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 26 ships same day
5 999-1049 Washer 1/4 split lock zinc plated $0.99 24 ships same day
7 373-1124 Vacuum muffler with exhaust tube $1,064.80 1 usually ships 14-22 days
8 373-1125 Vacuum inlet gasket $11.88 1 usually ships 14-22 days
9 373-1126 Muffler clamp $7.37 1 usually ships 14-22 days
11 373-1127 Vacuum plate $87.63 1 usually ships 14-22 days
12 373-1128 Cover $88.28 1 usually ships 14-22 days
15 173-4421 3/8 brass elbow $15.13 3 usually ships 1-5 days
17 373-1129 Grommet $7.15 6 usually ships 14-22 days
18 173-5681 3/8 socket head plug $3.63 6 usually ships 14-22 days
20 373-1130 Cover $67.65 1 usually ships 14-22 days
21 173-2483 Washer 1/4ID x 3/4OD plated $0.90 2 usually ships 1-5 days
22 373-1131 Heater core assembly $657.80 1 usually ships 14-22 days
23 373-1132 Rear vacuum heater core pad $15.84 4 usually ships 14-22 days
25 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
26 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
27 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 3 ships same day
28 373-1133 Fitting $7.70 1 usually ships 14-22 days
29 373-1134 Heater core assembly $1,512.50 1 usually ships 14-22 days
