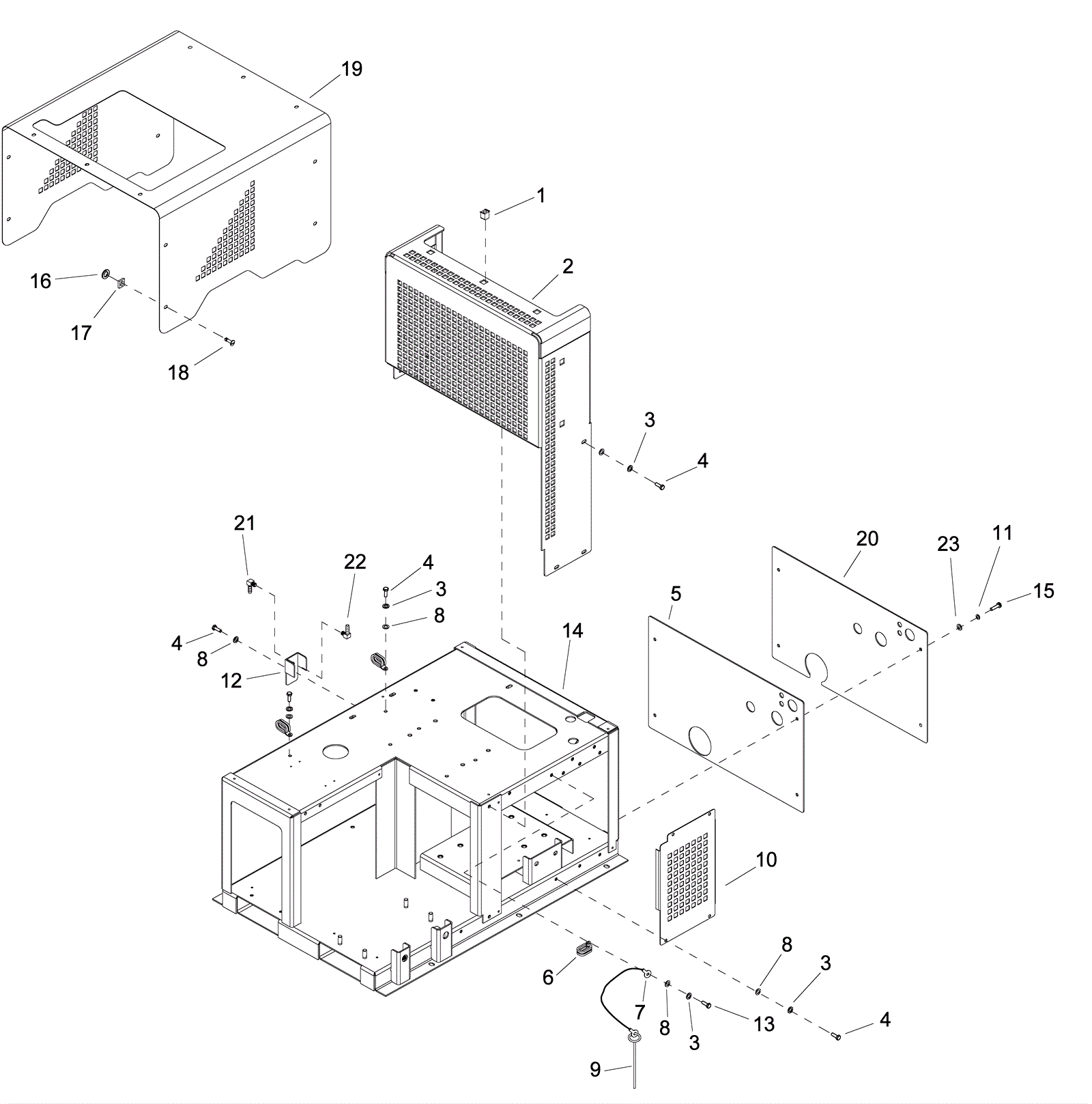

AVENGER 550 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 373-1022 Snapin receptacle $5.56 14 usually ships 14-22 days
3 999-1049 Washer 1/4 split lock zinc plated $0.99 12 ships same day
4 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 11 ships same day
5 373-1023 Lower front panel $621.50 1 usually ships 14-22 days
6 273-0216 Clamp $4.18 3 usually ships 1-5 days
7 373-1024 Retaining cable $12.35 1 usually ships 14-22 days
9 373-1025 Dipstick $22.00 1 usually ships 14-22 days
11 999-1049 Washer 1/4 split lock zinc plated $0.99 4 ships same day
12 373-1026 Break line $50.70 1 usually ships 14-22 days
13 373-1027 Screw 1/4-20 $1.10 1 usually ships 14-22 days
15 999-0235 Screw 1/4-20 x 3/4 button head socket plain finish $0.99 4 ships same day
16 373-1028 Split ring $0.99 14 usually ships 14-22 days
17 373-1029 Spacer $1.01 14 usually ships 14-22 days
18 373-1030 Stud $2.85 14 usually ships 14-22 days
20 373-1031 Decal $152.35 1 usually ships 14-22 days
21 373-1032 Elbow $9.08 1 usually ships 14-22 days
22 373-1033 Elbow $13.78 1 usually ships 14-22 days
23 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
