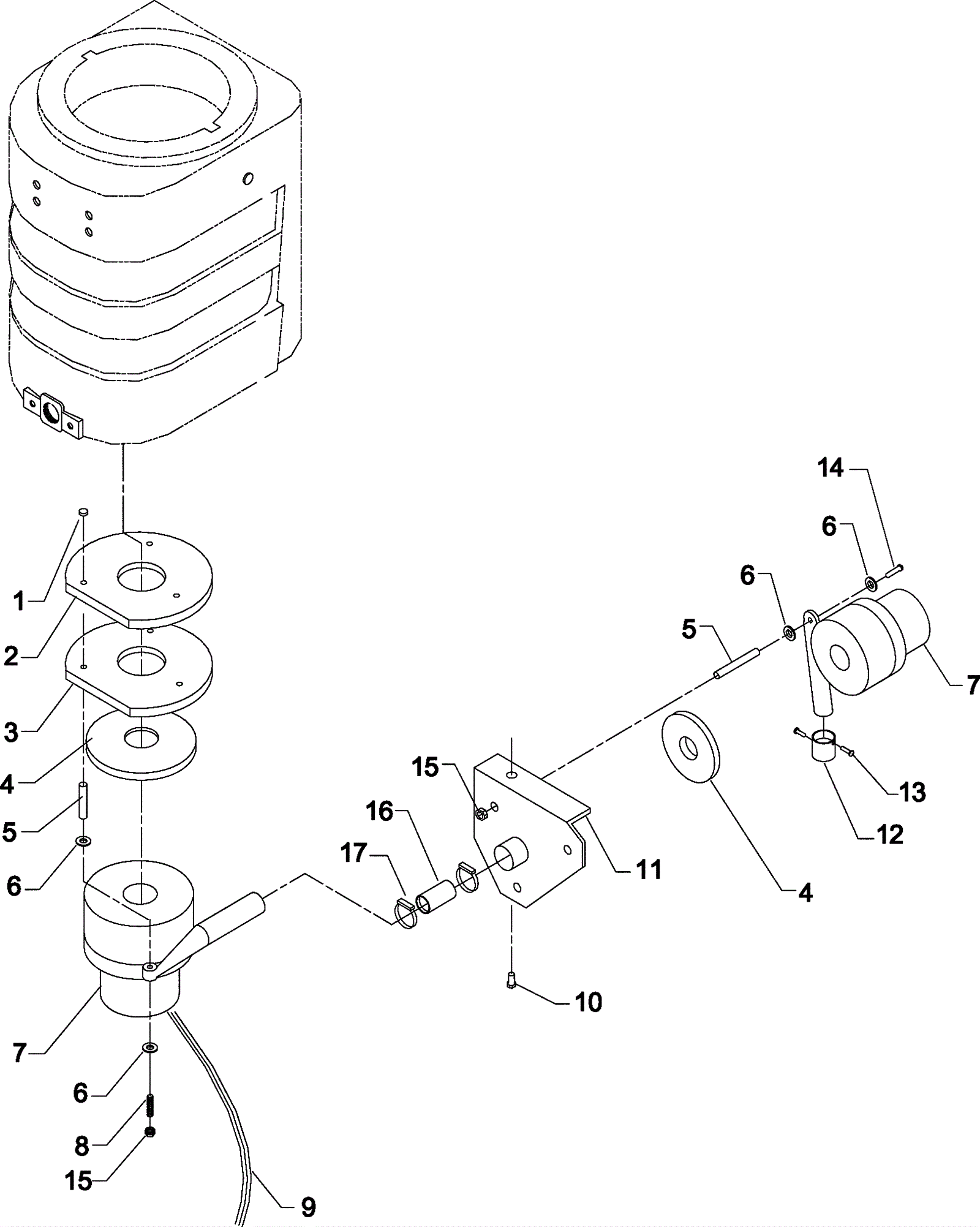

Vacuum Motor Assembly

#PartDescription ReqNotesAvailability
1 273-6879 Nylon spacer 3
2 273-0910 Vacuum bracket gasket 1
3 227-1289 Vacuum plate 1
4 173-5227 Vacuum motor gasket 2
5a 173-8684 Vac spacer 3 1/8 6 (3 stage)
5b 173-5696 Spacer 6 (2 stage)
6 999-0123 Washer 1/4 SAE flat zinc plated 12
7a 173-0691 Vacuum motor 3 stage 115 volts 5.7 inches 2 (3 stage)
7b 373-5038 Carbon brush 4 (for 7a)
7c 173-8685 Brush set 120 volts 1 (for 7a)
7d 273-7684 120V vacuum motor 2 (2 stage)
8a 227-0040 Stud 1/4-20 x 5 in stainless steel 3 (3 stage)
8b 227-1288 Stud 3 (2 stage)
9 227-1305 5/8 inch split flex duct 1
10 173-5475 Screw 1/4-20 x 3/8 hex head cap plated 1
11 227-0041 Rear vacuum plate 1
12 227-1290 Exhaust tube (OBSOLETE) 1
13 227-1283 Rivet (OBSOLETE) 2
14a 273-0249 Screw 1/4-20 x 4 1/4 hex head cap 3 (3 stage)
14b 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated 3 (2 stage)
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
16 227-0042 Exhaust hose 1
17a 997-2007 Hose clamp 2 (3 stage)
17b 173-9328 Exhaust clamp 2 (2 stage)
