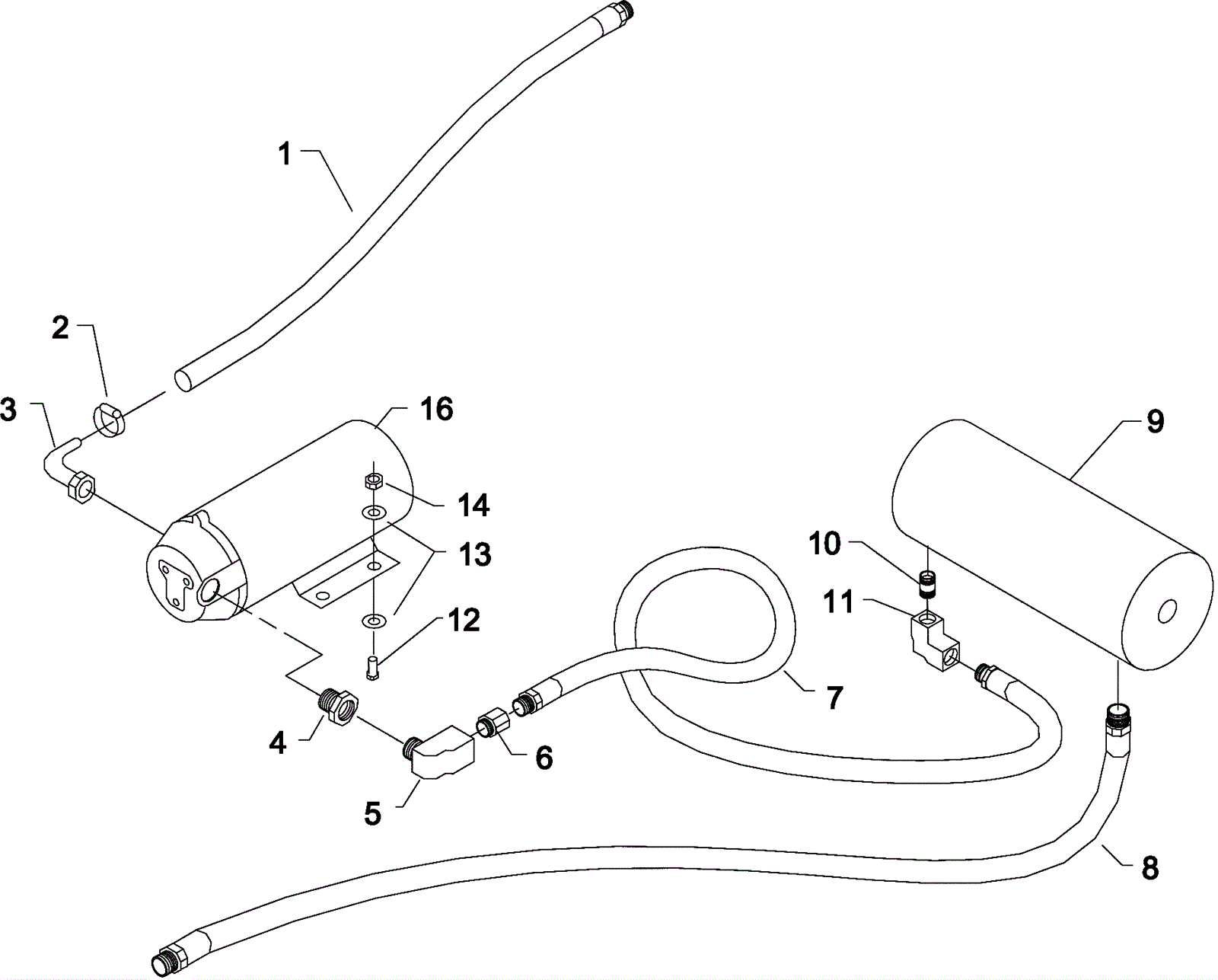

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
227-0035
|
Hose |
1 |
|
|
2 |
173-1821
|
Hose clamp |
1 |
|
|
3 |
173-1572
|
Hosebarb 3/8 x 3/8 inch |
1 |
|
|
4 |
173-0684
|
Bushing |
1 |
(heat models) |
|
5 |
173-2098
|
Street elbow 1/4 |
1 |
(heat models) |
|
6 |
227-1310
|
1/4 inch NPT check valve |
1 |
(heat models) |
|
7 |
227-0036
|
Hose |
1 |
(heat models) |
|
8a |
227-0037
|
Hose |
1 |
(heat models) |
|
8b |
227-0038
|
Hose |
1 |
(no heat models) |
|
9 |
227-0016
|
Complete heater assembly (OBSOLETE) |
1 |
(heat models) |
|
10 |
227-1264
|
1/4 close nipple |
1 |
(heat models) |
|
11 |
227-1258
|
Elbow |
1 |
(heat models) |
|
12 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
2 |
|
|
13 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
14 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
16a |
273-0289
|
Shurflo pump 100PSI |
1 |
|
|
16b |
273-0090
|
Pump 100psi |
1 |
|
|
16c |
273-7186
|
150PSI pump assembly |
1 |
|
|
