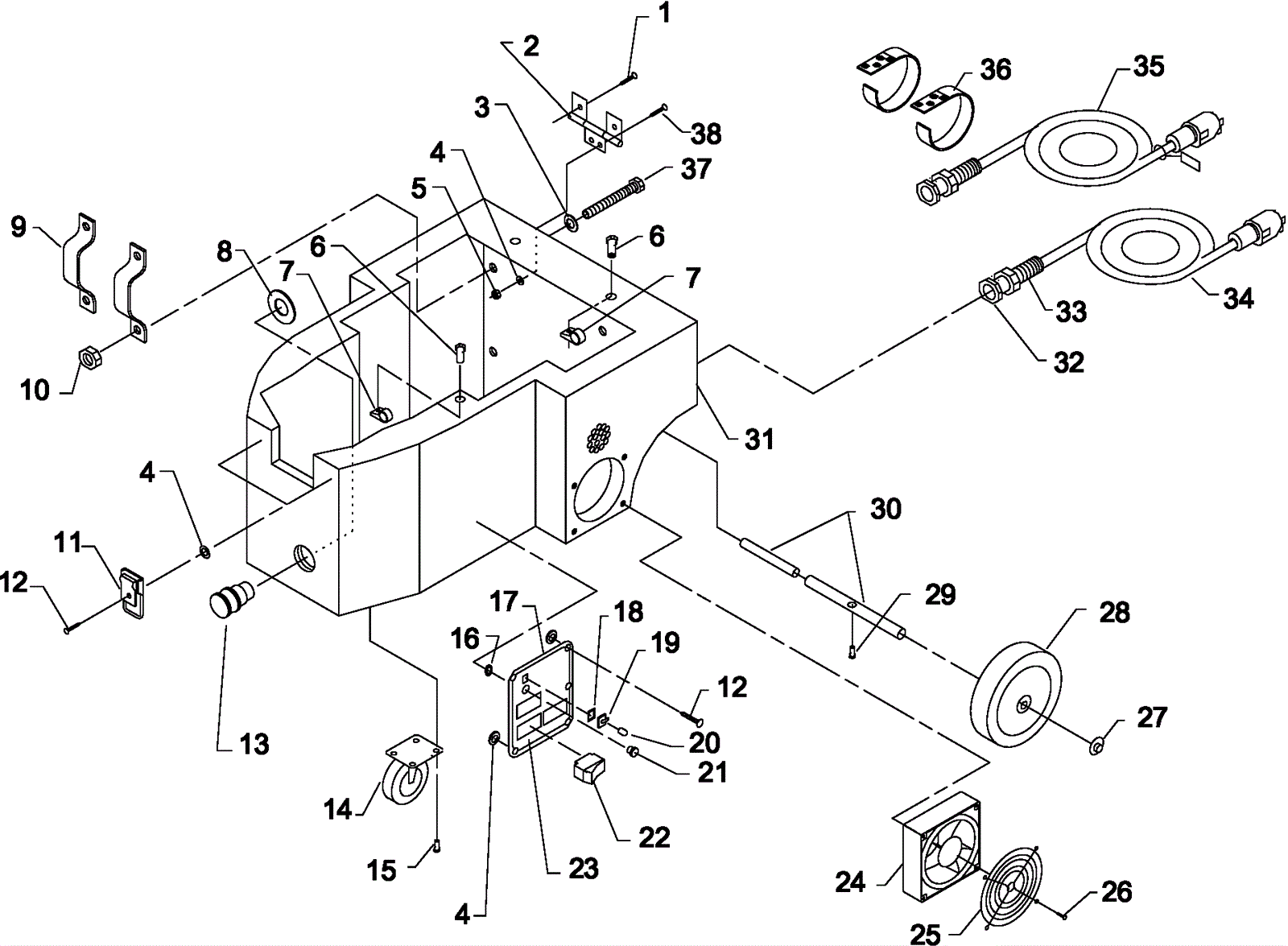

Frame Assembly

#PartDescription ReqNotesAvailability
1 227-1240 Screw 10-32 x 3/8 (OBSOLETE) 4
2 227-1241 Hinge set 1
3 999-0123 Washer 1/4 SAE flat zinc plated 4 (heat models)
4 173-4807 Washer #10 flat pleated (OBSOLETE) 10
5 999-0086 Nut 10-32 nylon insert lock zinc plated 4
6 227-1242 Rivet 3/16 x 3/4 2
7 173-1139 5/8 nylon clamp 2
8 999-1685 Washer 9/16 USS flat 1
9 227-0029 Heater support bracket 2 (heat models)
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4 (heat models)
11 227-1243 Draw pull latch 2
12 173-8658 Closed rivet 3/16 X 1/2 11
13 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1
14 227-1244 4 inch caster (OBSOLETE) 2
15 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 8
16 173-9156 Neon lamp clip 1 (heat models)
17 227-0031 Switch plate 1 (heat models)
18 273-4031 Toggle switch plate 1 (heat models)
19 273-6102 Toggle switch (OBSOLETE) 1 (heat models)
20 273-6103 Switch boot (OBSOLETE) 1 (heat models)
21 173-9167 115Volt brush light assembly 1 (heat models)
22 189-0319 2 position rocker switch 3
23 227-0030 300 PSI switch plate decal 1 (heat models)
24 227-1254 Fan axle 1
25 227-1253 Fan guard 1
26 227-1252 Screw 10 x 3/4 hi-lo black 4
27 173-2667 Nut 1/2 starlock push-on 2
28 173-0347 Wheel kit (pkg of 2) 2
29 999-9072 Bolt 1/4-20 x 1 hex head cap 1
30 227-1246 Axle (OBSOLETE) 1
31a 227-0032 Base with heat 1
31b 227-0033 Base deluxe 1
31c 227-1247 Base 1
32 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 2
33 173-2081 Strain relief 2
34 991-5005 14/3 replacement power cord 50 foot (yellow) 1
35 227-0034 Cord 12/3 sjt x 25 foot (black) 1 (heat models)
36 173-8673 Velcro strap 2
37 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated 4 (heat models)
38 227-1239 Screw 10-32 x 1 4
N/S 227-1294 Decal ninja 3 switch no heat 1
N/S 227-1245 Switch plate 1 (no heat models)
