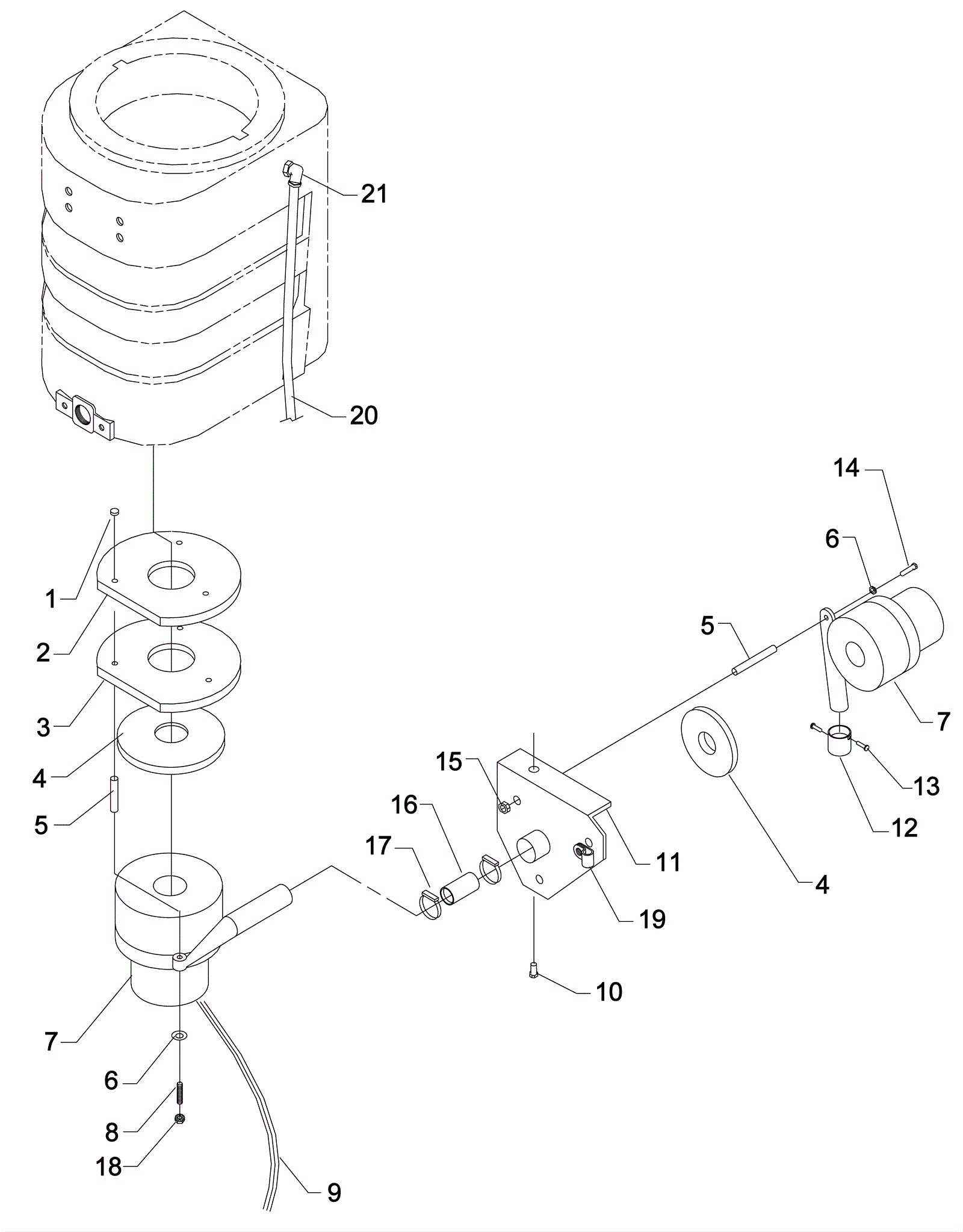

NINJA 200PSI 2 STG H Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6879 Nylon spacer $5.56 3 usually ships 1-5 days
2 273-0910 Vacuum bracket gasket $28.93 1 usually ships 7-19 days
3 227-1289 Vacuum plate $28.27 1 usually ships 3-16 days
4 173-5227 Vacuum motor gasket $6.11 2 ships same day
5 173-5696 Spacer $3.80 6 usually ships 7-19 days
6 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
7a 273-7684 120V vacuum motor $144.10 2 usually ships 7-19 days
7b N/A Not available Call for price 1 (Carbon brushes) usually ships 3-26 days
7c 273-4028 Carbon brush set $10.37 1 usually ships 7-19 days
8 227-1288 Stud $21.51 3 usually ships 3-16 days
9 N/A Not available Call for price 1 (Duct) usually ships 3-26 days
10 173-5475 Screw 1/4-20 x 3/8 hex head cap plated $1.39 1 usually ships 7-19 days
11 227-1287 Rear vacuum plate assembly (OBSOLETE) $70.14 1 usually ships 3-16 days
12 227-1290 Exhaust tube (OBSOLETE) $31.46 1 usually ships 3-16 days
13 227-1283 Rivet (OBSOLETE) $1.14 2 usually ships 3-16 days
14 999-0362 Bolt 1/4-20 x 3 1/4 hex head grade 5 zinc plated $0.99 3 ships same day
15 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
16 227-1286 2 inch exhaust vacuum hose (OBSOLETE) $13.48 1 usually ships 3-16 days
17 273-6930 Hose clamp $3.33 2 usually ships 7-19 days
18 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
19 173-9947 Nylon 3/8 mchd clamp $23.21 1 usually ships 1-5 days
20 227-1291 24 inch hose $19.14 1 usually ships 3-16 days
21 189-4214 90 degree elbow 1/4 x 3/8 inch $62.94 1 usually ships 11-24 days
