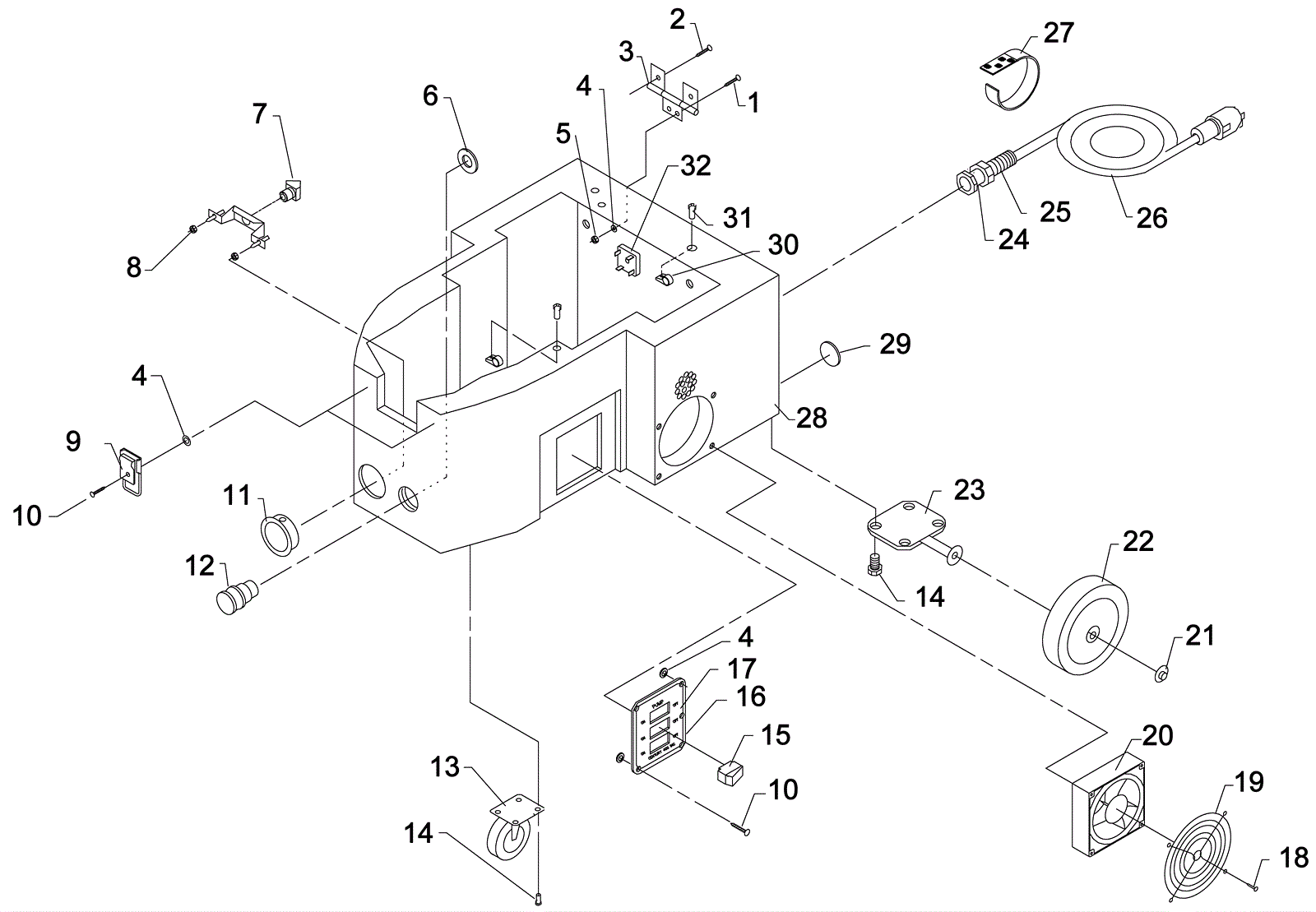

NINJA 200PSI 2 STG H Frame Assembly - 500PSI

#PartDescriptionPriceReqNotesAvailability
1 227-1239 Screw 10-32 x 1 $1.80 4 usually ships 3-16 days
2 227-1240 Screw 10-32 x 3/8 (OBSOLETE) $1.43 4 usually ships 3-16 days
3 227-1241 Hinge set $42.20 1 usually ships 3-16 days
4 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 10 usually ships 7-19 days
5 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
6 999-1685 Washer 9/16 USS flat $0.99 1 usually ships 1-5 days
7 227-1248 Elbow (OBSOLETE) $10.73 1 usually ships 3-16 days
8 227-1249 Nut $0.99 2 usually ships 3-16 days
9 227-1243 Draw pull latch $13.31 2 usually ships 3-16 days
10 173-8658 Closed rivet 3/16 X 1/2 $0.99 11 usually ships 7-19 days
11 227-1250 1000PSI pressure gauge $112.75 1 usually ships 3-16 days
12 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) $21.40 1 ships same day
13 227-1251 5 inch caster wheel $42.97 2 usually ships 3-16 days
14 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 8 ships same day
15 189-0319 2 position rocker switch $59.42 3 usually ships 1-5 days
16 227-1245 Switch plate $42.69 1 usually ships 3-16 days
17 N/A Not available Call for price 1 (Decal) usually ships 3-26 days
18 227-1252 Screw 10 x 3/4 hi-lo black $1.85 4 usually ships 3-16 days
19 227-1253 Fan guard $8.64 1 usually ships 3-16 days
20 227-1254 Fan axle $81.95 1 usually ships 3-16 days
21 173-2667 Nut 1/2 starlock push-on $10.62 2 usually ships 1-5 days
22 N/A Not available Call for price 2 (12 inch wheel) usually ships 3-26 days
23 227-1255 Axle $75.35 2 usually ships 3-16 days
24 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 1 usually ships 7-19 days
25 173-2081 Strain relief $16.39 1 usually ships 7-19 days
27 173-8673 Velcro strap $5.50 1 usually ships 1-5 days
28 N/A Not available Call for price 1 (Base) usually ships 3-26 days
29 N/A Not available Call for price 1 (1 inch plug cap) usually ships 3-26 days
30 173-1139 5/8 nylon clamp $1.52 2 usually ships 1-5 days
31 227-1242 Rivet 3/16 x 3/4 $2.51 2 usually ships 3-16 days
32 227-1238 Bridge rectifier $43.89 1 usually ships 3-16 days
