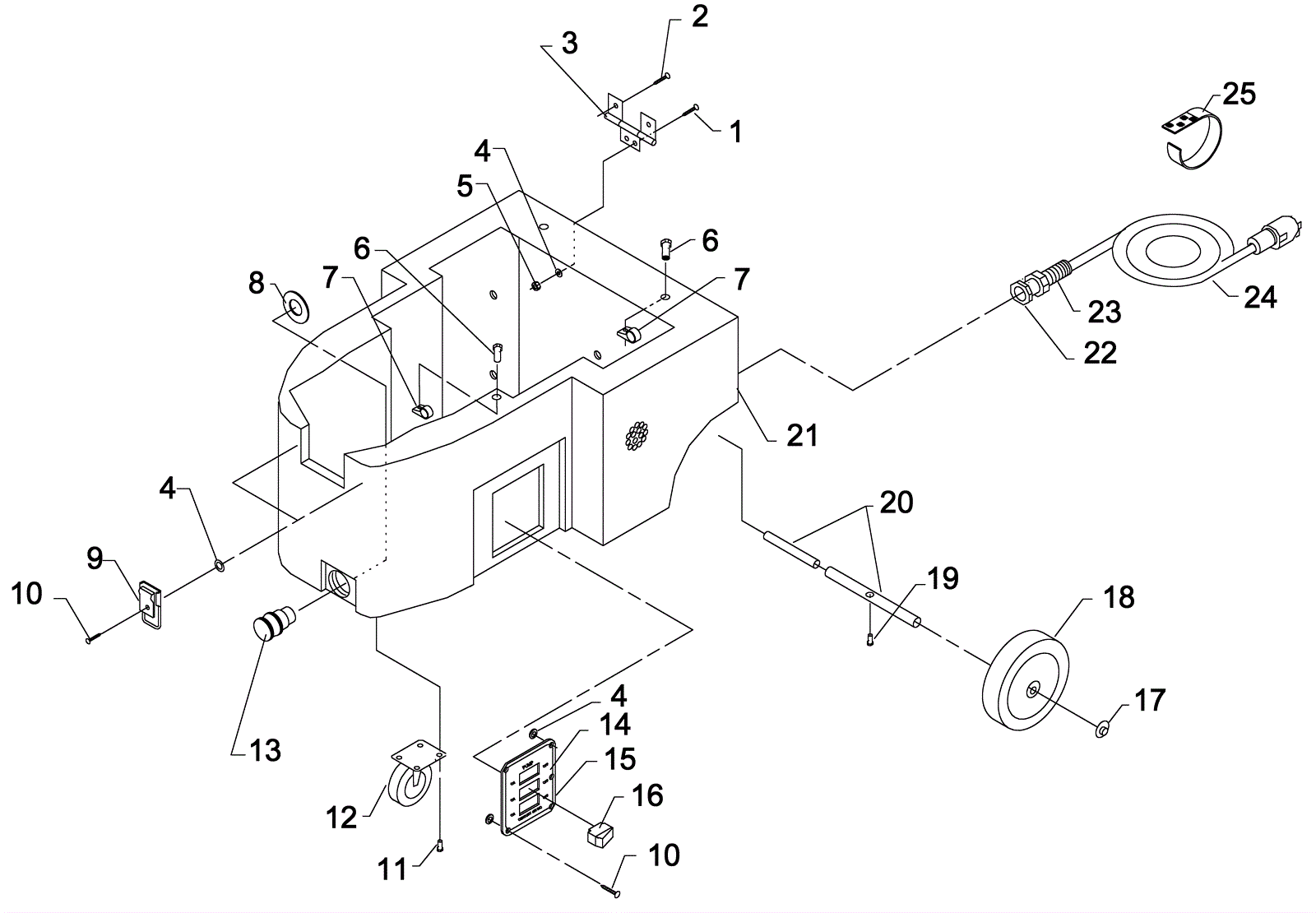

NINJA 200PSI 2 STG H Frame Assembly - 200PSI

#PartDescriptionPriceReqNotesAvailability
1 227-1239 Screw 10-32 x 1 $1.80 4 usually ships 3-16 days
2 227-1240 Screw 10-32 x 3/8 (OBSOLETE) $1.43 4 usually ships 3-16 days
3 227-1241 Hinge set $42.20 1 usually ships 3-16 days
4 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 10 usually ships 7-19 days
5 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
6 227-1242 Rivet 3/16 x 3/4 $2.51 2 usually ships 3-16 days
7 173-1139 5/8 nylon clamp $1.52 2 usually ships 1-5 days
8 999-1685 Washer 9/16 USS flat $0.99 1 usually ships 1-5 days
9 227-1243 Draw pull latch $13.31 2 usually ships 3-16 days
10 173-8658 Closed rivet 3/16 X 1/2 $0.99 11 usually ships 7-19 days
11 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 8 ships same day
12 227-1244 4 inch caster $31.46 2 usually ships 3-16 days
13 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) $21.40 1 ships same day
14 N/A Not available Call for price 1 (Label) usually ships 3-26 days
15 227-1245 Switch plate $42.69 1 usually ships 3-16 days
16 189-0319 2 position rocker switch $59.42 3 usually ships 1-5 days
17 173-2667 Nut 1/2 starlock push-on $10.62 2 usually ships 1-5 days
18 173-0347 Wheel kit (pkg of 2) $108.35 2 usually ships 7-19 days
19 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 1 ships same day
20 227-1246 Axle (OBSOLETE) $71.37 1 usually ships 3-16 days
21 227-1247 Base $383.98 1 usually ships 3-16 days
22 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) $0.99 1 usually ships 7-19 days
23 173-2081 Strain relief $16.39 1 usually ships 7-19 days
25 173-8673 Velcro strap $5.50 1 usually ships 1-5 days
