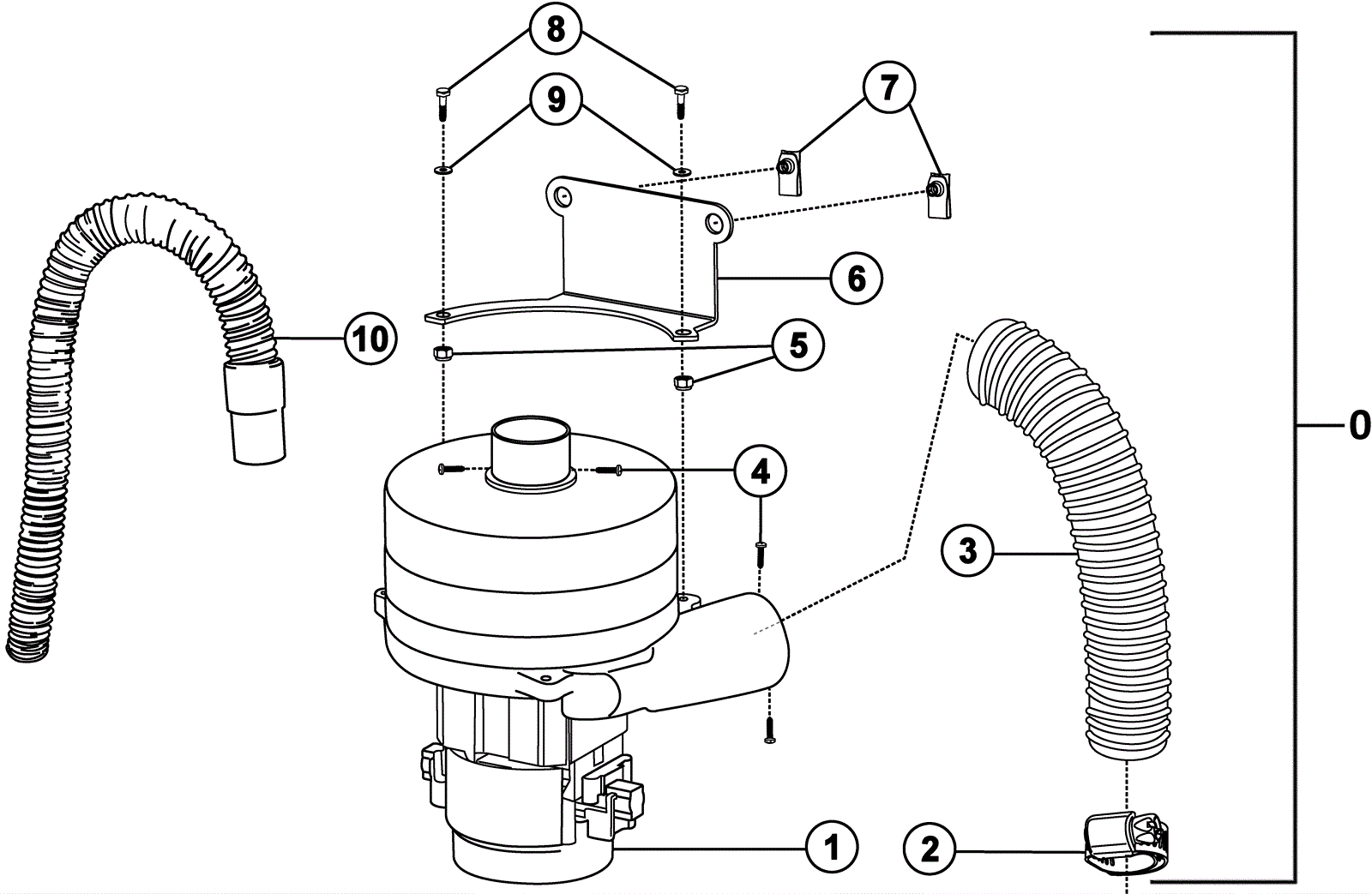

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-1129
|
36V vacuum motor assembly |
1 |
|
|
1a |
225-0621
|
120V vacuum motor high efficiency |
1 |
(corded) |
|
1b |
225-1142
|
36V 2 stage vacuum motor |
1 |
(battery) |
|
1c |
991-1917
|
120V 2 stage vacuum motor tangential |
1 |
(corded)(NON-OEM) |
|
2 |
225-0127
|
Hose clamp |
1 |
|
|
3 |
225-1110
|
19 inch hose |
1 |
|
|
4 |
225-0012
|
Screw #8 self drilling |
4 |
|
|
5 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
6 |
225-1111
|
Bracket |
1 |
|
|
7 |
225-0107
|
5/16 u-nut |
2 |
|
|
8 |
225-1010
|
Screw |
2 |
|
|
9 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
10 |
225-0649
|
Vacuum motor hose with short cuff |
1 |
|
|
