| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

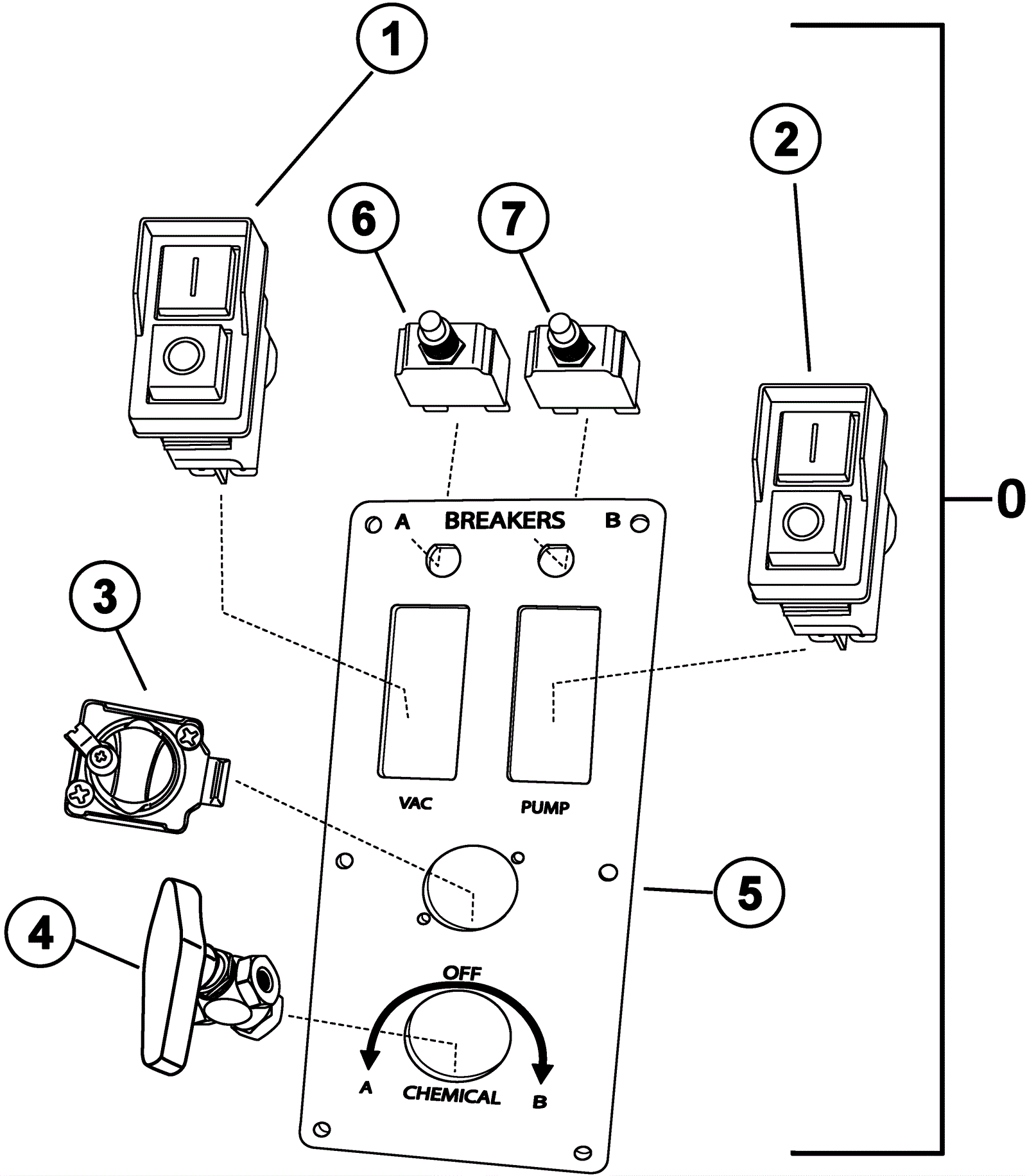

225-1126
|
Switch panel assembly for single chemical battery units |
1 |
|
|
1 |
225-1135
|
25.1amp heavy duty electomagnetic switch |
1 |
|
|
2 |
225-1135
|
25.1amp heavy duty electomagnetic switch |
1 |
|
|
3 |
225-1136
|
Receptacle |
1 |
|
|
4 |
225-1137
|
3 way valve, COMPLETE ASSEMBLY |
1 |
|
|
5 |
225-1138
|
Switch panel 2 switch 2 breaker 1 outlet |
1 |
|
|
6 |
225-1139
|
20amp vacuum circuit breaker button |
1 |
|
|
7 |
225-1140
|
3amp pump circuit breaker button |
1 |
|
|
N/S |
225-2005
|
36VDC 20A male plug (metal) |
1 |
|
|
