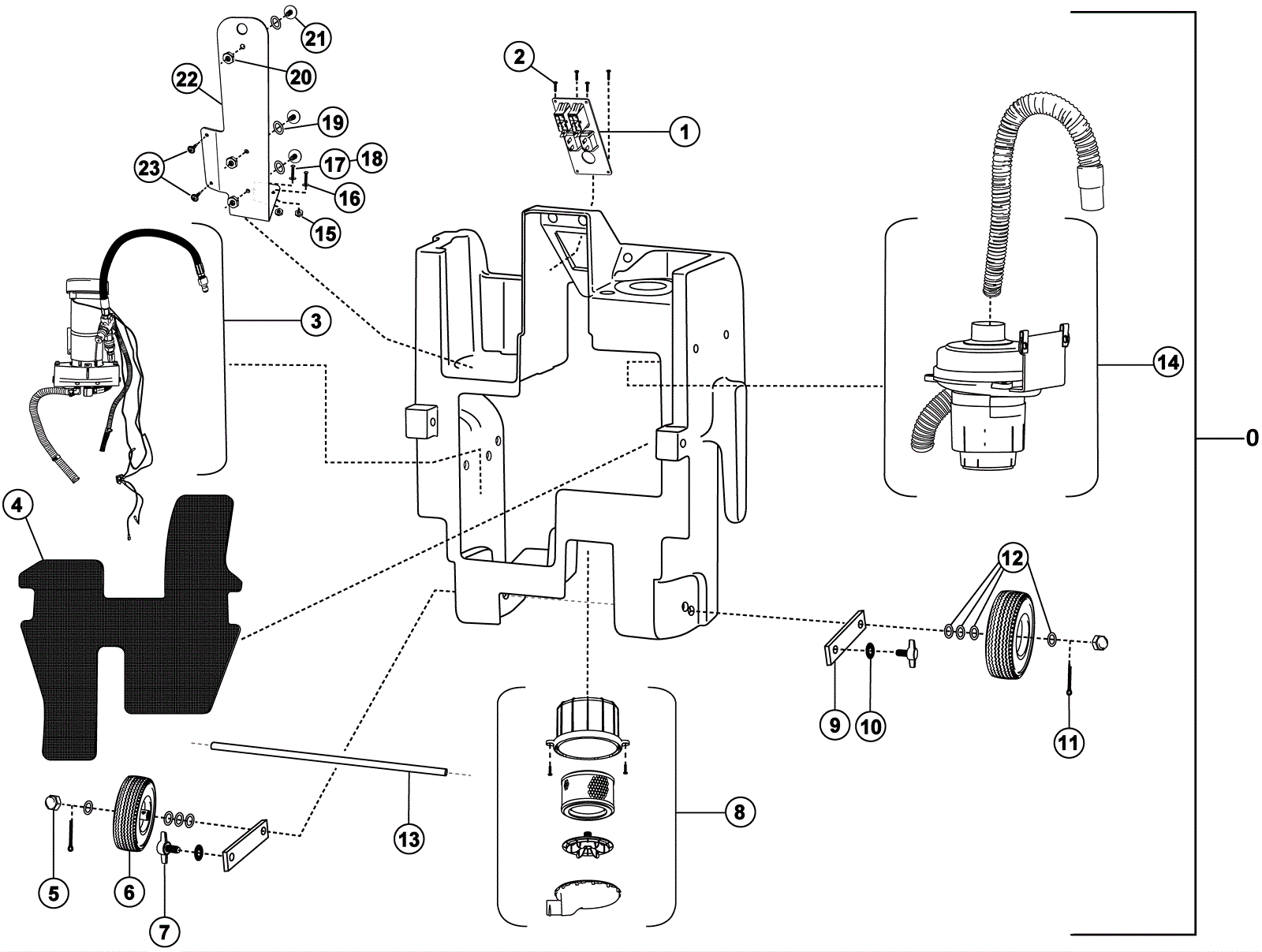

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
225-2036
|
REPLACEMENT KV17WALBA2 BLACKBOX BATT |
1 |
(includes 1-23) |
|
1 |
225-1126
|
Switch panel assembly for single chemical battery units |
1 |
|
|
2 |
225-0145
|
Screw 3/4 inch stainless steel |
1 |
|
|
3a |
225-1127
|
Pump assembly complete |
1 |
|
|
3b |
225-2081
|
PUMP ASSEM COMPLETE FOR CORDED CC W/O FILTER ETL |
1 |
|
|
4 |
225-1128
|
Splash plate |
1 |
|
|
5 |
225-0157
|
Nut 1/2 push cap |
1 |
|
|
6 |
225-0379
|
8 inch wheel |
1 |
|
|
7 |
225-0330
|
Thumb screw |
1 |
|
|
8 |
225-0670
|
HEPA housing assembly |
1 |
|
|
9 |
225-0381
|
Axle strap |
1 |
|
|
10 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
|
|
11 |
225-0235
|
Cotter pin |
1 |
|
|
12 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
13 |
225-0378
|
Axle 20 1/2 x 1/2 inch |
1 |
|
|
14 |
225-1129
|
36V vacuum motor assembly |
1 |
|
|
15 |
225-0148
|
Nuts |
1 |
|
|
16 |
999-0998
|
Washer #10 flat stainless steel |
1 |
|
|
17 |
225-1130
|
Screw 10-24 x 1 flat head stainless steel |
1 |
|
|
18 |
225-1131
|
Screw #10 18-8 stainless steel |
1 |
|
|
19 |
225-1132
|
1/8 inch rivet stainless steel |
1 |
|
|
20 |
225-1066
|
Nut |
1 |
|
|
21 |
225-1133
|
Screw #6-32 x 3/8 |
1 |
|
|
22 |
225-1134
|
NTC power pack bracket |
1 |
|
|
23 |
225-0012
|
Screw #8 self drilling |
2 |
|
|
